Wichard Marine Captive Pin D Shackle - Diameter 4mm - 5/32"

Wichard Marine Captive Pin D Shackle - Diameter 4mm - 5/32" is organized for deck hardware & rigging shoppers who need a clear, professional marine parts buying experience.

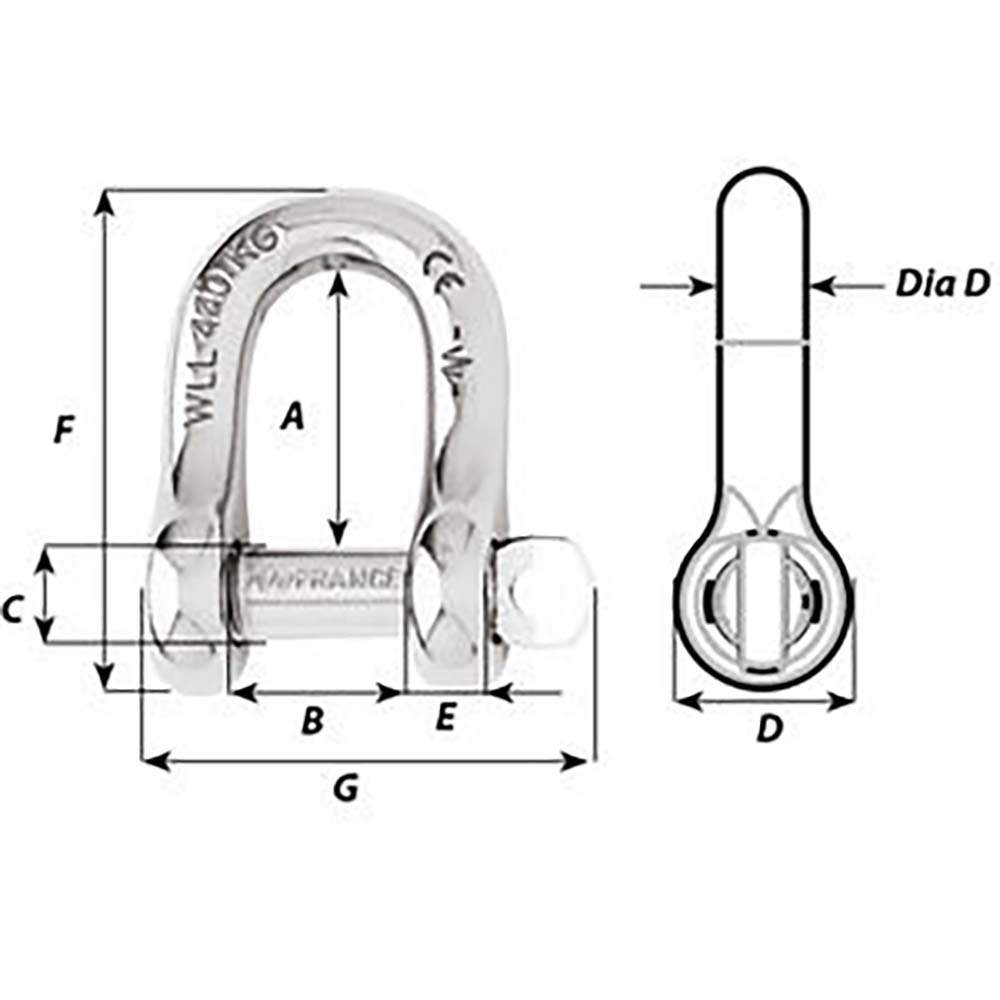

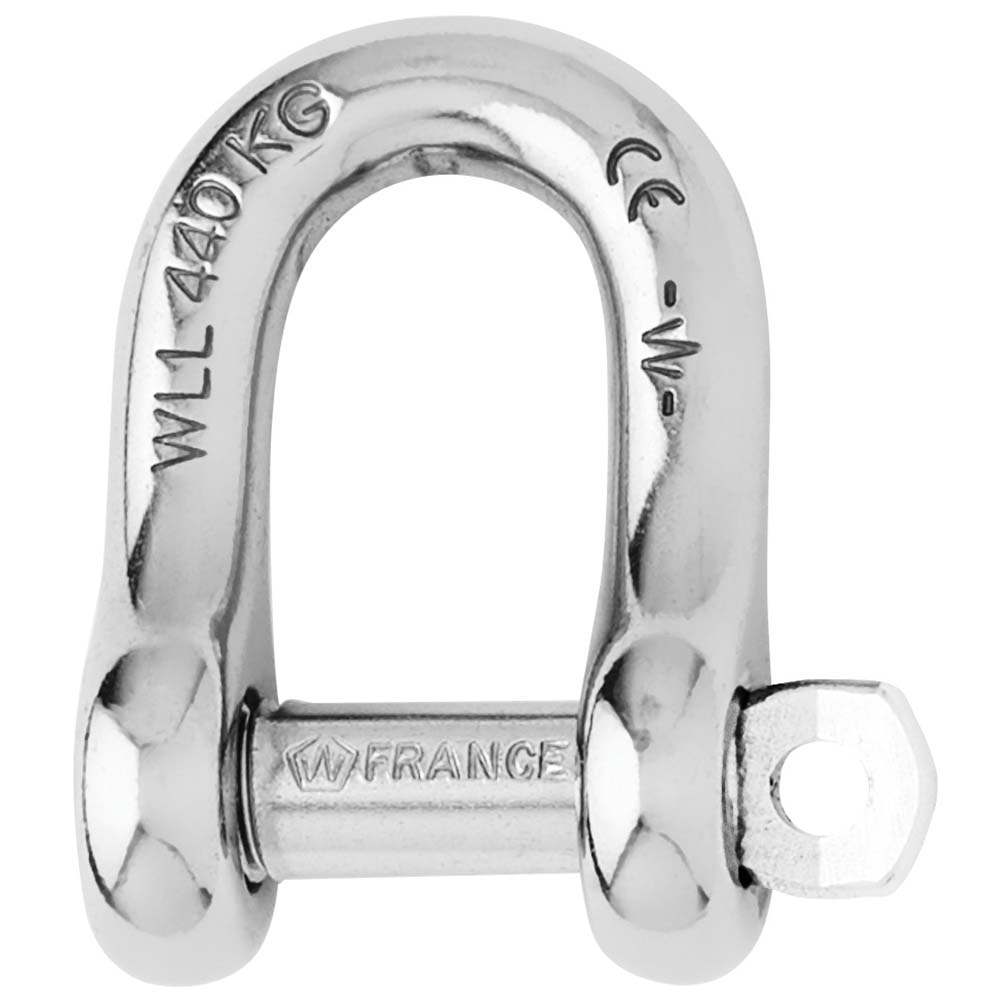

Captive Pin D Shackle - Diameter 4mm - 5/32" Features: Captive pin "D" shackle forged in grade 316L stainless steel The pin is connected to the body at all times even when opened The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads Applications: Standard applications of shackle Attachment applications: blocks, head… Specifications: Materials 316 stainless steel grade Working load (lb) 700 WLL (lb) 440 Breaking load (lb) 2200 Weight (lb) 0.02 Dimensions (see 2nd image): A (inch) 33/64" B (inch) 5/16" C (inch) 13/64" D (inch) 23/64" D diameter (inch) 5/32" E (inch) 5/32" F (inch) 15/16" G (inch) 55/64"

Fitment & Product Details

• Brand / Manufacturer: Wichard Marine, Wichard
• Material: stainless steel

• Search-optimized by brand, system, part type, and fitment cues.
• Verify compatibility with your original part number, engine model, and application before ordering.
• Built for boat owners, e-commerce shoppers, and professional marine service teams.
