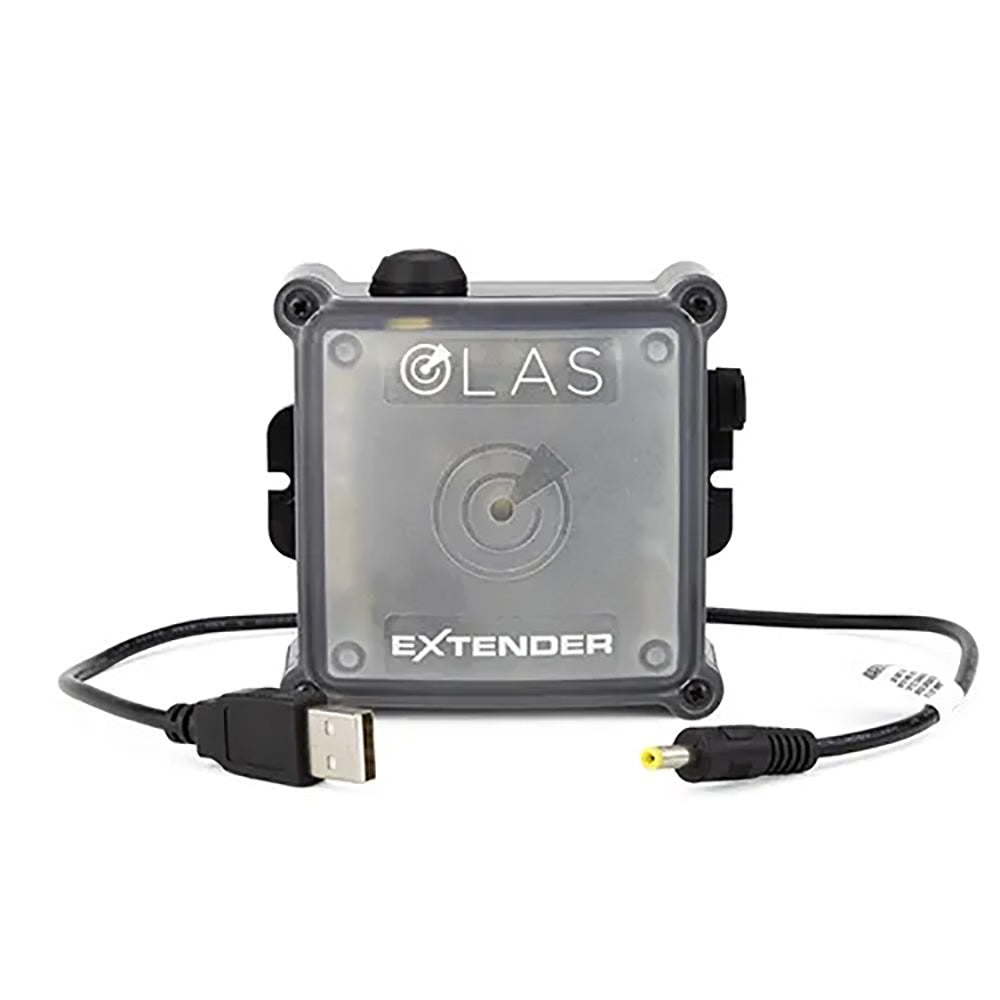

ACR Electronics OLAS Exposure Series Extender – Wireless Range Extender for MOB and Alarm Systems up to 100 ft

OLAS Exposure Series Extender

The OLAS Extender is a compact, portable, wireless repeater for the OLAS N2K NMEA 2000 MOB Alarm and Wireless Kill Switch, the OLAS Guardian MOB Alarm and Wireless Kill Switch, and the OLAS Core MOB alarm system. While the OLAS Tag, T2, and OLAS Float-On used alone with the mobile app allow for coverage on vessels up to 40ft, the N2K, Guardian, and Core allow for coverage on vessels up to 50ft, the Extender can be used with the Core, Guardian, or N2K to increase coverage for vessels up to 100ft in length.

Extender Advantages

Quick, easy setup with no hard wiring required

• Switch an N2K, Guardian, or Core into pairing mode, and the Extender automatically connects and remains paired.
• Use the LED indicator on the switch to position the Extender in the optimum position on the vessel. Using the rechargeable battery, the Extender can be walked around the vessel, and as the LED on the switch turns to solid red, the connection has been broken. Return to a position where the Extender is reconnected and secure it in this location.

Portable and low power (5V USB)

• The Extender can operate with its internal rechargeable battery for up to 80 hours or as a permanent solution, it can be attached to a 5V power supply with its USB lead.

Automatic transmitter connection

• Switch an N2K, Guardian, or Core into pairing mode, and the Extender automatically connects and remains paired.

Extends OLAS System

• Adds up to 50ft extra range to the N2K, Guardian, and Core base systems. Note: One Extender extends range by 25ft and a total of 2 Extenders can be utilized to extend the range of the system by a total of 50 ft.

Features:

• Extend the range of the OLAS MOB System up to 100 ft. vessels
• Waterproof (IP67)

Specifications:

• Size: 3.6 (H) x 3.5 (L) x 1.5 (W)/92 (H) x 90 (L) x 38 (W) mm
• Weight: 4.06 ounces (115 g)
• Color: Black and Clear
• Operation: Switch OLAS N2K, GUARDIAN, or CORE into paring mode and switch OLAS EXTENDER on by pressing the button once
• Power / Current: 5V / 13-17mA
• Recharge Time: 3 hours
• Approvals: FCC, RED, CE, RoHS 2.0
• Range: For use with vessels up to 100 feet (requires the use of 2 Extenders)
• Buoyant: No
• Waterproof: Yes (IP67)
• Housing Material: ABS
• Warranty: 2 Years

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Enhance the coverage and reliability of your OLAS MOB alarm and wireless kill switch systems with the ACR Electronics OLAS Exposure Series Extender. Designed for seamless integration with the OLAS N2K, Guardian, and Core systems, this portable wireless repeater extends the effective range up to 100 feet, ensuring comprehensive coverage on vessels up to 100 feet long. Its compact, lightweight design makes it easy to install and operate without hard wiring, allowing for quick setup on any boat. The Extender automatically pairs when switched into pairing mode, providing a hassle-free experience with minimal configuration. Use the LED indicator on the device to find the optimal placement on your vessel, walking around with the rechargeable battery to identify the spot with the strongest connection. When the LED turns solid red, you know the connection has been interrupted, enabling you to reposition the Extender for optimal performance. The device operates on a low power consumption of only 13-17mA at 5V, with a rechargeable battery life of up to 80 hours or an option to connect to a 5V USB power supply for continuous use. The Extender's waterproof (IP67) housing ensures durability in harsh marine environments, making it suitable for outdoor use. Its compact size and water-resistant design mean it can be easily placed on different locations around your vessel, providing flexible coverage for safety and security. Supporting multiple Extenders (up to two for a total of 50 feet additional range each), this device is an essential upgrade for boat owners seeking to improve MOB alert coverage and system reliability. Its rugged ABS housing, FCC, CE, RoHS 2.0, and RED approvals guarantee compliance and safety. The Extender's simple operation, combined with its ability to extend your safety system's range, provides peace of mind during marine adventures. Please note that this product may expose users to chemicals known to cause reproductive harm, as disclosed by Prop 65 regulations. For more information, visit P65Warnings.ca.gov. This product is not returnable to the original point of purchase; please contact ACR Electronics directly for support or concerns.

Features:

• Extends the OLAS MOB System range up to 100 ft on vessels

• Wireless, portable design with quick setup and no hard wiring required

• Automatic pairing with OLAS N2K, Guardian, or Core systems

• LED indicator assists in optimal placement on the vessel

• Operates on internal rechargeable battery or 5V USB power

• Waterproof (IP67) housing suitable for marine environments

• Supports use of up to two Extenders to extend coverage by an additional 50 ft

• Compact size and lightweight design for flexible placement

• Low power consumption for extended battery life

• Meets FCC, CE, RoHS 2.0, and RED standards for safety and compliance
