Actisense A2K-TDC-0M5 NMEA 2000 Micro Cable Assembly - 0.5 meters

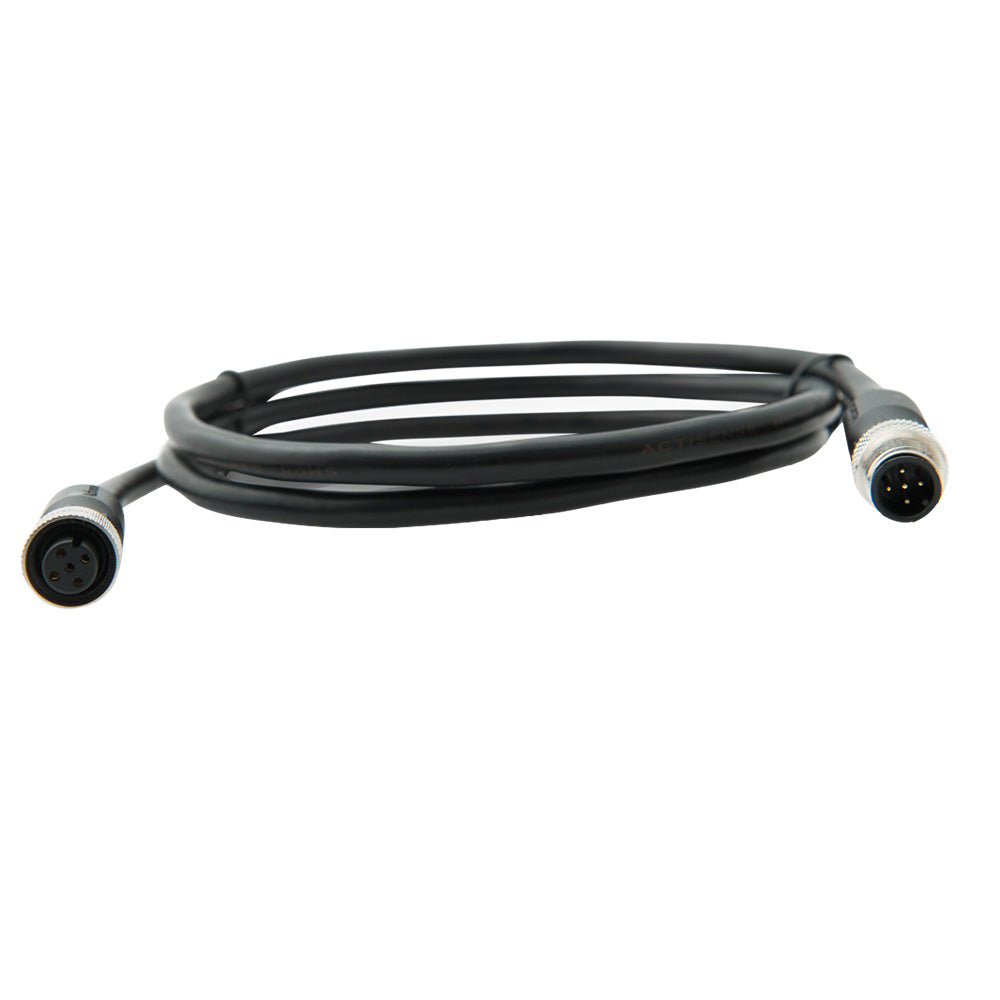

A2K-TDC-0M5 NMEA2000 Micro Cable Assembly - 0.5M

Available in various lengths, the cable assemblies can be used as either a drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.

Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.

NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.

NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.

The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

• Rated Current - 3A
• Rated Voltage - 60VDC
• Male Contact - Brass, gold-plated
• Female Contact - Phosphor bronze, gold plated
• Contact Carrier - PBT, black
• Contact Polarization - Standard M12 -A- polarization
• Mating Thread - M12
• Screw Cap - Brass, nickel plated
• O-Ring Seal - Rubber, black
• Housing - PVC, black
• Power Pair - 22 AWG (19-strand tinned copper)
• Data Pair - 24 AWG (19-strand tinned copper)
• Drain - 22 AWG (19-strand tinned copper)
• Braid - 37 AWG (tinned copper)
• Jacket Material - 0.8mm Nom. PVC, black
• Jacket Outer Diameter - 6.85mm 0.254mm
• Weight - 67g
• Protection - IP67 (when mated)
• Operating Temperature - -20C to +70C
• Storage Temperature - -40C to +85C

The Actisense A2K-TDC-0M5 NMEA 2000 Micro Cable Assembly offers a reliable and efficient solution for marine electronics connectivity. Designed for extending or creating NMEA 2000 backbone networks, this 0.5-meter cable is suitable for various marine data and power applications. Its waterproof construction and high-quality materials ensure durability and consistent performance even in harsh environments. Whether used as a drop cable or to extend your existing network, this assembly supports seamless communication between marine devices.
Constructed with five internal wires—power, ground, two signal lines, and a drain wire—this cable effectively shields against external Radio Frequency Interference (RFI) to maintain signal integrity. The drain wire connects to the cable shield, minimizing RFI emission and protecting signal quality. Rated for a maximum current of 3A and voltage of 60VDC, it is ideal for marine electronics systems that demand reliability and safety. The male brass, gold-plated contacts and phosphor bronze, gold-plated female contacts ensure excellent conductivity and corrosion resistance.
The cable features a robust black PVC housing with an IP67 protection rating when mated, making it resistant to water and dust ingress. The outer diameter of approximately 0.27 inches ensures a compact and flexible installation. Designed with a standard M12 polarization and threading, this assembly guarantees a secure connection. The cable’s jacket of high-quality PVC and its tinned copper conductors for power, data, and drain lines provide longevity and optimal performance in temperatures ranging from -20°C to +70°C, with storage capabilities up to -40°C to +85°C.
Ideal for marine navigation, communication, and sensor networks, the Actisense A2K-TDC-0M5 Micro Cable Assembly ensures quick installation and dependable operation. It is crafted with premium UL-certified cables and components, reinforcing its quality and safety standards. Whether you need to connect devices in a compact space or extend your backbone network, this cable is a dependable choice for marine electronics professionals and enthusiasts alike.

Features:

• Rated Current: 3A for reliable power transmission

• Rated Voltage: 60VDC suitable for marine systems

• Male Contact: Brass, gold-plated for corrosion resistance

• Female Contact: Phosphor bronze, gold plated for durability

• Contact Carrier: PBT, black for strength and insulation

• Contact Polarization: Standard M12-A for secure connection

• Mating Thread: M12 ensures a tight fit and stability

• Screw Cap: Brass, nickel plated for corrosion protection

• O-Ring Seal: Rubber, black for waterproof performance

• Housing: Black PVC for durability and weather resistance

• Power Pair: 22 AWG, 19-strand tinned copper for power delivery

• Data Pair: 24 AWG, 19-strand tinned copper for data signals

• Drain: 22 AWG, 19-strand tinned copper for shielding

• Braid: 37 AWG, tinned copper for electromagnetic shielding

• Jacket Material: PVC, black, with 0.8mm thickness

• Outer Diameter: Approximately 0.27 inches for flexible installation

• Protection: IP67 when mated for water and dust resistance

• Temperature Range: -20°C to +70°C for operational safety

• Storage Temperature: -40°C to +85°C for extended storage
