• Actisense N2K Micro 4 Way T-Piece
1 1

Actisense

90173

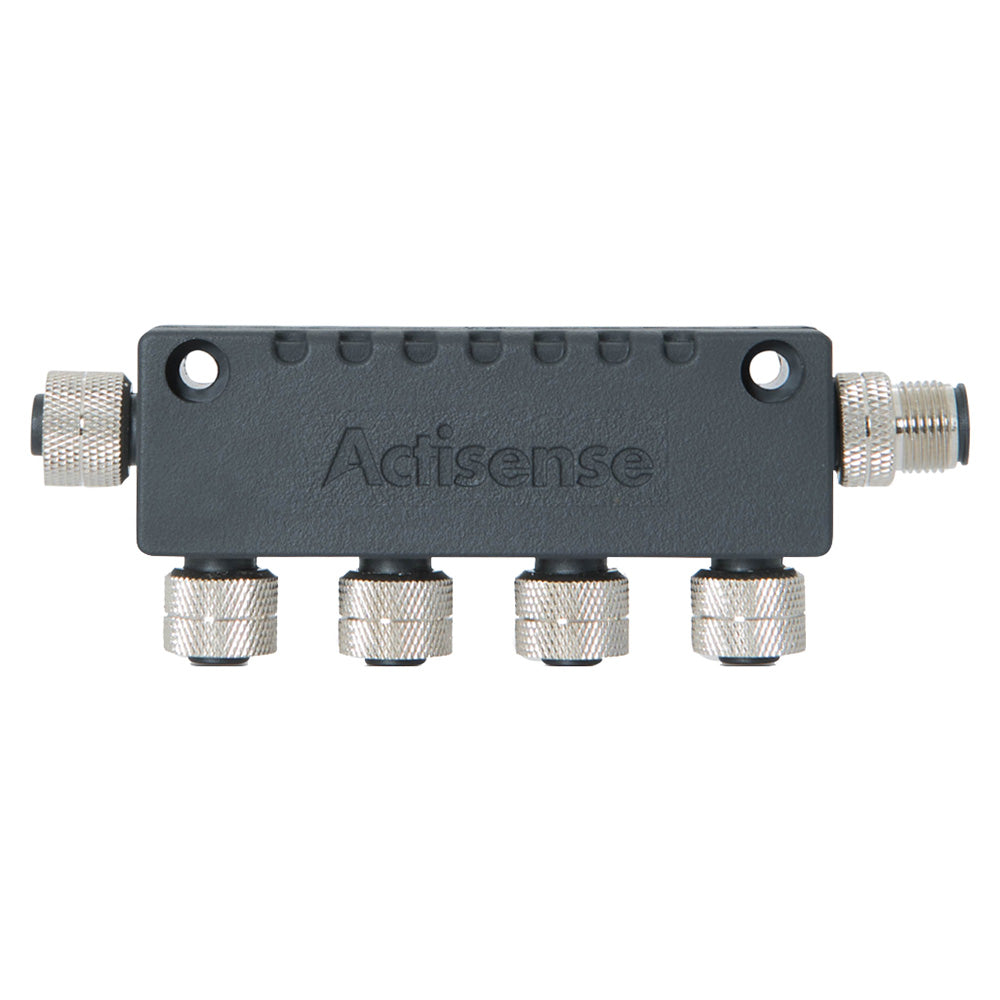

Actisense N2K Micro 4 Way T-Piece

Actisense N2K Micro 4 Way T-Piece

$106.20 USD
$106.20 USD
Sale Sold out
Shipping calculated at checkout.

N2K Micro 4 Way T-Piece

The 4 Way T-Piece from Actisense saves you time, space and money on your NMEA 2000 installation.

The Actisense 4 Way T-Piece is for use where multiple drops or ports are required from the NMEA 2000 backbone. Its as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces and costs less than four.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Features:

  • NMEA 2000 Approved
  • RoHS Compliant

Technical Specifications:

Electrical

  • Rated Current - 4A
  • Rated Voltage - 60V DC

Mechanical

  • Male Contact - Brass, gold plated
  • Female Contact - Phosphor bronze, gold plated
  • Contact Carrier - PA66 (30% Glass filled), black
  • Contact Polarization - Standard M12 -A- polarization
  • Mating Thread - M12
  • Screw Cap - Brass, nickel plated
  • O-Ring Seal - Rubber, Black
  • Housing - TPU, flame retardant to UL94V-0, Halogen Free
  • Internal Housing Shield - Copper Foil
  • Weight - 105g

Approvals and Certifications

  • Protection - IP67 (when mated)
  • Operating Temperature - -20C to +70C
  • Storage Temperature - -40C to +85C
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Truck Freight: No
Oversized: No
