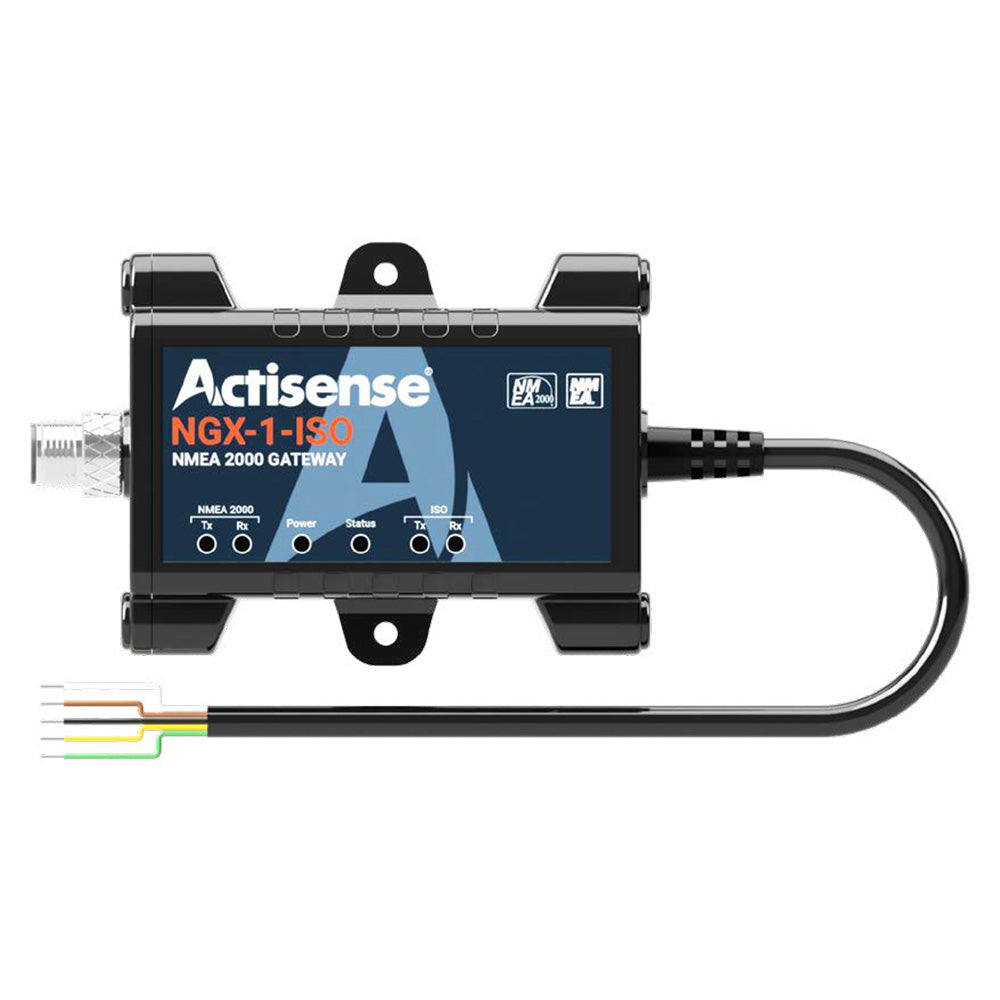

Actisense NGX-1 ISO 183 to NMEA 2000 Gateway with PC Interface and Data Conversion

0183 to N2K Gateway with PC Interface, ISO Connection

Intelligent Gateway technology enables PC interfacing and NMEA data conversion

The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.

Configure the NGX-1 to operate as an NMEA 2000 <> PC interface, or as a bi-directional NMEA 0183 <> NMEA 2000 conversion gateway.

Features:

• View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard.
• View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway.
• Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183).
• Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1.
• Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs.
• Vital NMEA 2000 diagnostic tool
• OPTO-isolated input and ISO-Drive output for safely interfacing with RS232 or RS422
• Up to 230,400 baud data transfer rate
• Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
• Supports Fast Heading at 10Hz
• Multiple diagnostic LEDs
• Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus
• Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus
  • Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided
  • Configure and flash-update Actisense products on the bus
  • Upgrade NMEA 0183 equipment to NMEA 2000
  • Allow NMEA 0183 devices to receive vital NMEA 2000 data
  • Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
  • Reliable, renowned bi-directional conversion engine
  • Supports a wide range of conversions including AIS
  • Easily configurable using Actisense Toolkit

Technical Specifications

Power Supply

• Supply Voltage (NMEA 2000 Port) - 9 to 30V DC
• Supply Current (NMEA 2000 Port) - 62mA @ 9V DC
• Load Equivalent Number (LEN) - 2

NMEA 2000 Port

• Speed / Baud Rate - 250kbps
• Connectivity - M12 Male (A coded)

ISO Port

• Compatibility - Full NMEA 0183, RS232 RS422 compatibility. RS485 Listener compatible
• Speed/Baud Rate - 4800 to 230400 Baud
• Output Voltage Drive - >= 2.1V (differential) into 100
• Output Current Drive - 20mA max.
• Output Protection - Short circuit and ESD
• Input Voltage Tolerance - -15V to +15V continuous -35V to +35V short term (< 1 second)
• Input Protection - Current limited and overdrive protection to 40VDC
• Connectivity - 5mm stripped and tinned wire
• Cable Length - 0.75m

Isolation

• NMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000V
• NMEA 2000 Port to USB Port - Galvanic Isolation, Hi-Pot tested to 1000V

Mechanical

• Housing Material Body - Flame retardant Polycarbonate
• Housing Material End Caps - Flame retardant PBT
• Weight - 113g

Approvals and Certifications

The Actisense NGX-1 is a versatile and intelligent gateway designed to streamline your marine data management by seamlessly converting and interfacing NMEA 0183 and NMEA 2000 networks. Combining the features of previous models into a cost-effective, multi-function device, the NGX-1 offers reliable bi-directional data conversion and extensive network visibility. Whether you need to connect legacy NMEA 0183 instruments or integrate NMEA 2000 networks with your PC applications, this gateway provides a flexible solution for modern marine navigation and instrumentation systems. Its robust design incorporates ISO isolation on all ports, ensuring safe and interference-free operation in demanding marine environments, while supporting data transfer rates up to 230,400 baud for rapid, real-time data exchange.

Features:

• NMEA 2000 Network Data Viewing: Supports all PGNs in the NMEA 2000 standard, enabling comprehensive monitoring of your vessel's data via Actisense NMEA Reader.

• Extensive Data Conversion Library: Converts NMEA 0183 data to NMEA 2000 and vice versa, supporting a wide range of marine instruments including AIS devices.

• PC Application Compatibility: Easily connect with popular applications such as TimeZero and OpenCPN for navigation and data analysis.

• Configurable via Actisense Toolkit: Advanced setup options for Tx/Rx lists and data rates, allowing tailored network configurations.

• Safe ISO Port Connections: Fully ISO-isolated NMEA 2000 and USB ports, tested to 1000V for safety and reliability in marine environments.

• Bi-Directional Data Transfer: Supports fast heading updates at 10Hz, ensuring accurate and timely navigation data.

• Multiple Diagnostic LEDs: Facilitates quick troubleshooting and status monitoring of network activity.

• Legacy Instrument Integration: Connects older NMEA 0183 devices with modern NMEA 2000 networks, reducing upgrade costs and expanding system capabilities.

• High-Speed Data Communication: Supports baud rates up to 230,400 for rapid data transfer essential for real-time navigation and instrumentation.

• Robust Mechanical Design: Made with flame-retardant polycarbonate housing and PBT end caps, the NGX-1 is built for durability and safety on the water.
