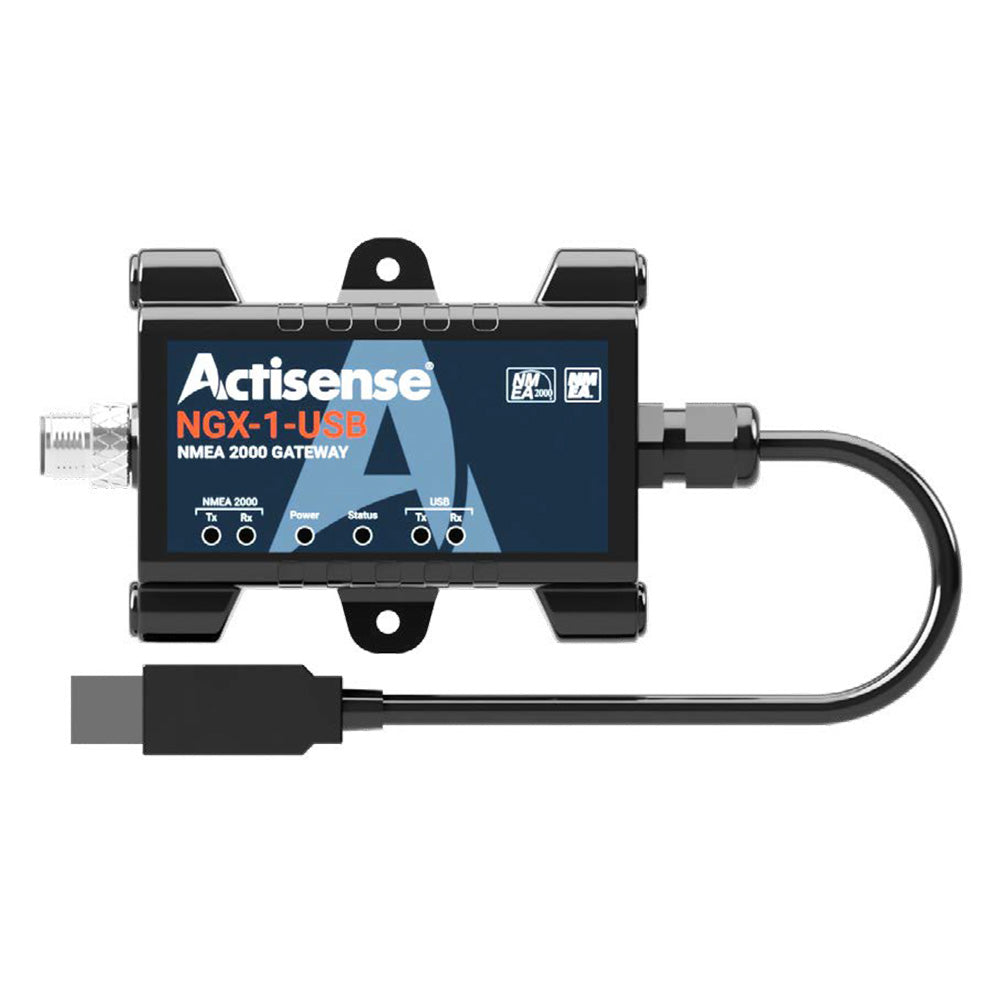

Actisense NGX-1-USB 0183 to NMEA 2000 Gateway with PC Interface and USB Connection

0183 to N2K Gateway with PC Interface, USB Connection

Intelligent Gateway technology enables PC interfacing and NMEA data conversion

The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.

Configure the NGX-1 to operate as an NMEA 2000 <> PC interface, or as a bi-directional NMEA 0183 <> NMEA 2000 conversion gateway.

Features:

• View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard.
• View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway.
• Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183).
• Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1.
• Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs.
• Vital NMEA 2000 diagnostic tool
• Fully isolated to prevent dangerous ground loops
• Up to 230,400 baud data transfer rate
• Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
• Supports Fast Heading at 10Hz
• Multiple diagnostic LEDs
• Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus
• Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus
  • Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided
  • Configure and flash-update Actisense products on the bus
  • Upgrade NMEA 0183 equipment to NMEA 2000
  • Allow NMEA 0183 devices to receive vital NMEA 2000 data
  • Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
  • Reliable, renowned bi-directional conversion engine
  • Supports a wide range of conversions including AIS
  • Easily configurable using Actisense Toolkit

Technical Specifications

Power Supply

• Supply Voltage (NMEA 2000 Port) - 9 to 30V DC
• Supply Current (NMEA 2000 Port) - 62mA @ 9V DC
• Load Equivalent Number (LEN) - 2

NMEA 2000 Port

• Speed / Baud Rate - 250kbps
• Connectivity - M12 Male (A coded)

USB Port

• Compatibility - USB 1.1, 2.0 and 3.0
• Speed / Baud Rate - 4800 to 230400 Baud
• Connectivity - Male type A plug moulded onto cable
• Cable Length - 1.8m

Isolation

• NMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000V
• NMEA 2000 Port to USB Port - Galvanic Isolation, Hi-Pot tested to 1000V

Mechanical

• Housing Material Body - Flame retardant Polycarbonate
• Housing Material End Caps - Flame retardant PBT
• Weight - 113g

Approvals and Certifications

• NMEA 2000 - NMEA 2000 Certified
• NMEA 0183 - Meets IEC 61162-1 61162-2 Requirements
• RoHS and REACH - Compliant
• Module Certification - KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE, EN 60945:2002 Edition 4 (section 9.3), EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4
• EMC - EN 300 328 V2.2.2 Radiated Spurious Emissions, FCC Part 15b, ICES-003 Iss 7
• Environmental Protection IP67
• Operating Temperature -25C to +70C
• Storage Temperature -30C to +70C
• Recommended Humidity 0 to 93% RH @ 40C
• Guarantee 3 years, extended to 5 years upon registration

The Actisense NGX-1-USB is a versatile and cost-effective gateway designed to seamlessly integrate legacy NMEA 0183 instruments with modern NMEA 2000 networks. This intelligent device combines the features of previous models into a single, flexible solution, enabling efficient data conversion and PC interfacing for a wide range of marine applications. Whether you're upgrading your boat's navigation system or diagnosing network issues, the NGX-1-USB provides reliable performance and comprehensive diagnostics in a compact, rugged design.

Designed for ease of use, the NGX-1-USB supports bi-directional data conversion between NMEA 0183 and NMEA 2000 standards, allowing you to connect older instruments to new networks without extensive rewiring. The device supports all available PGNs in the NMEA 2000 standard and can display network data on the Actisense NMEA Reader software, making troubleshooting and system monitoring straightforward. Its large conversion library also allows users to view converted NMEA 0183 data, facilitating integration with popular PC applications like TimeZero and OpenCPN. The device's robust isolation prevents ground loop issues, ensuring safe and stable operation even in challenging marine environments.

The NGX-1-USB features a USB port compatible with USB 1.1, 2.0, and 3.0, providing data transfer rates up to 230,400 baud. Its M12 male connector for the NMEA 2000 port supports standard 250kbps data transfer, and the device is powered via a 9 to 30V DC supply, making it suitable for various vessel power systems. Advanced configuration options are accessible through the Actisense Toolkit, allowing users to customize transmission rates and diagnostic settings. Additionally, the device includes multiple diagnostic LEDs and complies with international safety and environmental standards, including IP67 waterproof rating and Prop 65 compliance.

Ideal for boat builders, electronics installers, and marine technicians, the Actisense NGX-1-USB is a vital diagnostic tool that enhances network reliability and simplifies system upgrades. Its ability to upgrade existing NMEA 0183 equipment to NMEA 2000 and multiplex multiple signals ensures future-proofing and flexibility for evolving marine navigation systems. Backed by a 3-year warranty (extendable to 5 years with registration), the NGX-1-USB is a trusted choice for professional marine data integration and troubleshooting.

Features:

• Supports bi-directional conversion between NMEA 0183 and NMEA 2000 standards

• View all NMEA 2000 network data on Actisense NMEA Reader, supporting every PGN

• Display converted NMEA 0183 data on Actisense NMEA Reader with extensive conversion library

• Easily interface with popular PC applications such as TimeZero and OpenCPN

• Configure via Actisense Toolkit for custom settings and firmware updates

• Connect legacy NMEA 0183 instruments with NMEA 2000 networks to reduce upgrade costs

• Fully isolated design to prevent ground loop issues and ensure safety

• Supports high data transfer rates up to 230,400 baud

• Compact and rugged housing with IP67 environmental protection

• Complies with international standards including IEC 61162 and Prop 65
