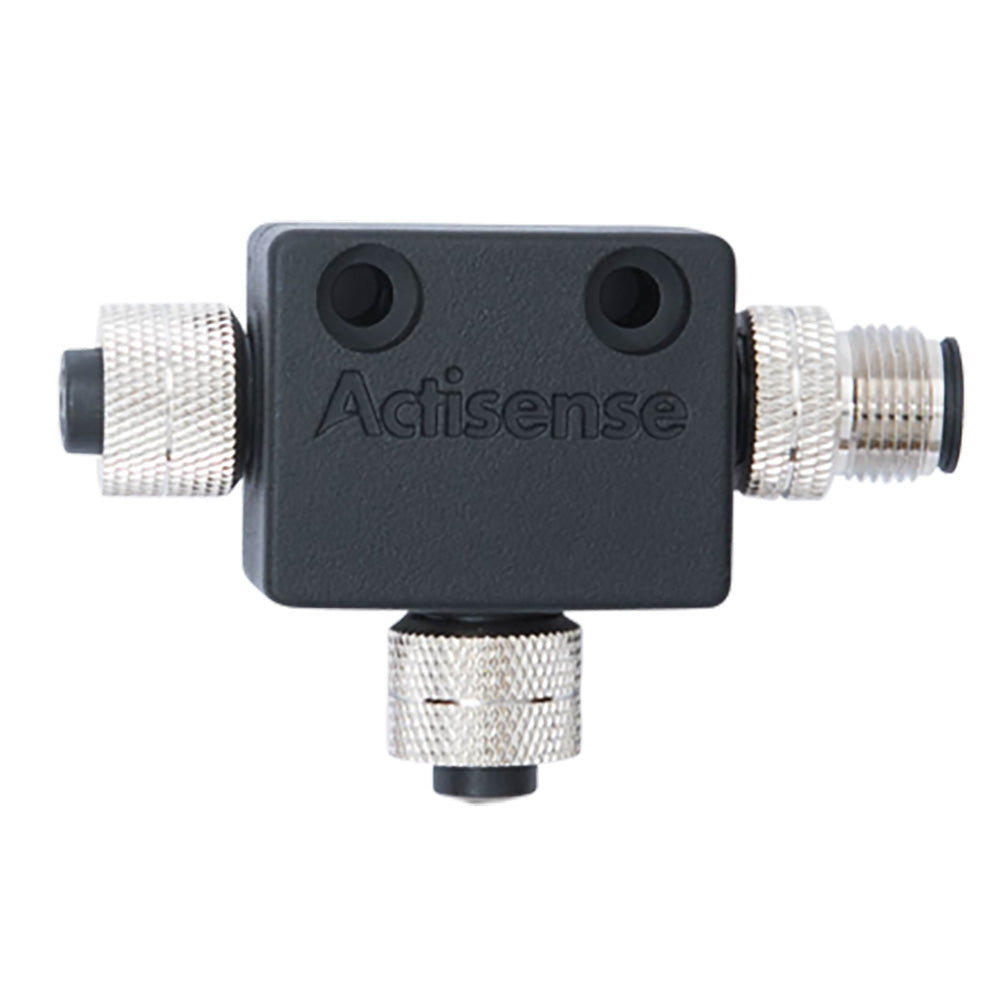

Actisense NMEA2000 Micro T Connector A2K-T-MFF for Marine Electronics and Data Networking

NMEA2000 Micro T Connector

Quality-engineered connectors are shaped to allow easy and secure connections.

Two female and one male connector allow easy connection to Actisense NMEA lite cable assemblies, even when field-fit connectors are used, making it a unique T-piece.

The Actisense NMEA 2000 T-Piece is for use where a drop or port is required from the NMEA 2000 backbone to connect another device.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

• Rated Current - 4A
• Rated Voltage - 60VDC
• Male Contact - Brass, gold-plated
• Female Contact - Phosphor bronze, gold plated
• Contact Carrier - PA66 (30% Glass filled), black
• Contact Polarization - Standard M12 -A- polarization
• Mating Thread - M12
• Screw Cap - Brass, nickel plated
• O-Ring Seal - Rubber, black
• Housing - PVC, black
• Weight - 47g
• Protection - IP67 (when mated)
• Operating Temperature - -25C to +70C
• Storage Temperature - -40C to +85C

The Actisense NMEA2000 Micro T Connector (Part No. A2K-T-MFF) is a precision-engineered component designed to facilitate seamless data connections within marine and industrial NMEA 2000 networks. Featuring one male and two female connectors, this micro T-connector allows easy and secure branching from the main backbone to additional devices, making it ideal for installations where space is limited but reliable data transfer is essential. Its robust construction and gold-plated brass contacts ensure optimal conductivity and corrosion resistance, suitable for demanding environments. The connector's IP67 rating guarantees protection against dust and water ingress when mated, ensuring long-term durability even in harsh marine conditions. Operating efficiently across temperatures from -25°C to +70°C, it is engineered for versatility and resilience in various applications. Designed with a standard M12 polarization and a black PVC housing, the Actisense Micro T Connector offers a professional-grade solution for marine electronics, RVs, or industrial automation systems that require reliable network expansion. Use this connector to easily extend your NMEA 2000 network, ensuring stable communication between your devices and reducing installation complexity. The product is manufactured with high-quality materials including phosphor bronze and brass, complemented by a rubber O-ring seal for enhanced environmental sealing. Please note that this product is not eligible for return to the original point of purchase; for support or warranty issues, contact Actisense directly. For detailed installation instructions, refer to the official manual available online.

Features:

• Three-connection T-piece design for easy network expansion

• Two female and one male NMEA 2000 connectors for versatile installation

• Gold-plated brass male contact for superior conductivity

• Phosphor bronze female contacts with gold plating for corrosion resistance

• Rated for 4A current and 60VDC voltage

• IP67 protection rating ensures dust and water resistance when mated

• Operates reliably in temperatures from -25°C to +70°C

• Constructed with durable PVC housing and rubber O-ring seal for environmental protection

• Standard M12 polarization and screw thread for secure fitting

• Ideal for marine electronics, industrial automation, and RV applications
