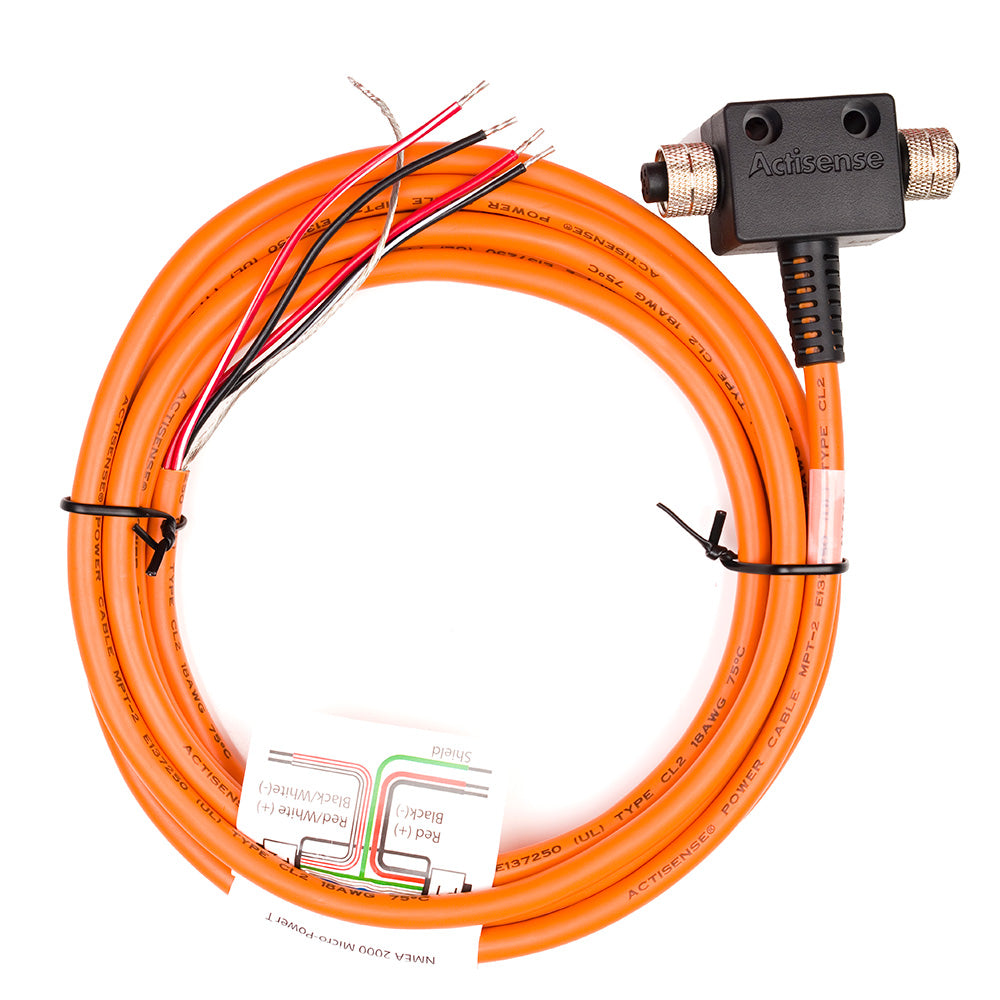

Actisense A2K-MPT-2 NMEA 2000 Micro Power T-Connector

NMEA2000 Micro T-Piece with Female Connectors 3M UL Certified Cable

The A2K-MPT-2 is a simple, safe, and efficient method of powering an NMEA 2000 network.

Now with improved strain relief!

The Micro Power T can easily provide power to the NMEA 2000 bus with micro-fit connectors to enable plug and play connectivity.

The Actisense-designed connectors are quality-engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible.

The Actisense specified cable is UL certified, and the three-meter cable length ensures that the A2K-MPT-2 offers complete flexibility when installing.

Technical Specifications:

Electrical

• Rated Current - 4A (each feed)
• Rated Voltage - 60VDC

Mechanical

• Female Contact - Phosphor bronze, gold plated
• Contact Carrier - PA66 (30% Glass Filled), Black
• Contact Polarization - Standard M12 -A- polarization
• Mating Thread - M12
• Screw Cap - Brass, nickel plated
• O-Ring Seal - Rubber, black
• Housing - PVC, black
• Cable Jacket Material - 0.8mm Nom. PVC, orange
• Cable Outer Diameter - 6.7mm 0.254mm
• Cable Length - 3M
• Wire Length - 100mm (7mm stripped)
• Wire Jacket - PVC
• Wires - 18 AWG (stripped and tinned)
• Drain - 18 AWG (34-strand tinned copper)
• Shield - Al-mylar
• Weight - 290g

Approvals and Certifications

• Protection - IP67 (when mated)
• Operating Temperature - -20C to +70C
• Storage Temperature - -40C to +85C

The Actisense NMEA2000 Micro T-Piece (Part Number: A2K-MPT-2) offers a reliable and compact solution for powering your NMEA 2000 network with ease. Designed with high-quality, gold-plated phosphor bronze female connectors, this T-piece provides secure and quick connections, ensuring your marine electronics are consistently powered and connected. Its improved strain relief feature enhances durability, making it suitable for demanding marine environments. The included 3-meter UL certified cable delivers flexibility during installation, allowing you to position your network components optimally without sacrificing performance or safety. Constructed with robust materials such as PVC housing and a rubber O-ring seal, the T-piece is rated IP67 for protection against water and dust when mated, ensuring long-lasting operation in harsh conditions.

Features:

• UL Certified Cable: Ensures safety and compliance with industry standards

• Micro Fit Connectors: Enable plug-and-play connectivity for quick setup

• Improved Strain Relief: Enhances durability during installation and use

• High-Quality Connectors: Gold-plated and designed for secure, corrosion-resistant connections

• Flexible 3M Length: Provides versatile placement options for marine network wiring

• Rated Current: 4A per feed for reliable power distribution

• Rated Voltage: 60VDC suitable for marine electronic systems

• Weatherproof Design: IP67 protection when mated, ideal for demanding marine environments

• Robust Mechanical Construction: Includes phosphor bronze contacts, brass screw caps, and PVC housing for durability

• Compatibility: Fully compatible with NMEA 2000 and DeviceNet networks
