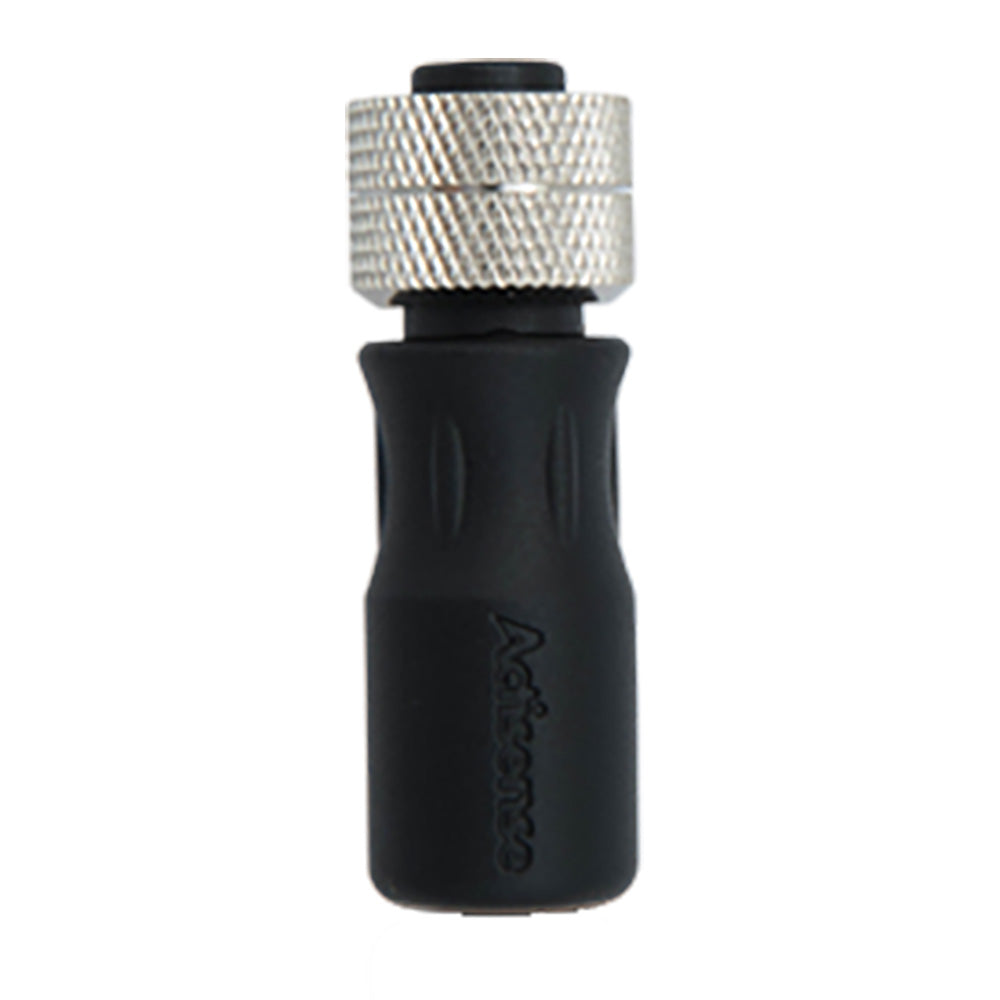

NMEA2000 Micro Terminator - Female

Actisense terminators are exceptionally robust, designed to withstand the harsh conditions of the marine environment, and are easy to install.

Each NMEA 2000 installation must have precisely two termination resistors installed, one at each end of the backbone, to ensure proper operation and signal integrity.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge

Technical Specifications:

Electrical

• Rated Voltage (power pair) - 60VDC
• Rated Current - 4A
• Internal Termination Resistors - 120 1% 500mW

Mechanical

• Female Contact - Phosphor bronze, gold plated
• Contact Carrier - PA66 (30% Glass filled), black
• Contact Polarization - Standard M12 -A- polarization
• Mating Thread - M12
• Screw Cap - Brass, nickel plated
• O-Ring Seal - Rubber, Black
• Housing - PVC, black
• Weight - 15g

Approvals and Certifications

• Protection - IP67 (when mated)
• Operating Temperature - -25C to +70C
• Storage Temperature - -40C to +85C

Ensure your NMEA2000 network operates flawlessly with the Actisense NMEA2000 Micro Terminator - Female. Crafted to withstand the demanding conditions of marine environments, this terminator offers exceptional durability and reliable signal integrity. Its robust construction features a phosphor bronze, gold-plated female contact designed for optimal conductivity and longevity, ensuring consistent performance even in harsh conditions. The internal 120 ohm, 1% resistor provides precise termination necessary for accurate data transmission across your marine network, preventing signal reflections and data errors.

The compact design of this terminator makes installation straightforward, with a black PVC housing that resists corrosion and environmental wear. The inclusion of a rubber, black O-ring seal ensures IP67 protection when mated, safeguarding the internal components from water ingress, dust, and debris. The brass, nickel-plated screw cap further secures the connection, maintaining electrical integrity over time. Compatible with M12 -A- polarization and featuring a standard M12 mating thread, this component is suitable for a wide range of marine data systems.

Measuring approximately 1 inch in length, the Actisense Micro Terminator weighs just 0.5 ounces, making it an ideal choice for tight spaces and portable applications. It is rated for a maximum voltage of 60VDC and a current of 4A, meeting the operational demands of most marine electronic systems. The design complies with industry standards and certifications, ensuring safety and reliability in marine applications. Whether you are setting up a new network or maintaining an existing system, this terminator guarantees optimal performance and durability, backed by Actisense’s reputation for quality and innovation.

For detailed installation instructions and additional technical information, refer to the owner's manual available online. Trust the Actisense NMEA2000 Micro Terminator - Female to provide a secure, corrosion-resistant, and high-quality connection for your marine data network, ensuring smooth and reliable communication on your vessel.

Features:

• Rated Voltage: 60VDC for reliable power handling in marine systems

• Rated Current: 4A to support typical data transmission loads

• Internal Termination Resistors: 120 ohm, 1% precision for optimal signal integrity

• Female Contact: Phosphor bronze, gold plated for corrosion resistance and conductivity

• Contact Carrier: PA66 (30% Glass filled), black for durability

• Polarization: Standard M12 -A- polarization for compatibility

• Housing: PVC, black, resistant to marine environmental factors

• Seal: Rubber, black O-ring for IP67 protection when mated

• Mating Thread: M12 for secure connection

• Screw Cap: Brass, nickel plated for longevity

• Dimensions: Compact 1-inch length, lightweight design

• Temperature Range: -25°C to +70°C (-13°F to +158°F) for versatile use

• Certifications: IP67 protection, suitable for harsh marine environments
