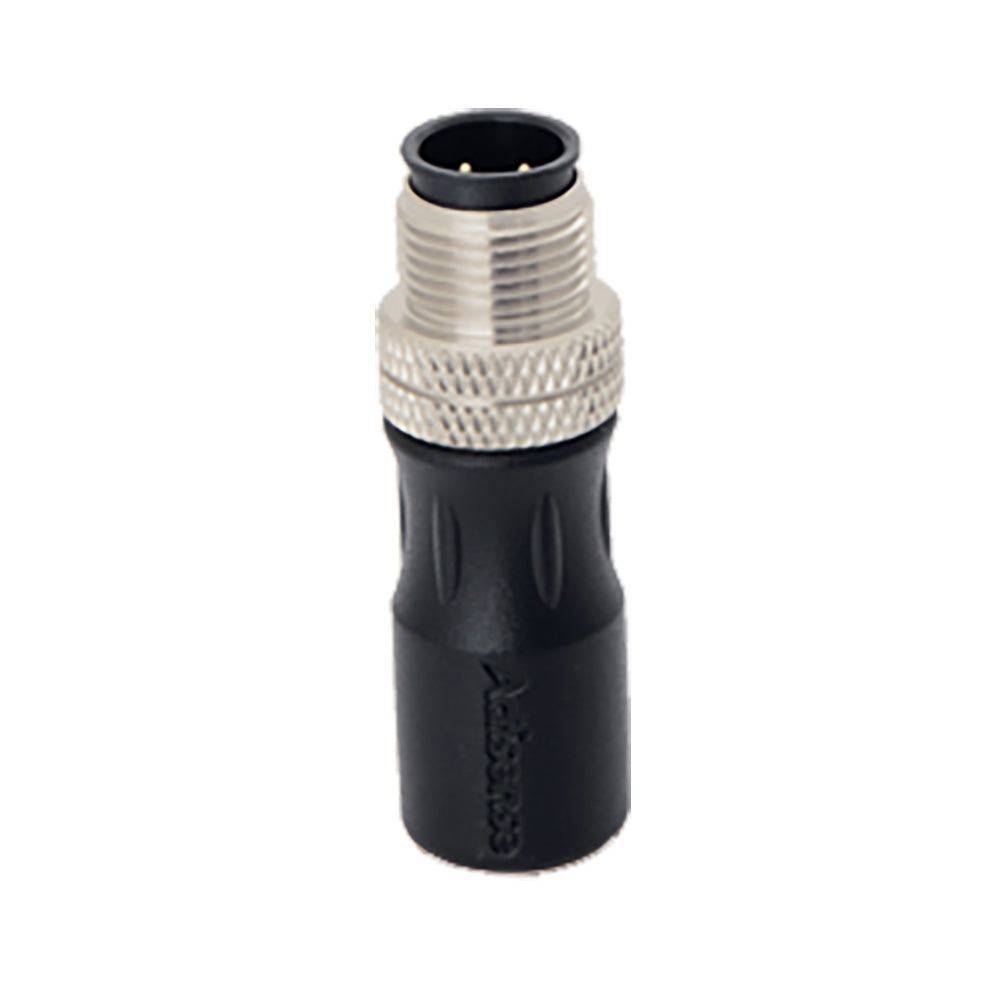

NMEA2000 Micro Terminator - Male

Actisense terminators are exceptionally robust, designed to withstand the harsh conditions of the marine environment, and are easy to install.

Each NMEA 2000 installation must have precisely two termination resistors installed, one at each end of the backbone, to ensure proper operation and signal integrity.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge

Technical Specifications:

Electrical

• Rated Voltage (power pair) - 60VDC
• Rated Current - 4A
• Internal Termination Resistors - 120 1% 500mW

Mechanical

• Male Contact - Brass, gold plated
• Contact Carrier - PA66 (30% Glass filled), black
• Contact Polarization - Standard M12 -A- polarization
• Mating Thread - M12
• Screw Cap - Brass, nickel plated
• O-Ring Seal - Rubber, Black
• Housing - PVC, black
• Weight - 15g

Approvals and Certifications

• Protection - IP67 (when mated)
• Operating Temperature - -25C to +70C
• Storage Temperature - -40C to +85C

Ensure your NMEA 2000 marine network maintains optimal signal integrity with the Actisense NMEA2000 Micro Terminator - Male. Designed specifically for harsh marine environments, this robust connector withstands extreme conditions while providing reliable termination at the end of your backbone. Proper termination resistors are essential for preventing signal reflections and ensuring smooth data transmission across your network, and this product is engineered to deliver just that with a 120 ohm resistor precision-tuned to 1%. Whether you're installing a new system or maintaining an existing network, the Actisense Micro Terminator offers easy installation with precision-matched components that adhere to industry standards.

Constructed with durability in mind, the male contact features brass with a gold-plated surface for excellent conductivity and corrosion resistance. The contact carrier, made of reinforced PA66 plastic with a 30% glass fill, provides strength and stability in demanding environments. The M12 threading and standard polarization ensure compatibility with a wide range of marine equipment, while the brass nickel-plated screw cap guarantees a secure connection. The housing, made of black PVC, is lightweight yet sturdy, and an integrated rubber O-ring seal offers protection against water ingress up to IP67 when mated. This means your network components are protected against water and dust, even in the most challenging marine conditions.

Operating reliably within temperatures from -25°C to +70°C, this terminator is suitable for a broad range of marine applications. Its compact design, weighing just 15 grams, makes it easy to integrate into tight spaces. Approved for marine use, the Actisense NMEA2000 Micro Terminator ensures your data network remains protected and functional in all weather conditions. For detailed installation instructions, refer to the owner’s manual available online. Invest in a high-quality, dependable termination component that supports seamless communication for your marine electronics system.

Features:

• Rated Voltage: 60VDC for reliable power handling in marine environments

• Rated Current: 4A to support standard data transmission loads

• Internal Termination Resistors: 120 ohm, 1% tolerance, 500mW power to ensure signal integrity

• Male Contact: Brass with gold plating for corrosion resistance and excellent conductivity

• Contact Carrier: PA66 plastic with 30% glass fill for durability

• M12 Threading and Standard Polarization: Compatible with a wide range of marine devices

• Screw Cap: Brass, nickel-plated for secure fit and corrosion resistance

• Sealing: Rubber O-ring provides IP67 protection when mated

• Housing: Black PVC for lightweight, durable protection against marine elements

• Operating Temperature Range: -25°C to +70°C for versatile marine use

• Certification: IP67 protection rating for water and dust resistance
