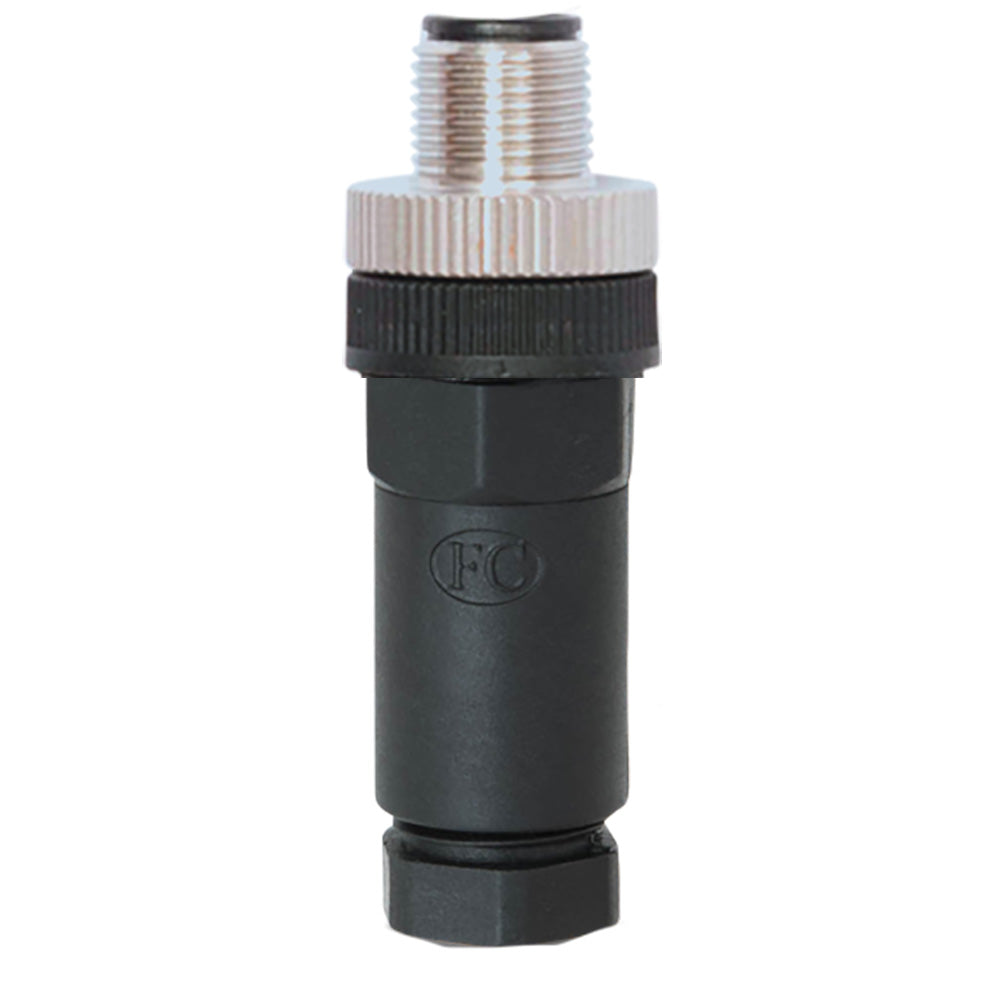

Actisense NMEA2000 Straight Micro Field Fit Connector - Male (Part A2K-FFC-SM)

NMEA2000 Straight Micro Field Fit Connector - Male

Field-fit connectors allow full customization of your NMEA 2000 network cabling.

Male and female variants, as well as right-angle options for each, provide full flexibility and make it easy to install cable around tight bends, meaning your network can be fully customized. Actisense Field Fit Connectors allow for secure, reliable connections in any NMEA 2000 installation using Lite cable. The glands inside the connectors tighten around the cable as they are screwed together to maintain watertight integrity.

The Field Fit Connectors allow cables to be cut to any length, resulting in less excess. Right-angle options mean cables can be fitted at any angle to allow ease of installation from the desired entry point. The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

Electrical

• Rated Current - 4A
• Rated Voltage - 60VDC

Mechanical

• Connector Contact - Brass, gold plated
• Wire Gauge/Size - 22 AWG/0.34mm
• Contact Resistance - 5 m
• Contact Polarization - Standard M12 -A- polarization
• Mating Thread - M12
• Connector Screw - Stainless Steel
• Sealing Gland Size - PG9/6-8mm Cable
• O-Ring Seal - Rubber, black
• Connector Insert - TPU
• Connector Body - PA+GF, black
• Insulation Resistance - 100 M
• Weight - 21.1g

Approvals and Certifications

• Protection - IP67 (in locked condition)
• Ambient Temperature - -25C to +90C

The Actisense NMEA2000 Straight Micro Field Fit Connector - Male (Part A2K-FFC-SM) is designed for seamless customization and reliable connections within your marine network. Crafted specifically for NMEA 2000 systems, this connector allows you to tailor your cabling to precise lengths, minimizing excess and enhancing overall network organization. Its compact, straight design ensures straightforward installation, especially in tight spaces, making it ideal for custom marine electronics setups.
Constructed with high-quality materials, the connector features a brass, gold-plated contact for optimal conductivity and corrosion resistance. The durable PA+GF black connector body and TPU insert provide robust protection against harsh marine environments. An O-ring seal made of black rubber ensures watertight integrity, rated IP67, which means it can withstand exposure to water and dust while in a locked condition. The connector is rated for current of up to 4A and voltage of 60VDC, making it suitable for a wide range of marine applications.
The mechanical design includes a stainless steel screw for secure fastening and a sealing gland compatible with PG9/6-8mm cables, accommodating 22 AWG/0.34mm wire gauge. The connector’s polarization aligns with standard M12-A specifications, ensuring compatibility with existing systems. Its lightweight design, weighing approximately 0.94 ounces, makes it easy to handle during installation and maintenance. The product is certified to meet IP67 standards and operates effectively across a broad temperature range from -25°C to +90°C, ensuring reliable performance in diverse marine environments.
Whether you're upgrading an existing network or building a new one, the Actisense Field Fit Connector offers a professional-grade solution that emphasizes secure connections, environmental resilience, and installation flexibility. For detailed installation instructions and technical guidance, refer to the product manual available online. Trust Actisense’s expertise in marine connectivity to deliver dependable performance for your NMEA 2000 network.

Features:

• Rated Current: 4A for reliable power transfer

• Rated Voltage: 60VDC suitable for marine electronic systems

• Connector Contact: Brass, gold plated for corrosion resistance

• Wire Gauge: Accommodates 22 AWG/0.34mm wire for versatile wiring

• Contact Resistance: 5 milliohms ensures efficient conductivity

• Sealing Gland Size: PG9/6-8mm cable compatibility

• O-Ring Seal: Rubber, black for waterproof protection

• Connector Insert: TPU material for durability

• Connector Body: PA+GF, black, for strength and environmental resistance

• Sealing Rating: IP67, provides protection against water and dust

• Temperature Range: -25°C to +90°C for versatile outdoor use

• Mating Thread: M12 for secure connection

• Connector Screw: Stainless steel for durability

• Insulation Resistance: 100 MΩ for signal integrity

• Easy customization: Cut cable to desired length with flexible installation options
