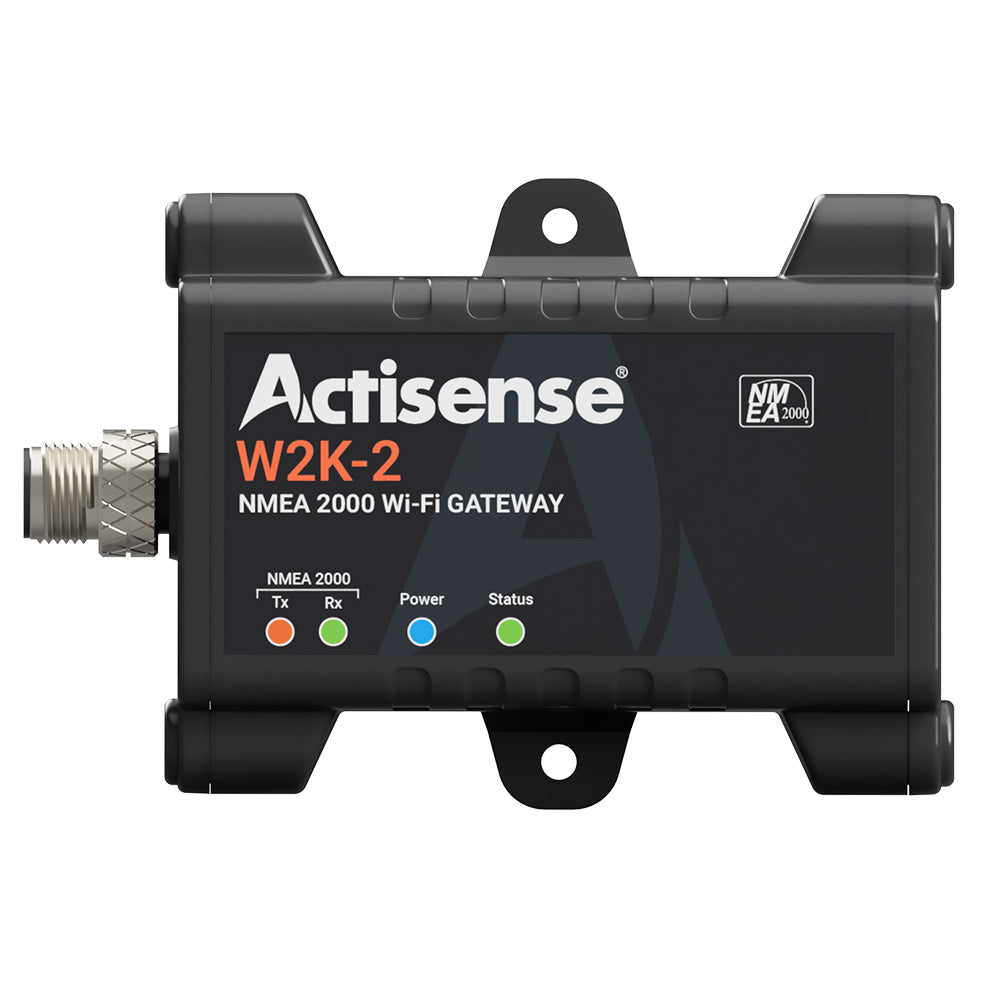

NMEA2000 to WiFi Gateway
The W2K-2 is a rugged and reliable NMEA 2000 to Wi-Fi Gateway with built-in data logger and Actisense-i diagnostic tools.
Transfer data from an NMEA 2000 backbone to any device (e.g, laptop, tablet, or smartphone) connected to the W2K-2 via Wi-Fi and additionally convert this data to NMEA 0183 using Actisenses renowned conversion engine. Actisense-i is a suite of diagnostic tools and a health checker for your network.
Fully compatible with the industrys most popular apps.
The W2K-2 has built-in conversion of NMEA 2000 messages into NMEA 0183 sentences, thus allowing a wide variety of vessel data (e.g., position, speed, course, wind speed, depth, engine data, AIS messages, etc.) to be shared with NMEA 0183 compatible software applications running on connected devices.
All the data received (or a selected subset) can be logged to an internal micro SD card for later downloading to use for analyzing the voyage. This is very useful for analyzing race data, generating logbooks, diagnosing problems, or even sharing your voyage details. Data can be stored on any micro SD card (up to 128GB), giving weeks or more of storage for all onboard NMEA data.
The W2K-2 has adopted the latest WPA3 standards for password protection. Whilst most wireless gateways still use WPA2, WPA3 adds an extra layer of security.
Actisense-i comes included as standard. Benefit from our full suite of diagnostic tools to help check and diagnose potential issues on a boats electronics network, including voltage issues, and the working status of all devices attached to the network. Actisense-i has been designed to save installers and boaters time and ultimately, money, by giving them confidence in their electronics onboard.
The W2K-2 has the legendary Actisense Reliability Built-In along with useful diagnostic LEDs, an internal antenna, enhanced password security, full certification, and all packaged in an extremely rugged IP67 case.
Features:
- Converts NMEA 2000 to/from NMEA 0183 (streamed over Wi-Fi)
- Supports both TCP and UDP, streams data using up to three separate data servers
- Data protocols are selectable to be compatible with a huge range of navigation software and apps
- Voyage data recording (install SD card up to 128GB)
- Diagnostic LEDs for NMEA 2000 bus activity and Wi-Fi Status
- Works as an access point and a client simultaneously
- Remote Firmware Upgradability
- Low power- 2 LEN (100 mA)
- Supports 802.11 b/g/h (up to 150Mbps)
- Automatically measures and reports the NMEA 2000 bus voltage
- User Manual embedded on the device, easily accessible via browser
- Each device has a unique default SSID and Password for enhanced security
- Actisense-i diagnostic tools
- Two-in-one NMEA 2000 to Wi-Fi Gateway and data logger
- Enables the use of mobile devices and laptops without the hassle of a physical connection
- Allows compatibility with a wide range of NMEA 2000 NMEA 0183 applications
- Ruggedized IP67 casing suitable for wet and harsh environments
- Works out of the box just install your choice of SD card for logging data
- An integrated antenna has less chance of physical damage
- Quick and easy to install
Technical Specifications:
Power Supply
- Supply Voltage (NMEA 2000 Port) - 9 to 30V DC
- Supply Current (NMEA 2000 Port) - 70mA (avg.) @ 12V DC, 100mA (avg.) @ 9V DC
- Load Equivalent Number (LEN) - 2
- Supply protection - Continuous reverse polarity protection and transient overvoltage protection to 40V
Wi-Fi Radio
- Compatibility - IEEE 802.11 b/g/n
- Speed - 802.11n up to 150Mbps
- Frequency Band - 2.4GHz 2.5GHz
- Max Output power - 20 dBm
- Antenna - Integrated internal antenna
- Range (Open space) - 30 meters
- Security - WPA_PSK, WPA2_PSK, WPA_WPA2_PSK
Configuration
- IP support - Supports TCP and UDP broadcast
- Data servers - Three separate data servers
- Data protocols - NMEA 0183 Five proprietary
- Security - SSID and Password configurable (Unique defaults per device)
Diagnostics
- Power LED - Blue
- NMEA 2000 Tx LED - Orange
- NMEA 2000 Rx LED - Green
- Status LED - Yellow
- Micro SD card - Not supplied customer to install as required.
Mechanical
- Housing Material (body) - Polycarbonate
- Housing Material (endcaps) - PBT
- NMEA 2000 Connector - M12 Male (A polarized) connector molded into the case
- NMEA 2000 Connector Material - Nickel-plated brass
- Weight - 80g
- Dimensions - 106mm (L) x 73mm (W) x 24mm (H)
Environmental
- Environmental Protection - IP67
- Operating Temperature - -20C to +55C
- Storage Temperature - -40C to +85C
- Recommended Humidity - 0 93% RH
Approvals and Certifications
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
The Actisense W2K-2 is a versatile and rugged NMEA2000 to Wi-Fi gateway designed for boaters, marine professionals, and navigation enthusiasts seeking seamless vessel data connectivity. This device enables wireless transfer of critical boat data such as position, speed, wind speed, depth, engine metrics, and AIS messages to any Wi-Fi-enabled device, including laptops, tablets, and smartphones. Perfect for marine navigation, voyage monitoring, and data analysis, the W2K-2 simplifies onboard networking by eliminating the need for physical connections, while supporting a broad range of marine software applications for real-time monitoring and diagnostics.
Equipped with built-in data logging capabilities, the W2K-2 allows users to record vessel data directly onto micro SD cards up to 128GB, providing weeks of storage for post-voyage analysis, troubleshooting, or creating detailed logbooks. Its compatibility with industry-standard protocols, including NMEA 0183 and NMEA 2000, ensures integration with numerous navigation and instrumentation systems. The device supports both TCP and UDP streaming, supporting up to three data servers simultaneously, which enhances its flexibility for various onboard networking setups.
Designed for reliability in demanding environments, the W2K-2 features a durable IP67-rated casing, integrated antenna, and advanced security with WPA3 standards to protect your network. The device also incorporates diagnostic LEDs, internal power protection, and remote firmware updates, making setup, maintenance, and troubleshooting straightforward. The included Actisense-i diagnostic suite offers comprehensive network health checks, voltage monitoring, and device diagnostics, saving time and increasing confidence in your onboard electronics. Whether for race boat data analysis, fleet management, or recreational navigation, the W2K-2 provides a robust, secure, and easy-to-use solution for marine data connectivity and management.
**Key Features:**
- Converts NMEA 2000 to Wi-Fi and NMEA 0183 with support for popular navigation apps
- Supports up to three data servers using TCP and UDP protocols
- Built-in data logger with micro SD card support (up to 128GB)
- Rugged IP67 casing suitable for wet and harsh environments
- Integrated internal antenna with 30-meter open space Wi-Fi range
- Advanced security features including WPA3 encryption and unique device credentials
- Includes Actisense-i diagnostic tools for network health and troubleshooting
- Easy installation with plug-and-play design and remote firmware updates
- Supports 802.11 b/g/n Wi-Fi standards up to 150 Mbps
**Product Details:**
- Power Supply: 9-30V DC, 70-100mA
- Dimensions: 4.2” (L) x 2.9” (W) x 0.95” (H)
- Housing Material: Polycarbonate with IP67 protection
- NMEA 2000 Connector: M12 Male (molded brass, nickel-plated)
- Operating Temperature: -20°C to +55°C
- Certification: Industry standards compliance with 5-year guarantee
**California Proposition 65 Warning:** [APPROVED PROP 65 WARNING REQUIRED]
The Actisense W2K-2 NMEA2000 to Wi-Fi Gateway empowers boat owners and marine professionals to effortlessly connect, monitor, and analyze vessel data wirelessly. Its rugged design, comprehensive diagnostics, and extensive logging capabilities make it an essential tool for modern marine data management. Invest in the reliability and versatility of Actisense to enhance your onboard navigation and data collection experience.
SEO META DESCRIPTION: Discover the Actisense W2K-2 NMEA2000 to Wi-Fi Gateway for seamless marine data transfer, logging, and diagnostics, ideal for boaters and marine professionals.
Features:
- Converts NMEA 2000 to/from NMEA 0183 over Wi-Fi, enabling flexible vessel data sharing
- Supports multiple data servers with TCP and UDP protocols for broad software compatibility
- Built-in micro SD card support up to 128GB for extensive voyage data logging
- Durable IP67 casing designed for harsh marine environments
- Includes Actisense-i diagnostic tools for network health and troubleshooting
- Supports WPA3 security for enhanced Wi-Fi network protection
|
| Truck Freight: No |
| Oversized: No |
| Owners Manual Url: https://productimageserver.com/literature/ownersManual/111790OM.pdf |
