Actisense PRO NMEA Buffer Model PRO-NBF-1 – Isolated Marine Data Distributor with 6 ISO-Drive Outputs and Pluggable Terminals

PRO NMEA Buffer - 1 OPTO Input, 6 ISO-Drive Outputs, Serial Port, Pluggable Screw Terminals

Safely connect one Talker to six Listeners with full isolation.

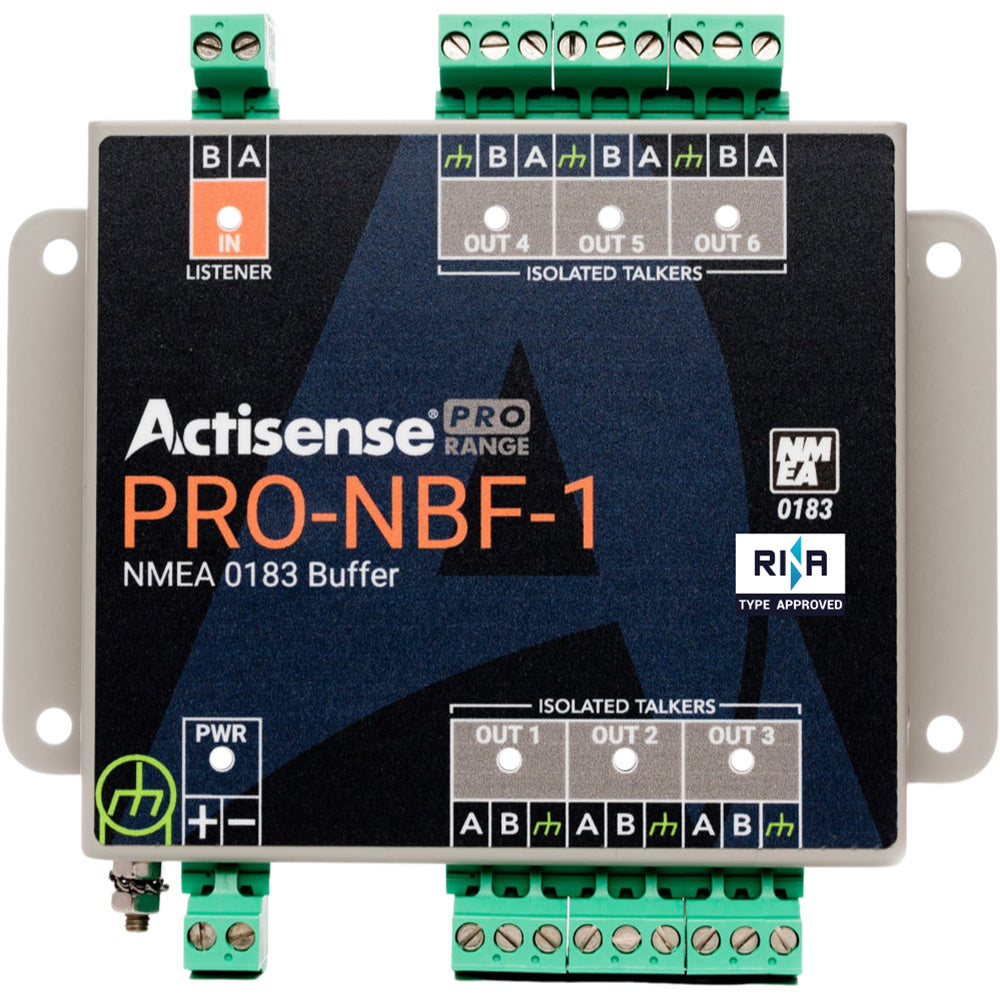

The Type-approved NMEA Buffer PRO-NBF-1 Buffer isolates and buffers NMEA 0183 data, with the power to drive multiple devices.

Able to distribute up to six identical, amplified streams of data from one source, the NMEA signals are buffered to ensure that each Listener receives the data at the required voltage levels, providing consistent data quality.

Isolation of the input and outputs ensures the protection of the source Talker device and Listener devices.

The NMEA Buffer has ISO-Drive technology on the outputs and OPTO-isolation on the input, which enables you to connect the NMEA 0183 Buffer with complete peace of mind.

The stainless steel housing makes the device rugged, sturdy, and gives it increased durability. The metal case also acts as an RF Shield, making the device an ideal addition to commercial installations.

To make installation quick and simple, the PRO-NBF-1 features 2-part pluggable connectors that allow use of screw terminals*, and a professional DIN Rail mounting system (DIN Rail not included). The device can also be mounted directly to the bulkhead.

The optional strain relief brackets can be provided to ensure reliable professional cable management.

Helpful LEDs indicate power, input, and output operation.

Features:

• One Opto-Isolated Input
• Six ISO-Drive outputs
• Outputs automatically track the input baud rate
• RS-232, RS-422 and RS-485 Listener compatible
• ISO-Drive separates the Listener from the Talker to protect both the PRO-NBF-1 and each connected device
• Wide compatibility means simplified installation
• Simple installation saves time and money and provides peace of mind
• Type Approved (RINA)

Technical Specifications:

Power Supply

• Input Supply Voltage - 9 to 35V DC
• Input Supply Current - 150mA max @ 12V DC (all outputs @ full drive into 100 loads)
• Input Protection - Continuous reverse polarity and ESD protection
• Power Indicator - LED, Blue Indicates unit is functioning correctly
• Input Supply Connector - Pluggable 2-way screw terminal, 5.08mm pitch

NMEA 0183 Port Listener Talkers

• Number of Listener / Input Ports - One isolated NMEA 0183 Listener
• Number of Talker / Output Ports - Six isolated NMEA 0183 Talkers
• Compatibility - Fully NMEA 0183, RS422 RS232 compatible. RS-485 Listener compatible
• Speed/baud rate - 4800 to 115200 bps
• Talker Output Voltage drive - >= 2.2V (differential) into 100
• Talker Output Current drive - 20mA max.
• Talker Output Protection - Short circuit and ESD
• Talker Data Indicator - LED, Orange (Flashes at data rate)
• Listener Input Voltage Tolerance - -15V to +15V continuous, -35V to +35V short term (<1 second)
• Listener Input Protection - Current limited, overdrive protection to 40V DC, and ESD protection
• Listener Data Indicator - LED, green (Flashes to indicate valid input)
• Connectors - Pluggable 2/3-way screw terminals, 5.08mm pitch

Isolation

• NMEA 0183 Listener - OPTO-Isolated, Hi-Pot tested to 1000V
• NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V

Mechanical

• Housing Material - 316 Stainless Steel
• Dimensions - 139mm (L) x 128mm (W) x 27mm (H)
• Weight - 335g
• Mounting - Bulkhead mount or DIN rail mount (DIN kit 1)

Approvals and Certifications

• EMC - EN 60945:2002 (Fourth Edition 2002), DNVGL-CG-0339:2019
• Compass safe distance - 600mm
• Type Approval Certificate - RINA
• Operating Temperature - -25 to +70C
• Storage Temperature - -40 to +85C
• Maximum Relative Humidity (RH) - 95% @ 55C
• Environmental Protection - IP40
• Guarantee - 5 Years

The Actisense PRO NMEA Buffer Model PRO-NBF-1 is an essential component for reliable marine navigation and communication systems, expertly designed to buffer and isolate NMEA 0183 signals. With its robust stainless steel housing and advanced isolation technology, this device ensures safe, consistent data transmission from a single Talker to up to six Listeners, making it ideal for commercial and professional marine installations. The buffer's ISO-Drive outputs, combined with OPTO-isolation on the input, protect connected devices from voltage spikes and ground loops, safeguarding your investment and enhancing system stability. Equipped with pluggable screw terminals and a professional DIN rail mounting system, installation is quick, straightforward, and adaptable to various configurations, saving both time and effort. Helpful LEDs provide real-time status updates on power, input, and output activity, facilitating easy troubleshooting and maintenance. The PRO-NBF-1 supports multiple communication protocols, including RS-232, RS-422, and RS-485, with baud rates ranging from 4800 to 115200 bps, ensuring broad compatibility across different marine equipment. Its design adheres to stringent safety and environmental standards, including RINA type approval and EMC compliance, with an operating temperature range from -25°C to +70°C. The device's IP40 rating offers protection against dust and solid objects, making it suitable for demanding marine conditions. Built to last, the PRO-NBF-1 is a versatile and reliable solution for distributing NMEA data streams, ensuring that your navigation systems operate smoothly and safely, even in challenging environments. Backed by a 5-year warranty, this buffer is a proven choice for professional marine electronics integration.

Features:

• One opto-isolated input for safe signal reception

• Six ISO-Drive outputs for amplifying and distributing data

• Outputs automatically track the input baud rate for seamless communication

• Compatible with RS-232, RS-422, and RS-485 protocols for versatile connectivity

• ISO-Drive technology isolates listener devices to prevent interference and protect the system

• Simple installation with pluggable screw terminals and DIN rail mounting options

• Status LEDs indicate power, input, and output operation for easy diagnostics

• Type approved by RINA, ensuring compliance with marine safety standards

• Robust stainless steel housing provides durability and RF shielding

• Wide operating temperature range from -25°C to +70°C for demanding environments
