Actisense Rear Panel Mount NMEA 2000 Micro 5-Pin Female Connector - Waterproof Panel Mount for Marine Electronics

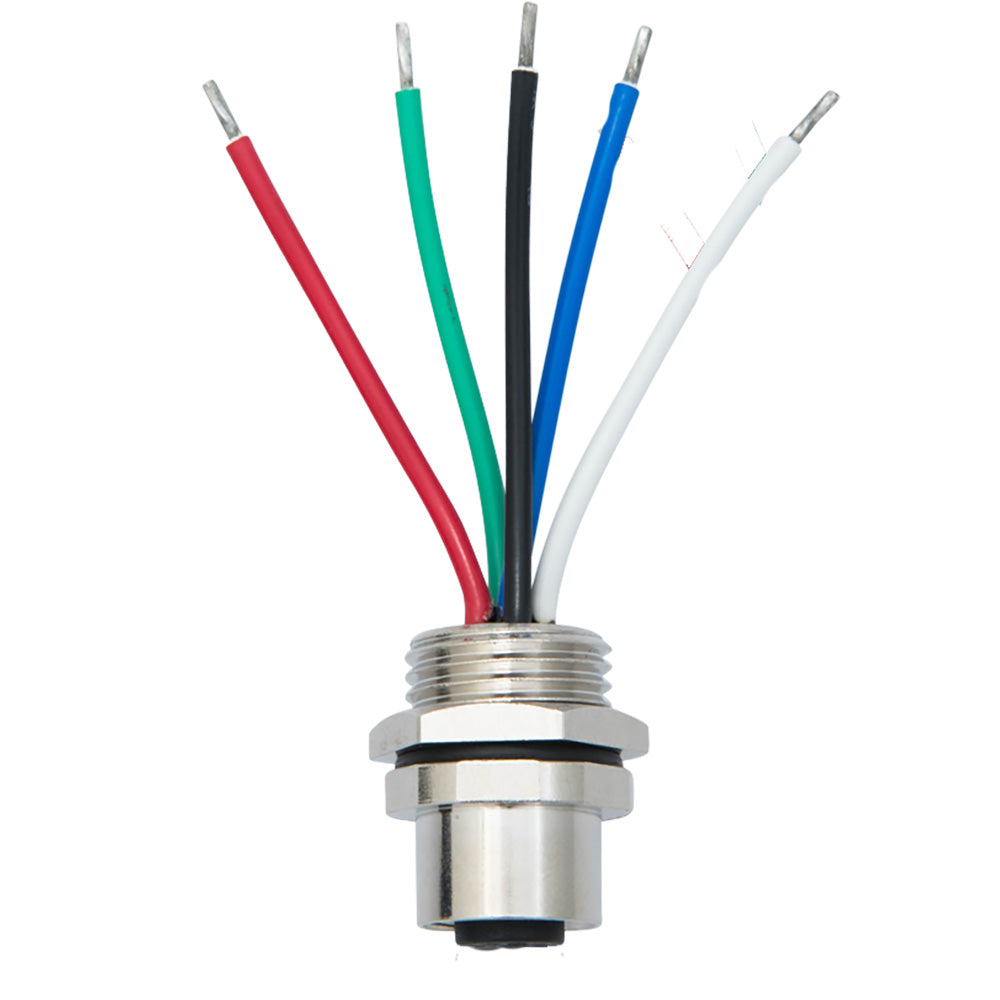

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Female

Panel-mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.

Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.

The female panel mount wired connector can easily replace any of the existing drop glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

Electrical

• Rated Current - 4A
• Rated Voltage - 60VDC

Mechanical

• Contacts - Brass, gold-plated
• Contact Carrier - Nylon GF
• Contact Polarization - Standard M12-A-Polarization
• Mating Thread - M12
• Housing - Brass, nickel-plated
• Mounting Thread - PG9
• Mounting Nut - Brass, nickel plated - PG9
• Mounting Hole Diameter - 15.3mm
• Wires - 18 AWG (stripped and tinned)
• Wire Jacket - PVC
• Weight - 20g

Approvals and Certifications

• Protection - IP67 (when mated)
• Operating Temperature - -25C to +90C
• Connector Specification - Meets IEC61076-2-101

Enhance your marine communication setup with the Actisense Rear Panel Mount NMEA 2000 Micro 5-Pin Female Connector. Designed for reliable, watertight connections, this panel-mount wired connector allows easy integration of NMEA 2000 networks through watertight bulkheads or panels, ensuring your electronic systems remain protected in harsh marine environments. Its waterproof seal guarantees the integrity of the connection, making it ideal for both new installations and upgrades. The female connector seamlessly replaces existing drop glands on the Actisense QNB-1, providing a quick and secure pluggable NMEA 2000 connection option. Crafted with precision using high-quality brass housing and brass, gold-plated contacts, this connector offers durability and corrosion resistance essential for marine applications. The nylon contact carrier with standard M12 polarization ensures proper alignment and secure mating, while the mounting nut and PG9 threaded mounting hole facilitate straightforward installation. With a rated current of 4A and voltage of 60VDC, this connector complies with IEC61076-2-101 standards, meeting rigorous marine safety and performance requirements. The rugged design is rated IP67 when mated, providing excellent protection against dust and water ingress, and operates reliably within temperatures ranging from -25°C to +90°C. Suitable for 18 AWG wires with PVC jackets, it is lightweight at just 20 grams, making it an ideal choice for space-constrained marine setups. Whether you're outfitting a new vessel or upgrading existing systems, the Actisense Rear Panel Mount NMEA 2000 Micro 5-Pin Female Connector ensures robust, waterproof connectivity that stands up to the demands of marine environments. This product is compliant with Prop 65 regulations, ensuring safety and environmental standards are met. For detailed installation instructions, refer to the manufacturer’s manual available online.

Features:

• Waterproof seal: Ensures connection integrity in harsh marine environments

• Rated Current: 4A for reliable power transmission

• Rated Voltage: 60VDC suitable for marine electronics

• High-quality brass housing: Provides corrosion resistance and durability

• Gold-plated brass contacts: Ensures optimal electrical conductivity

• Nylon contact carrier: Maintains proper polarization and secure connection

• Standard M12 polarization: Ensures compatibility and proper mating

• Threaded mounting: Includes PG9 mounting nut and hole for easy installation

• IP67 rated when mated: Offers excellent dust and water ingress protection

• Temperature range: Operates reliably from -25°C to +90°C

• Wire compatibility: Supports 18 AWG, stripped and tinned wires

• Lightweight design: Weighs approximately 0.8 ounces for easy handling
