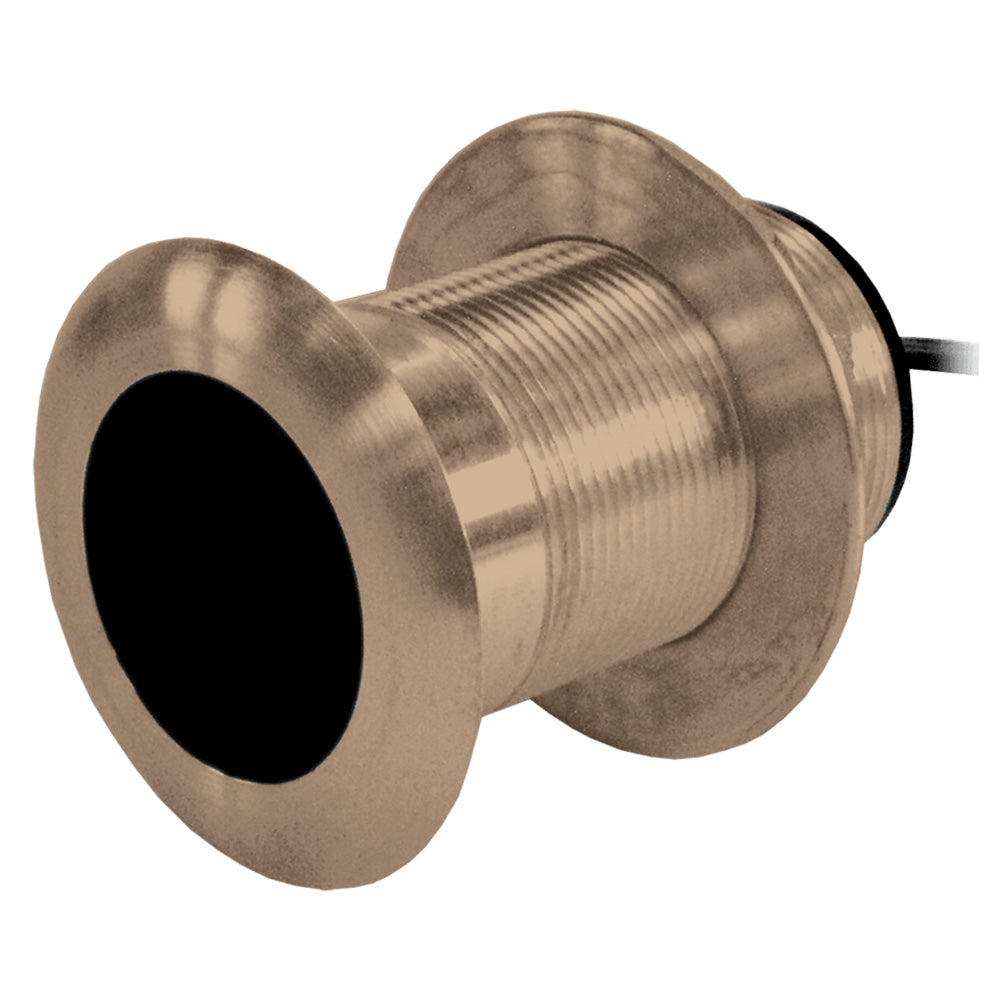

Airmar B117 50/200kHz 600W Dual Frequency Transducer for Marine Navigation and Fish Finding

B117 50/200kHz 600W Mix Match 0 Deadrise

Airmars entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16) extending outside the hull.

Features:

• Depth only or depth and fast-response water-temperature sensing
• 600 W of power
• Dual-frequency element:
• 50 kHz with a wide 45 beamwidth for depth performance to 353 m (1200)
• 200 kHz with a 12 beamwidth for depth performance to 206 m (700)
• Right-angle cable exit saves space and protects the transducer if stepped on
• The included rubber washer allows tightening of the hull nut to irregular hull surfaces
• Low-profile, bronze housing has minimal drag
• Plastic (P319) and stainless steel (SS60) models are also available to accommodate all hull materials

Specifications:

• Power Rating: 600 W
• Max Deadrise Angle: 12
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 8 m (26)
• Hole Size: 51 mm (2)
• Acoustic Window: Urethane
• Common Use: Leisure/Yachting, Fishing
• Conventional Beam: 45/12
• Max Deadrise: Best performance through 7. Accommodates up to 12
• Max Depth: Low frequency- 366 m (1200), High frequency- 206 m (700)
• Mounting Style: Low Profile Thru-Hull
• Retractable housing: No
• Single or Dual Frequency: Conventional Dual Frequency
• Weight: 0.9 kg (2 lbs.)

The Airmar B117 is an essential, entry-level dual-frequency transducer designed for leisure yachting and fishing enthusiasts seeking reliable depth and temperature measurements. Featuring a compact, low-profile bronze housing, this transducer minimizes drag and integrates seamlessly into a variety of vessel hulls, making it ideal for boats up to 26 feet with fiberglass or wood hulls. Its nearly-flush design, with only 5 mm (3/16 inch) extending outside the hull, ensures smooth movement through water, reducing turbulence and enhancing stability.

Equipped with a dual-frequency ceramic element, the B117 offers wide-ranging performance. The 50 kHz setting provides a broad 45-degree beamwidth capable of depth detection up to 1,200 feet (366 meters), ideal for open water navigation and deep-sea fishing. The 200 kHz setting delivers a narrower 12-degree beamwidth, allowing for detailed imaging and depth performance up to 700 feet (206 meters). Power output of 600 watts ensures sharp, fast-response readings that improve fish detection and bottom mapping. The transducer also includes a temperature sensor, providing real-time water temperature data crucial for fish behavior analysis.

Designed with space efficiency in mind, the right-angle cable exit protects the cable and simplifies installation in tight compartments. The included rubber washer adapts to irregular hull surfaces, ensuring a secure fit and optimal acoustic coupling. The B117's versatility extends with available models in plastic and stainless steel to accommodate various hull materials. It is suitable for vessels with a maximum deadrise angle of 12 degrees and is compatible with a broad range of marine electronics systems. This durable, reliable transducer is built for leisure and fishing applications, providing dependable performance in both shallow and deep waters. Please note that this product may require direct manufacturer support for returns or warranty issues, as it cannot be returned to the original point of purchase.

Features:

• Depth only or depth and water temperature sensing for comprehensive marine data

• 600 W power rating ensures clear, responsive readings

• Dual-frequency ceramic element for versatile performance

• 50 kHz with 45-degree beamwidth for deep water detection to 1,200 feet

• 200 kHz with 12-degree beamwidth for detailed imaging up to 700 feet

• Right-angle cable exit for space-saving installation and cable protection

• Rubber washer included for secure mounting on irregular hull surfaces

• Low-profile bronze housing minimizes water resistance

• Compatible with fiberglass and wood hulls, suitable for vessels up to 26 feet

• Designed for leisure yachting and fishing applications, Prop 65 compliant
