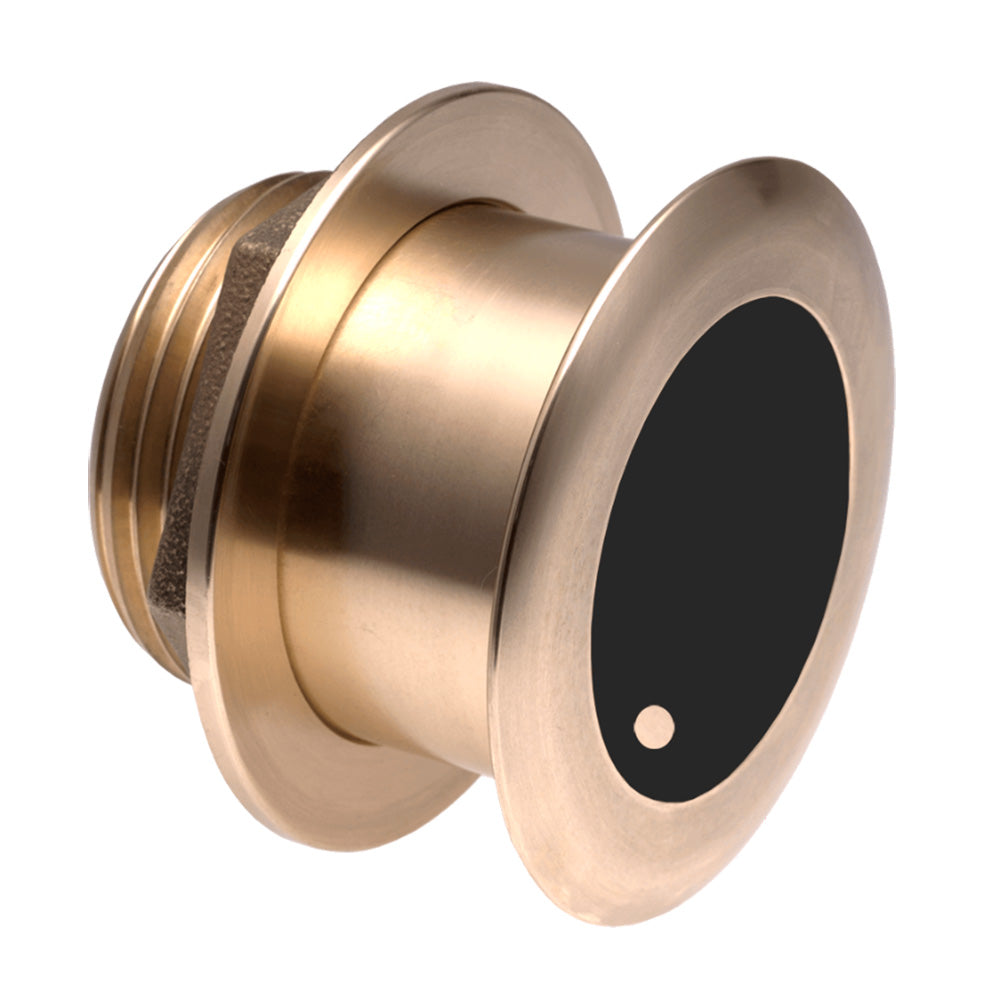

Airmar B175L Bronze 12 Degree Thru-Hull 1kW Transducer for Deep Water Fishing and Navigation

B175L Bronze 12 Degree Thru-Hull 1kW - Requires Mix Match Cable

Airmars low-profile, Chirp-ready transducers are the perfect addition to smaller boats such as center consoles. The B175L transmits across low frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.

Tilted Element transducers have the ceramic element fixed at a 20, 12, or 0 angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

Features:

• Requires Mix Match Cable for Chirp Transducers
• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep-water performance
• Low frequency: 40 to 60 kHz
• 32 to 21 beamwidth
• Maximum depth of 762 m (2500)
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in a fiberglass or wood hull
• Also available in a stainless steel housing (SS175L) for use with all hull materials
• Patented Xducer ID technology

Specifications:

• Power Rating: 1 kW
• Max Deadrise Angle: 24
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 11 m (36)
• Hole Size: Fiberglass or wood hull 95 mm (3-3/4), Metal hull 105 mm (4-1/8)
• Usable Shaft Length: 71 mm (2.80)
• Mounting Style: Tilted Element Thru-Hull
• Acoustic Window: Urethane
• Common Use: Fishing
• Low Frequency: 40-60 kHz
• Low Frequency Beamwidth: 32-21
• Max Deadrise: Up to 24
• Max Depth: 762 m (2500)
• Retractable housing: No
• Single or Dual Frequency: CHIRP-Ready Single-Band
• Tilted Element: Yes
• Weight: 2.7 kg (6 lbs.)

The Airmar B175L Bronze 12 Degree Thru-Hull Transducer is engineered for anglers and boaters seeking reliable and precise depth and temperature readings in demanding deep-water environments. Designed for smaller vessels such as center consoles, this transducer features a low-profile bronze housing that ensures durability and optimal performance in fiberglass or wood hulls. Its Tilted Element design corrects for hull deadrise, orienting the beam directly downward for maximum echo returns, resulting in highly accurate depth measurements even at depths of up to 7,620 feet (2,500 meters). With a power rating of 1 kW, the B175L is capable of delivering excellent deep-water performance across a broad frequency range of 40 to 60 kHz, making it ideal for both fishing and navigation in challenging conditions. The transducer transmits a beamwidth of 32 to 21 degrees, providing broad coverage and excellent target separation at high speeds.

It requires a Match & Match Cable for Chirp functionality, ensuring seamless integration with compatible fish finders and sonar systems. The B175L supports dual functions of depth and water temperature sensing, making it an all-in-one solution for serious anglers. Its robust construction, including a urethane acoustic window and a max deadrise angle of 24 degrees, ensures long-lasting performance in rugged marine environments. Suitable for vessels up to 36 feet, this transducer offers reliable data transmission in diverse hull materials, with mounting holes compatible with fiberglass or wood hulls. For added versatility, a stainless steel housing version (SS175L) is also available for use with all hull types.

Engineered with patented Xducer ID technology, the B175L ensures optimal transducer identification and configuration, simplifying installation and setup. Whether you're cruising, fishing, or navigating complex waterways, the Airmar B175L Bronze Thru-Hull Transducer delivers professional-grade performance, making it an essential component for serious boaters and anglers who demand precision and durability from their marine electronics.

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly for any issues or concerns.

Features:

• Requires Match & Match Cable for Chirp Transducers

• Depth and fast-response water-temperature sensing

• 1 kW of power for great deep-water performance

• Low frequency range: 40 to 60 kHz

• Beamwidth: 32 to 21 degrees

• Maximum depth capability of 7,620 feet (2,500 meters)

• Low-profile, thru-hull bronze housing ensures durability

• Designed for stepped, planing, or displacement hulls

• Suitable for fiberglass or wood hulls; stainless steel option available

• Patented Xducer ID technology for seamless integration
