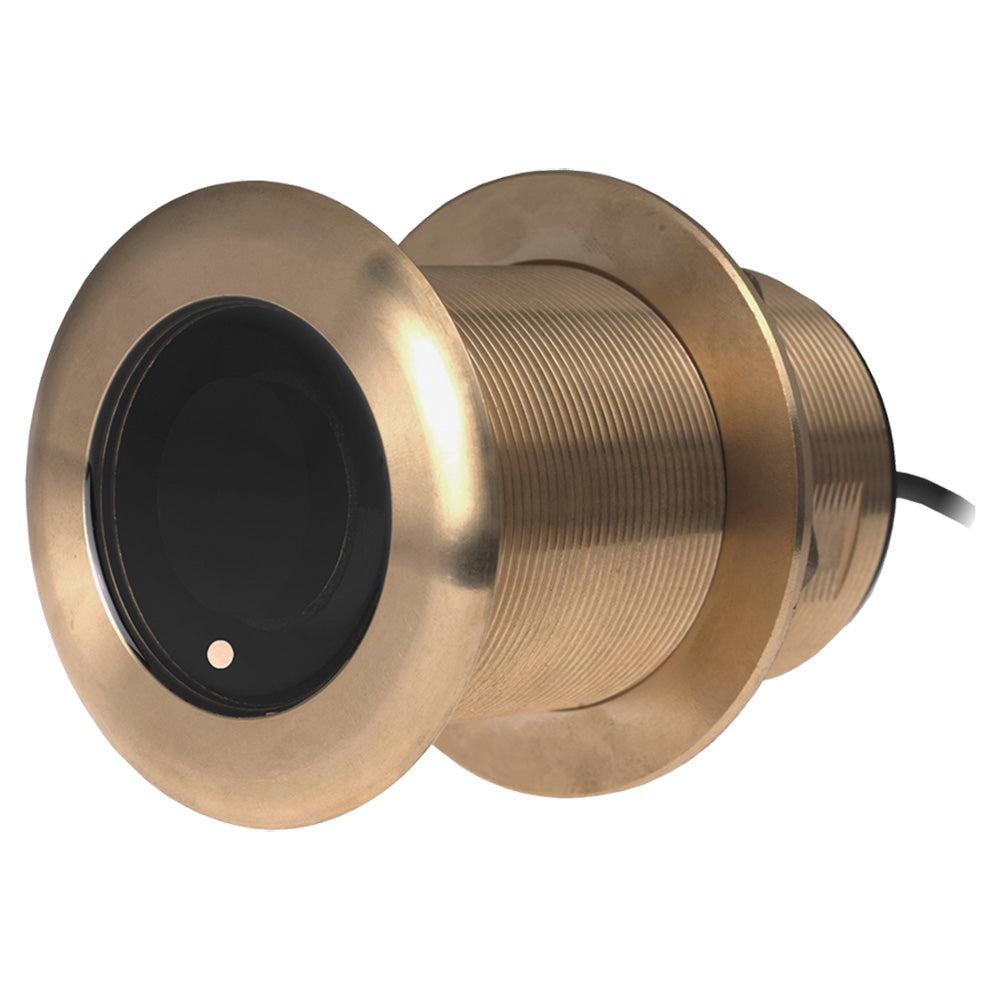

Airmar B60 12-Degree Tilt Thru-Hull Transducer with Dual Frequency for Accurate Depth and Temperature Readings

B60 12 Degree Tilt Thru Hull Req Mix Match Cable

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmars popular Tilted Element feature. This Tilted Element transducer has the ceramic element fixed at either a 20 or 12 angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth readings.

Features:

• Depth and fast-response water temperature sensing
• 600W of power
• Dual-frequency element:
• 50 kHz with a wide 45 beamwidth for depth performance to 353 m (1200)
• 200 kHz with a 12 beamwidth for depth performance to 206 m (700)
• Perfect for center-console or trailered boats
• Low-profile bronze housing extends only 5 mm (3/16) outside the hull
• No effect on your boats running performance
• Bronze housing for fiberglass or wood hull
• Also available in a stainless steel housing (SS60) for use with all hull materials

Specifications:

• Power Rating: 600W
• Max Deadrise Angle: 24
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 8 m (26)
• Hole Size: 60 mm (2-3/8)
• Usable Shaft Length: 68.5 mm (2.70)
• Acoustic Window: Urethane
• Common Use: Leisure/Yachting, Fishing
• Conventional Beam: 45/12
• Max Deadrise: Up to 24
• Max Depth: Low frequency- 366 m (1200), High frequency- 206 m (700)
• Mounting Style: Tilted Element Thru-Hull
• Retractable housing: No
• Single or Dual Frequency: Conventional Dual Frequency
• Tilted Element: Yes
• Weight: 1.4 kg (3 lbs.)

The Airmar B60-12-MM is a high-performance 600W transducer designed for precise depth measurement and water temperature sensing, ideal for leisure, yachting, and fishing applications. Featuring Airmar's innovative Tilted Element technology, this transducer is engineered to optimize signal return by correcting for hull deadrise angles up to 24 degrees, ensuring accurate readings even when installed nearly flush with the hull. Its dual-frequency operation provides versatility, with a 50 kHz beamwidth for deep water performance up to 1,200 feet and a 200 kHz beamwidth for shallower depths up to 700 feet, making it suitable for a wide range of boating environments. The bronze housing, which extends only about 5 mm outside the hull, maintains a low profile that does not impact your vessel's performance, making it perfect for center-console or trailered boats with fiberglass or wooden hulls. The transducer's robust design and reliable performance are complemented by its compatibility with vessels up to 26 feet in length, and it supports maximum deadrise angles of 24 degrees, ensuring versatile installation options. The B60-12-MM also features a urethane acoustic window for durability and clear signal transmission, with no retractable housing required for straightforward installation. Whether you need accurate depth readings, water temperature data, or both, this transducer delivers consistent, reliable performance, backed by Airmar's reputation for quality and innovation. Please note that this model is Prop 65 compliant, ensuring it meets safety standards for use in the United States.

Features:

• Depth and water temperature sensing for comprehensive marine monitoring

• 600W power rating ensures strong signal transmission

• Dual-frequency operation with 50 kHz and 200 kHz for versatile depth performance

• Beamwidth of 45° at 50 kHz extends depth capability to 1,200 feet

• Beamwidth of 12° at 200 kHz provides detailed shallow water readings up to 700 feet

• Tilted Element technology corrects for hull deadrise angles up to 24 degrees for optimal accuracy

• Low-profile bronze housing extends only 5 mm outside the hull for minimal impact on vessel performance

• Suitable for fiberglass or wooden hulls, with stainless steel housing available (SS60)

• Designed for boats up to 26 feet with a 60 mm (2-3/8 inch) mounting hole

• Reliable, durable construction with urethane acoustic window for longevity
