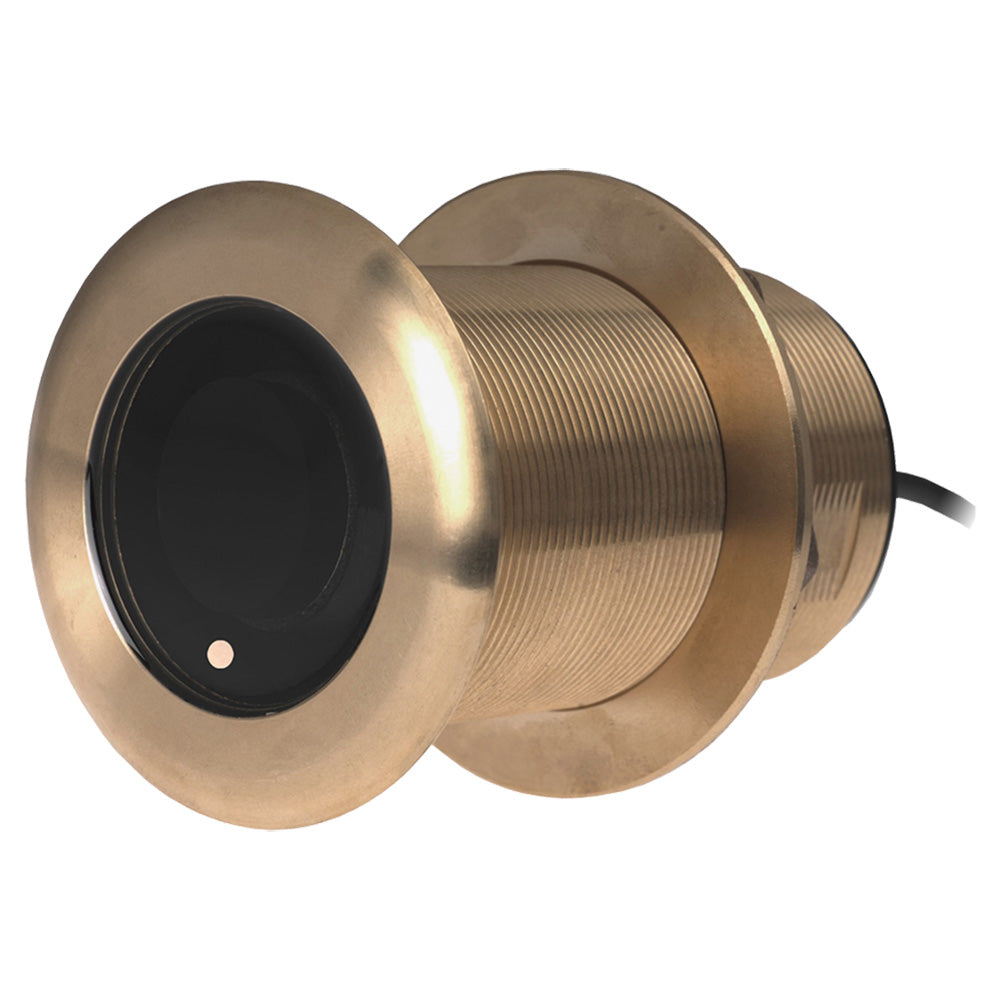

Airmar B60-20-MM Bronze Thru-Hull Transducer with Tilted Element for Accurate Depth and Temperature Readings

B60 20 Bronze Thru-Hull Mix Match Cable Needed

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmars popular, Tilted Element feature. This Tilted Element transducer has the ceramic element fixed at either a 20 or 12 angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. Orienting the beam directly down ensures maximum echo returns to the transducer for more accurate depth readings.

Features:

• Depth and fast-response water temperature sensing
• 600 W of power
• Dual-frequency element:
• 50 kHz with a wide 45 beamwidth for depth performance to 353 m (1200)
• 200 kHz with a 12 beamwidth for depth performance to 206 m (700)
• Perfect for center-console or trailered boats
• Low-profile bronze housing extends only 5 mm (3/16) outside the hull
• No effect on your boats running performance
• Bronze housing for fiberglass or wood hull
• Also available in a stainless steel housing (SS60) for use with all hull materials

Specifications:

• Power Rating: 600 W
• Max Deadrise Angle: 24
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 8 m (26)
• Hole Size: 60 mm (2-3/8)
• Usable Shaft Length: 68.5 mm (2.70)
• Acoustic Window: Urethane
• Common Use: Leisure/Yachting, Fishing
• Conventional Beam: 45/12
• Max Deadrise: Up to 24
• Max Depth: Low frequency- 366 m (1200), High frequency- 206 m (700)
• Mounting Style: Tilted Element Thru-Hull
• Retractable housing: No
• Single or Dual Frequency: Conventional Dual Frequency
• Tilted Element: Yes
• Weight: 1.4 kg (3 lbs)

The Airmar B60-20-MM Bronze Thru-Hull Transducer is designed for serious anglers and boaters seeking precise depth measurement and water temperature sensing. This 600-watt dual-frequency transducer features Airmar’s innovative Tilted Element technology, which corrects for hull deadrise angles up to 24 degrees, ensuring optimal alignment and maximum echo returns. When installed almost flush with the hull, the transducer’s ceramic element is fixed at a 20-degree tilt, providing accurate, reliable readings whether you're cruising or fishing. Its low-profile bronze housing extends just 5 mm outside the hull, making it suitable for fiberglass or wood hulls without affecting your boat’s performance. The durable construction and thoughtful design make this transducer perfect for center-console, trailered boats, or any leisure vessel up to 26 feet long. Its robust 600 W power rating allows for dependable operation in a variety of water conditions, with capabilities to scan depths up to 1200 feet at 50 kHz and 700 feet at 200 kHz. The dual-frequency operation offers versatile performance, with the broad 45-degree beamwidth at 50 kHz for wider depth coverage and the narrower 12-degree beam at 200 kHz for detailed imaging in shallower waters. Designed for ease of installation, the transducer features a 60 mm hole size and includes a urethane acoustic window for clarity and durability. The bronze housing ensures longevity on fiberglass or wood hulls, and an optional stainless steel version (SS60) is available for other materials. Whether for recreational yachting or fishing expeditions, the Airmar B60-20-MM provides accurate depth and temperature data to enhance your boating experience and safety. Please note, this product is not eligible for return to the point of purchase; contact Airmar directly for support or concerns. Prop 65 warning applies as per manufacturer’s guidance, emphasizing safe and compliant use.

Features:

• Depth and water temperature sensing for versatile marine use

• 600 W power for reliable performance in challenging conditions

• Dual-frequency operation: 50 kHz with 45° beamwidth and 200 kHz with 12° beamwidth

• Tilted Element technology corrects for hull deadrise angles up to 24 degrees

• Low-profile bronze housing extends only 5 mm outside the hull for minimal drag

• Designed for fiberglass or wood hulls, with stainless steel housing available

• Suitable for vessels up to 26 feet long

• Easy installation with 60 mm hole size and durable urethane acoustic window
