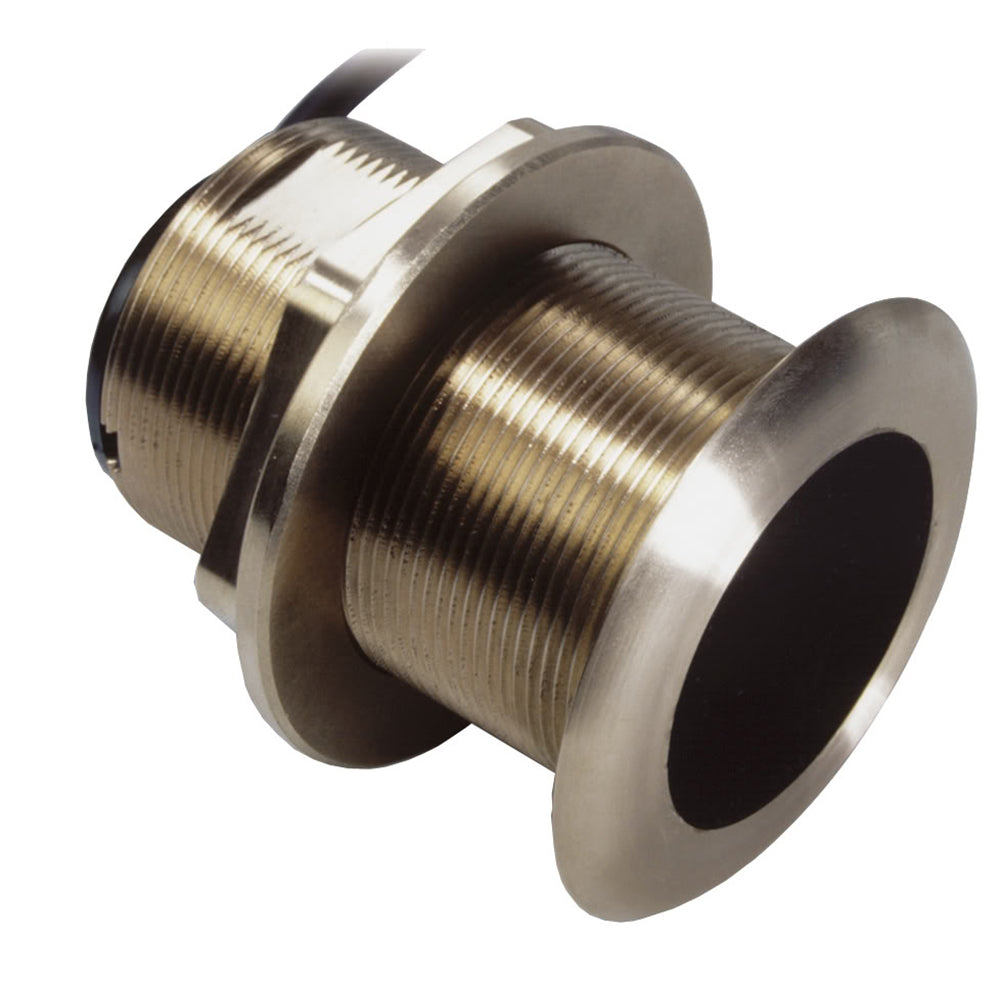

Airmar B60 Bronze Thru-Hull Transducer with Humminbird #9 7-Pin Plug - 12-Degree Deadrise Compatibility

B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 12

The bronze B60-12 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5mm (3/16") extending outside of the hull.

Features:

• Engineered for center-console and trailered boats

• Low-profile protrusion below the hull
• No affect on your boats running performance
• Arrow on cap points toward keel when installed
• Built-in temperature sensor
• Boat Size: Up to 8M (25')
• Bronze transducer housing

Specifications:

• Weight: 1.4 kg (3 lb)

• Hull Deadrise: Up to 24
• Acoustic Window: Urethane

The Airmar B60 Bronze Thru-Hull Transducer is engineered for precise depth measurement and reliable performance on center-console and trailered boats. Crafted with durable bronze housing, this transducer ensures longevity and resistance to harsh marine environments. Its nearly flush design minimizes drag, with only 3/16 inch extending outside the hull, making it ideal for high-speed applications without impacting boat performance. The built-in temperature sensor provides additional data for navigation and fishing efficiency, enhancing your onboard experience. The transducer features a tilted ceramic element inside the housing, optimized for built-in, deadrise compensation up to 24 degrees, delivering accurate, high-quality echo returns for superior depth readings. The arrow indicator on the cap points toward the keel when installed, ensuring correct positioning for optimal operation. Suitable for boats up to 25 feet, this model supports a wide range of vessel sizes and types, providing dependable performance in diverse marine conditions. The integrated urethane acoustic window offers protection while maintaining clear signal transmission. Whether you're engaging in recreational fishing or navigating challenging waters, the Airmar B60 transducer ensures consistent, accurate depth and temperature data, supporting safe and successful boating adventures. Please note, this product may not be returned to the point of purchase; consult the manufacturer for support if needed.

Features:

• Engineered for center-console and trailered boats

• Low-profile protrusion below the hull for reduced drag

• Minimal impact on boat's running performance

• Arrow on cap indicates correct keel alignment during installation

• Built-in temperature sensor for enhanced data collection

• Suitable for vessels up to 25 feet (8 meters)

• Constructed with durable bronze housing for longevity
