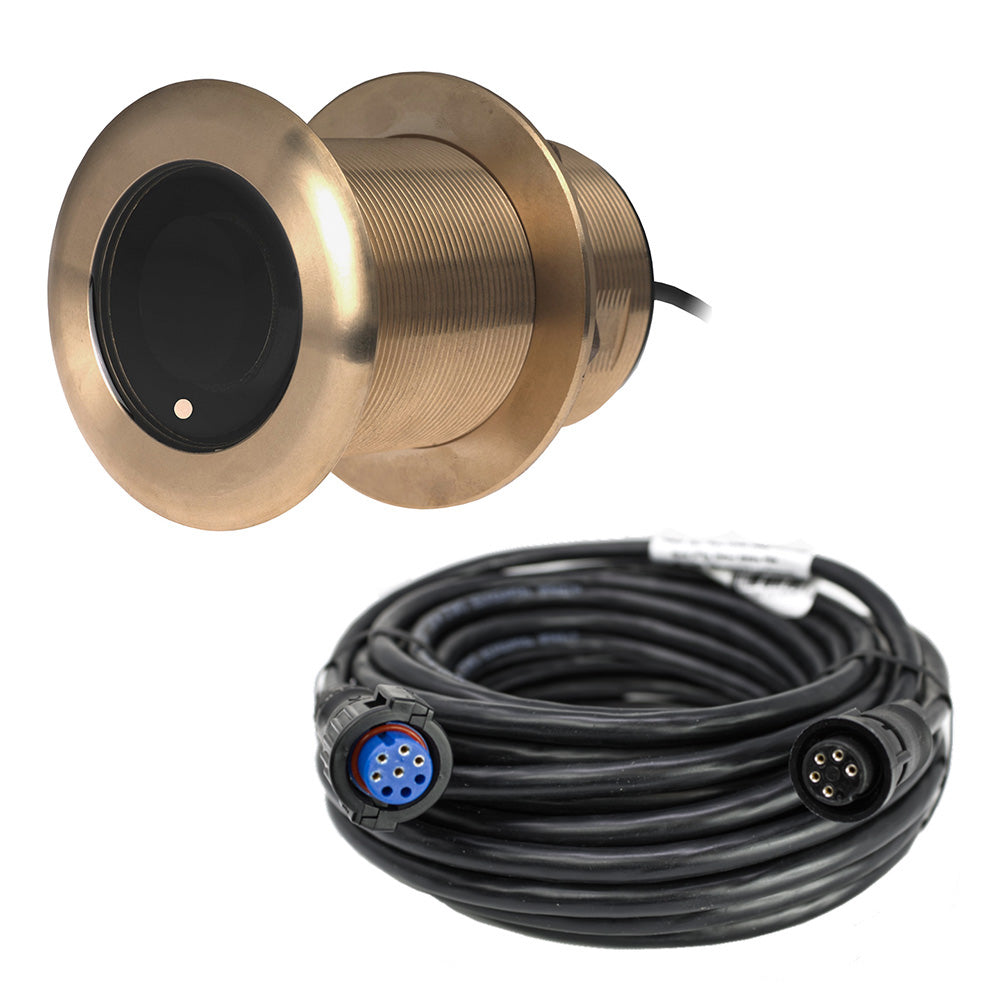

Airmar B60 Thru-Hull Transducer 12° Tilt with Garmin 8-Pin Connector for Depth and Temperature

B60 Thru-Hull Transducer 12 Tilt, 8-Pin Garmin Connector, Depth Temperature

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmars popular, Tilted Element feature. This Tilted Element transducer has the ceramic element fixed at either a 12 angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth

Features:

• The depth and fast-response water temperature sensing
• 600W of power
• Dual-frequency element: 50 kHz with a wide 45 beamwidth for depth performance to 353 m (1200) and 200 kHz with a 12 beamwidth for depth performance to 206 m (700)
• Perfect for center-console or trailered boats
• Low-profile bronze housing extends only 5 mm (3/16) outside the hull
• No effect on your boats running performance
• Bronze housing for fiberglass or wood hull
• Fixed 12 tilted version for 8 to 15 hull deadrise angles
• Cable-Length: 10 m (33)
• Hole Size: 60 mm (2-3/8)
• Usable Shaft Length: 68.5 mm (2.70)
• Connector: Garmin 8-Pin

The Airmar B60 Thru-Hull Transducer is designed for anglers and boaters seeking reliable, high-performance depth and water temperature measurements. Engineered with a 600-watt power output and dual-frequency operation, this transducer ensures precise sonar readings whether you're navigating shallow waters or exploring deep-sea environments. Its Tilted Element technology corrects for hull deadrise angles between 8 and 15 degrees, providing optimal beam orientation and maximum echo return for more accurate depth readings. The transducer's low-profile bronze housing extends just 5 mm outside the hull, making it ideal for fiberglass or wooden boats without affecting your vessel’s performance or speed.
