B75HW High Wide Tilted Element Chirp Transducer - 20 Degree Deadrise, 600W Thru Hull
Requires Mix and Match Cable for the appropriate Fishfinder it will be connected to.
Airmars low-profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high-frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30 beamwidth for maximum coverage under the boat. The B75H transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 meters (350').
B75HW transmits across the following bandwidth: High frequency 150 to 250 kHz

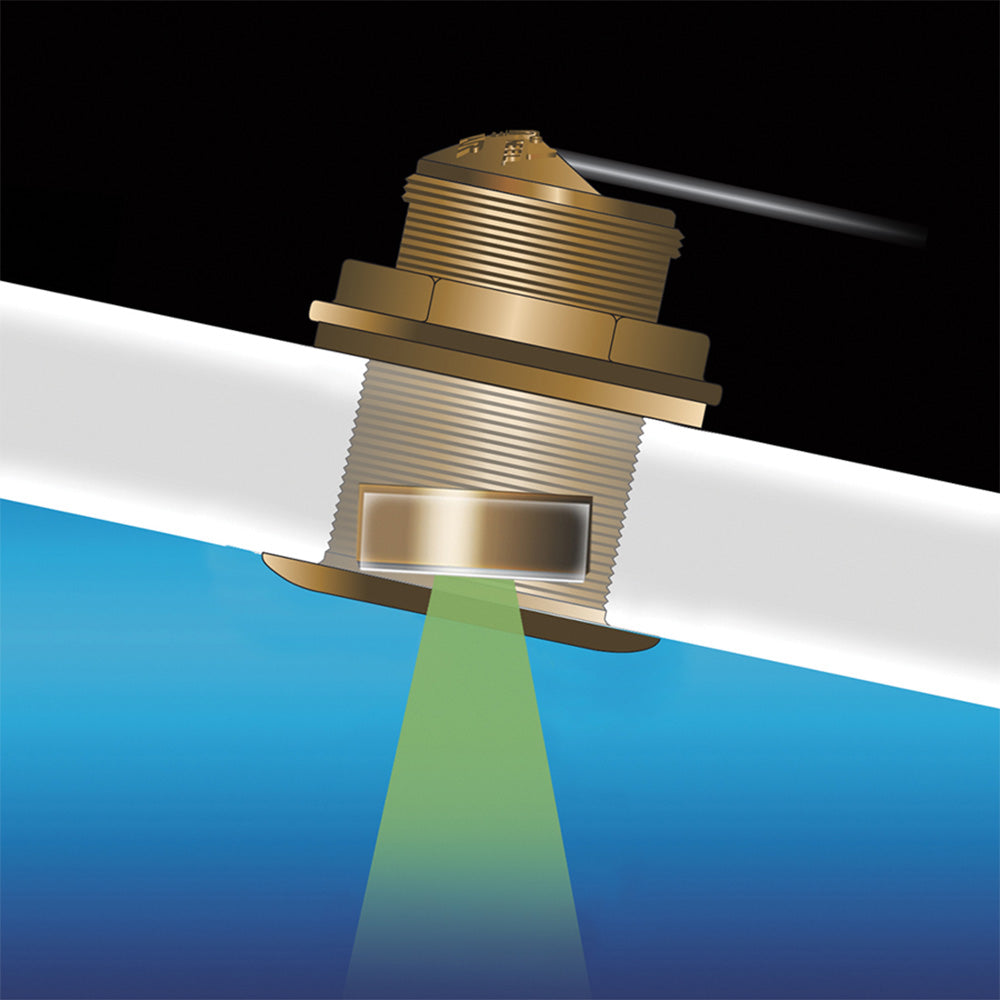

The transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. Fixed 20 tilted version for 16 to 24 hull deadrise
Features:
- Depth and fast-response water-temperature sensor
- 600 W with a maximum depth performance of 106 m (350')
- High frequency: 150 to 250 kHz
- 30 beamwidth
- High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns
- Low-profile, thru-hull housing provides good resolution at speed when installed properly

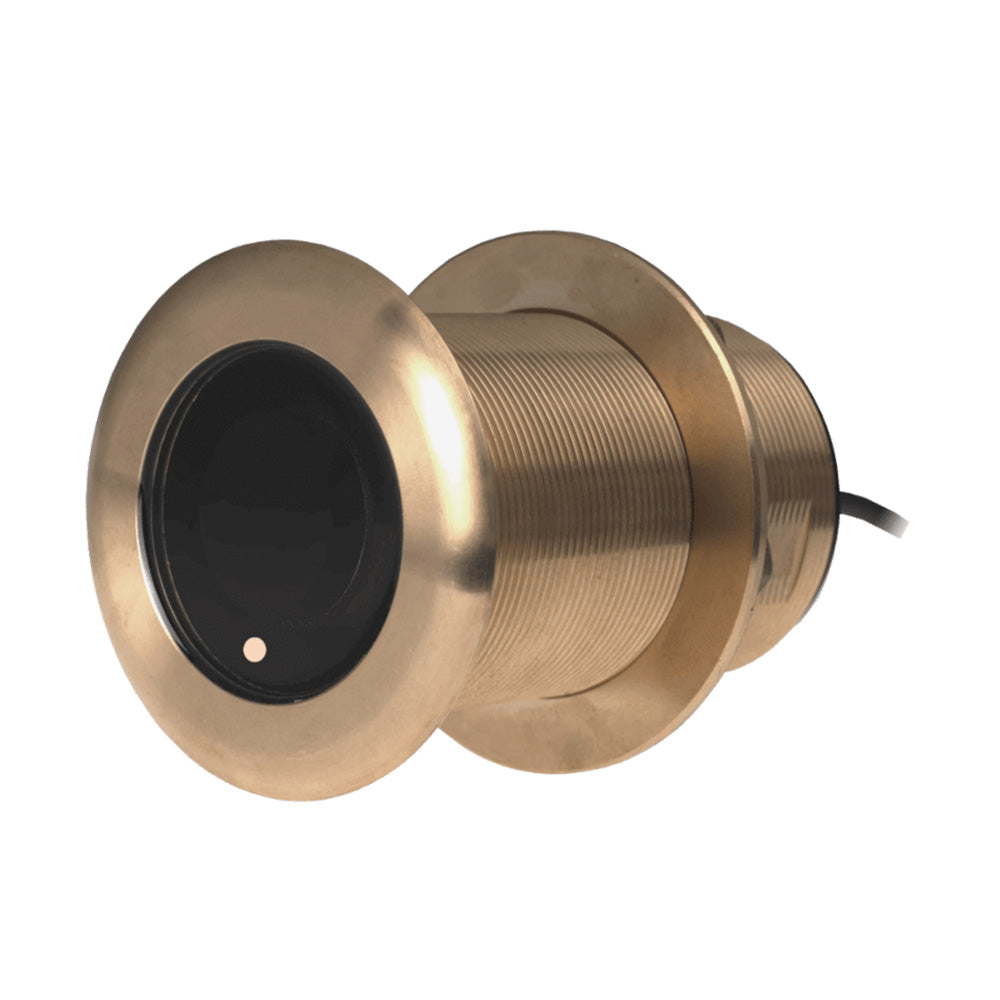

- Bronze housing for use on stepped, planing, or displacement hull
- Exclusive Xducer ID technology
- Fixed 20 tilted version for 16 to 24 hull deadrise

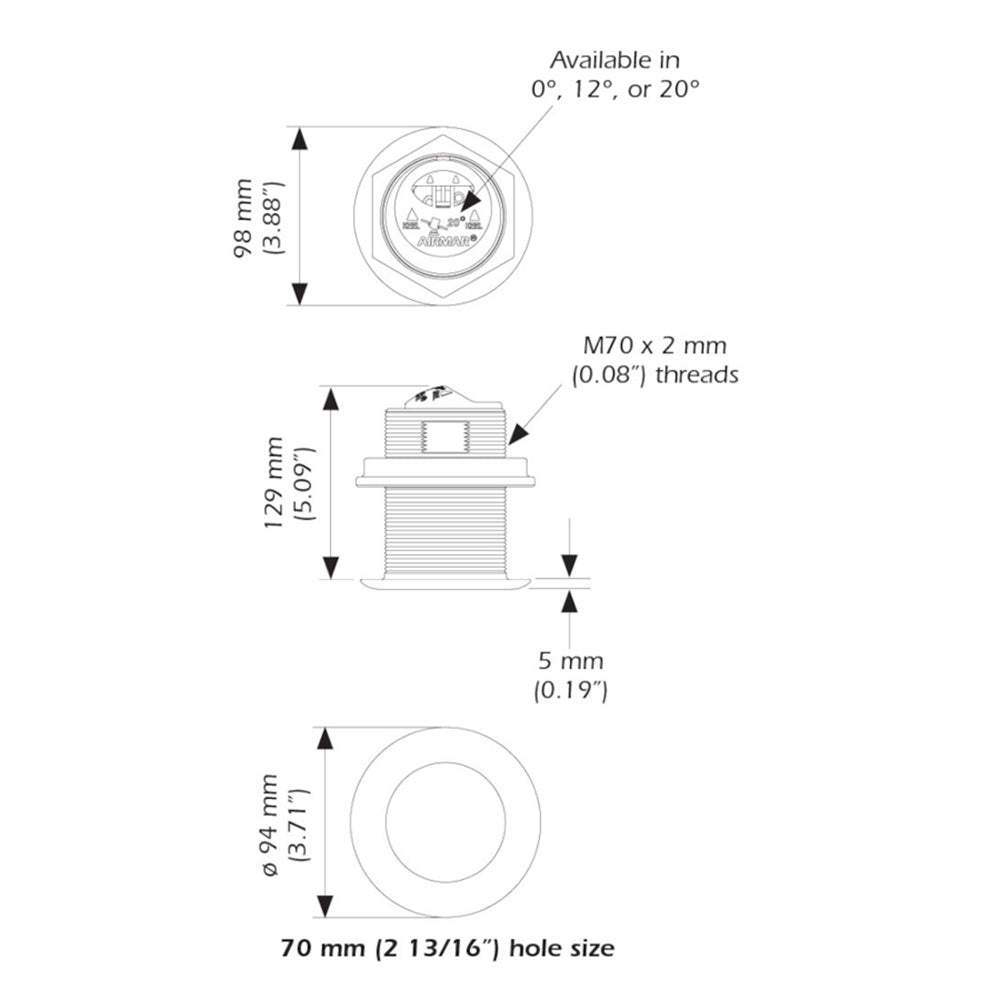

- Hole Size: 70 mm (2-13/16")
- CHIRP-Ready Single-Band
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Airmar B75HW High-Wide CHIRP Transducer is designed for smaller boats, including center consoles, that need detailed fish-finding performance through a low-profile thru-hull installation. With a fixed 20° tilted element, the B75HW is intended for hulls with a 16° to 24° deadrise and helps orient the sonar beam directly downward for accurate depth readings and strong echo returns.
This Airmar CHIRP transducer operates across the 150 to 250 kHz high-frequency band and provides a wide 30° beamwidth for broad coverage beneath the boat. The high-frequency range supports shallow-water performance, bottom detail, baitfish separation, schooling gamefish identification, and clear fish-target returns. Its 600-watt output delivers depth performance to 350 feet when properly installed, while the integrated fast-response water-temperature sensor adds useful information for on-water fish-finding.
The bronze housing is suitable for stepped, planing, and displacement hulls. The low-profile thru-hull design installs nearly flush with the hull and provides resolution at speed when installed properly. The B75HW features Airmar Xducer ID technology and is CHIRP-ready for compatible fishfinders. A Mix and Match cable is required for connection to the appropriate fishfinder and must be selected separately based on the display system.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Key Features
-
High-wide CHIRP coverage: Uses a 150–250 kHz high-frequency band with a 30° beamwidth for broad coverage and detailed target returns.
-
600-watt performance: Provides maximum depth performance to 350 feet.
-
20° tilted element: Designed for hulls with a 16° to 24° deadrise to help direct the sonar beam downward.
-
Low-profile thru-hull design: Installs nearly flush with the hull and supports resolution at speed when properly installed.
-
Integrated sensors: Includes depth capability and a fast-response water-temperature sensor.
-
CHIRP-ready connectivity: Requires a separately selected Mix and Match cable for the compatible fishfinder.
Product Details
-
Brand: Airmar
-
Model/Part Number: B75C-20-HW-MM
-
Transducer type: High-wide CHIRP, single-band, thru-hull
-
Power: 600 watts
-
Frequency: 150–250 kHz high frequency
-
Beamwidth: 30°
-
Maximum depth performance: 350 feet
-
Tilt angle: Fixed 20°
-
Recommended hull deadrise: 16° to 24°
-
Housing: Bronze
-
Hole size: 2-13/16 inches
-
Required accessory: Mix and Match cable for the appropriate fishfinder
Choose the Airmar B75HW for high-frequency CHIRP detail, wide coverage, and a low-profile thru-hull installation tailored to compatible marine electronics and hull configurations.
