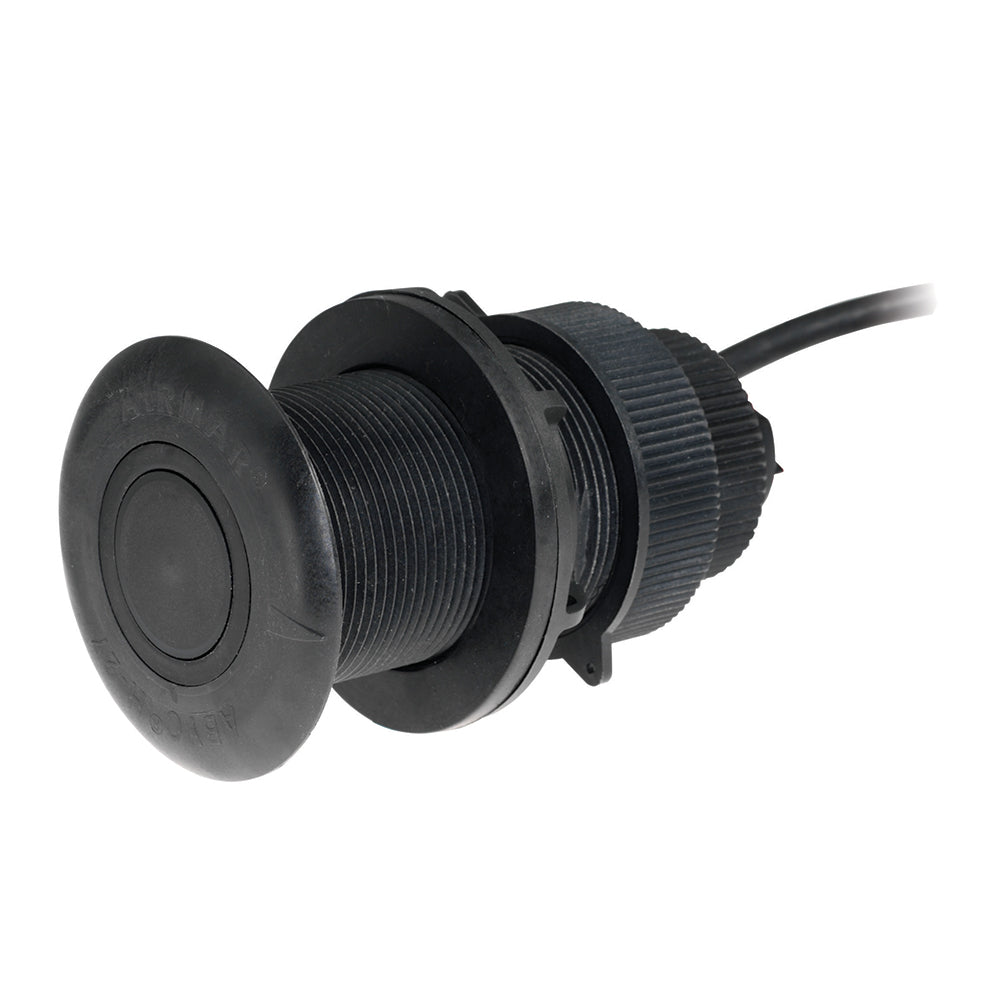

Airmar DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20° Fixed Tilt for Depth and Temperature Measurement

DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20

• Function: Depth / Temperature, Material: Plastic, Fixed Tilt Angle: 20
• Frequency: 235 kHz, Cone: 12, Power: 100 Watts RMS
• Connector: 5-Pin NMEA 2000

Features:

• Low-profile, retractable, thru-hull transducer offers depth and temperature functions in a single, compact housing
• Tilted Element Transducer unique design tilts ceramic element inside transducer housing, giving all the advantages of a fairing block without a hull protrusion
• Available in fixed 0, 12 or 20 tilt perfect for power and sail boat applications
• Low-profile housing compensates for hull deadrise, does not affect hull performance and provides accurate readings at high speeds
• Designed with Airmar's exclusive Broadband Ceramic Technology, 235 kHz element improves resolution without sacrificing sensitivity
• Smart Sensor with embedded microelectronics transducer element and signal processor are only millimeters apart
• 235 kHz frequency prevents mutual interference with other echo sounders on vessel
• Retractable housing with self-closing valve minimizes water flow into the vessel when transducer is removed for servicing

Specifications:

• Mount: Thru-hull
• Fixed Element Tilt Angle: 20 (for 16 - 24 hull deadrise)
• Housing Material: Plastic
• Connector: 5-pin NMEA 2000
• Cable Length: 20 ft.
• Frequency: 235 kHz
• Cone: 12
• Power: 100 Watts RMS
• Depth Sensor Range: 1.6 - 594 ft.
• Acoustic Window Material: Urethane
• Compatible Hull Materials: Fiberglass or metal
• Hole Diameter for Installation: 2"
• Dimensions: 4.92" H x 2.94" OD

The Airmar DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor is designed for precise depth and temperature measurements on power and sailboats. Featuring a low-profile, retractable housing, this transducer seamlessly integrates into your vessel’s hull, offering a streamlined solution with minimal impact on hull performance. Its innovative tilted ceramic element provides accurate readings while eliminating the hull protrusion typically associated with fairing blocks, making it ideal for vessels with hull deadrise ranging from 16 to 24 degrees. Crafted from durable plastic, the sensor's fixed 20-degree tilt ensures consistent performance across various hull types, enhancing navigational safety and data accuracy at high speeds.

Features:

• Low-profile, retractable thru-hull transducer combines depth and temperature functions in a compact design

• Tilted Element Transducer design tilts ceramic element inside housing, avoiding hull protrusions and maintaining hydrodynamics

• Available in fixed 0, 12, or 20-degree tilt options, compatible with power and sailboats

• Housing material: durable plastic with a self-closing valve for water management during servicing

• Utilizes Airmar's exclusive Broadband Ceramic Technology for high-resolution, sensitive measurements

• Embedded microelectronics ensure close proximity between transducer element and signal processor for optimal performance

• Operating at 235 kHz frequency to prevent mutual interference with other echo sounders

• Cabled with a 20-foot NMEA 2000 5-pin connector for simple integration into marine networks

• Designed to operate efficiently on fiberglass or metal hulls with a hole diameter of 2 inches
