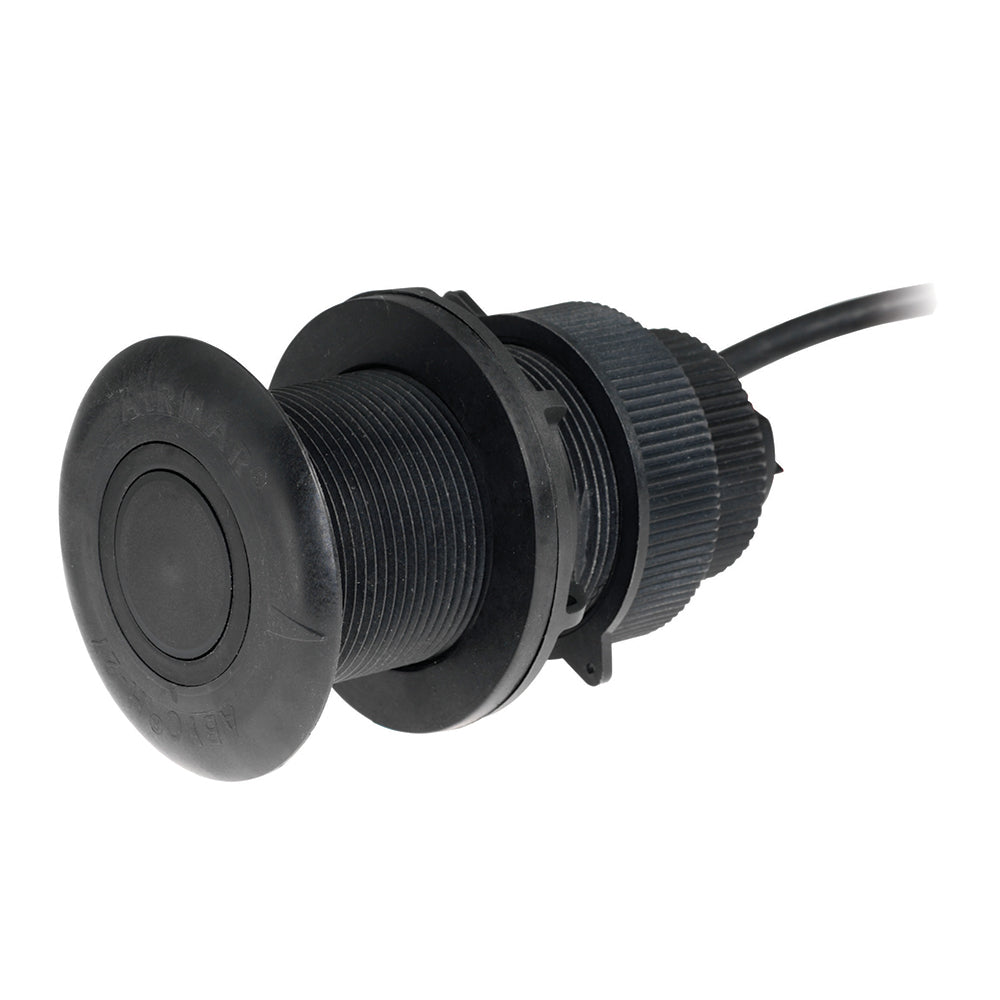

Airmar DT812PV-235-N2 235kHz Plastic Thru Hull Smart Sensor with 12° Tilt and NMEA 2000 Output

DT812PV-235-N2 - 235kHz - Plastic Thru Hull Smart Sensor - 12 Tilt - NMEA 2000 - 6M Cable

Airmar has taken its proven Tilted Element and broadband technologies and applied them to its leading line of Smart Sensors. The DT800 is a low-profile, retractable, thru-hull sensor that computes accurate depth and temperature data and sends it to any NMEA 0183 or NMEA 2000 display. The DT800 operates at a frequency of 235 kHz and can run simultaneously with other Airmar 50/200 kHz transducers on-board with no interference. The broadband ceramic delivers depth readings to 183 m (600'), as well as accurate shallow-water readings in as little as 500 mm (1.6'). Available in fixed 0, 12, or 20 tilt, the DT800 is perfect for power and sailboat applications. It is sold with a choice of rugged housings plastic, bronze, or stainless steelto accommodate any vessel type or hull material. These low-profile housings do not affect hull performance and will provide accurate readings at high speeds.

Airmar's Smart Sensors have embedded microelectronicsthe transducer element and signal processor are only millimeters apart. The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth and temperature data is a single cable into a compatible device or display. Because the ceramic is tilted inside the housing, the transducer beam is oriented straight down, resulting in strong bottom echo returns and accurate depth readings. The retractable housing with a self-closing valve reduces water flow into the vessel when the transducer is removed for cleaning.

Smart Sensor Features

• Broadband ceramic available with 0, 12 and 20 tilt options
• Enhanced depth performance
• Maximum Depth Range: 180M (594)
• Minimum range 0.5M (1.6)
• Urethane face provides better sensitivity
• Excellent high-speed performance
• Fixed 12 tilt for 8 to 15 deadrise
• NMEA 2000 output
• 100 W RMS power
• Frequency: 235 kHz
• Cone: 12
• All models have depth and temperature
• 235 kHz eliminates interference with fishfinders
• Retractable insert provides ease of serviceability
• Usable Shaft Length: 57mm (2.25)
• 6M(19.8) NMEA 2000 devicenet cable and connector
• 51mm (2) housing
• Blanking plug included
• Accommodates maximum hull thicknesses 54 mm (2 1/8)
• Accommodates minimum hull thicknesses 6.3 mm (0.25)

The Airmar DT812PV-235-N2 is a high-performance, broadband thru-hull smart sensor designed for precise depth and temperature measurements on both power and sailboats. Operating at 235 kHz, this sensor utilizes Airmar's proven tilted element and broadband ceramic technologies to deliver accurate readings in both deep and shallow waters, with a maximum depth range of up to 594 feet and a minimum of just 1.6 inches. Its low-profile, retractable housing with a self-closing valve ensures easy maintenance without compromising hull performance, making it suitable for vessels with hull thicknesses up to 2 1/8 inches. The sensor's 12-degree tilt aligns the beam vertically for optimal bottom echo returns, resulting in reliable data even at high speeds. Constructed with durable plastic housing, the DT812PV-235-N2 is designed to withstand harsh marine environments while maintaining precise operation. Its NMEA 2000 compatibility simplifies integration with modern marine electronics, providing seamless data transfer to displays and chartplotters. The embedded microelectronics process signals internally, reducing wiring complexity and enhancing reliability. Additionally, the sensor's urethane face enhances sensitivity, ensuring accurate depth and temperature readings in various conditions. With a rugged design, high-speed performance, and ease of service, the Airmar DT812PV-235-N2 is an excellent choice for boaters seeking dependable, hassle-free depth sensing in a compact, low-profile package.

Features:

• Broadband ceramic with 12° tilt for precise depth measurement

• Maximum depth range: 594 feet (180 meters)

• Minimum depth detection: 1.6 inches (0.5 meters)

• Urethane face for improved sensitivity

• Operates at 235 kHz frequency, eliminating interference with fishfinders

• Compatible with NMEA 2000 networks for easy system integration

• Retractable housing with self-closing valve for simple maintenance

• Fixed 12° tilt suitable for hulls with 8 to 15 degrees deadrise

• Power handling up to 100 W RMS

• Includes 6-meter NMEA 2000 cable and connector
