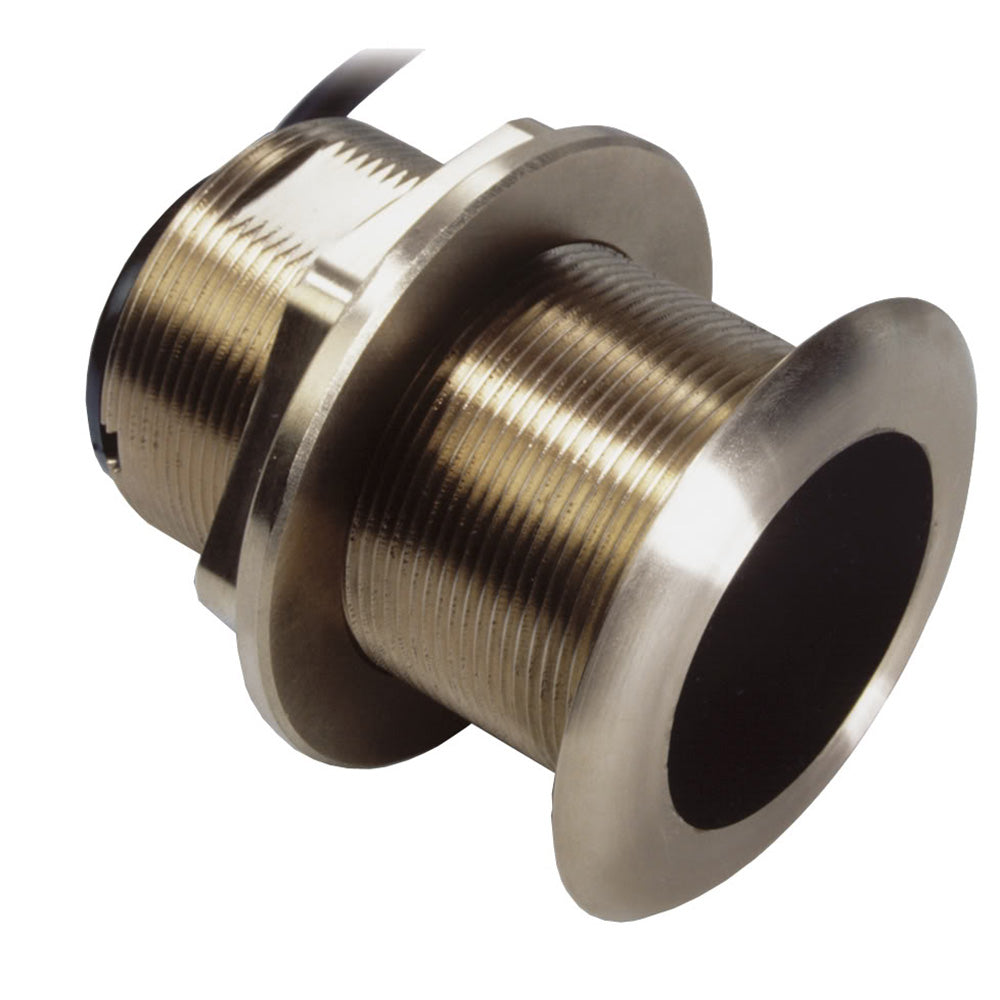

Airmar Navico B60 Thru Hull Transducer with 12° Tilt, 9-Pin Xsonic Connector, Depth & Temperature – Ideal for Boats with 8-15° Deadrise

B60 Thru Hull Transducer 12 Tilt, 9-Pin Xsonic Connector, Depth Temperature

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmars popular, Tilted Element feature. This Tilted Element transducer has the ceramic element fixed at either a 12 angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth

Features:

• The depth and fast-response water temperature sensing
• 600 W of power
• Dual-frequency element: 50 kHz with a wide 45 beamwidth for depth performance to 353 m (1200) and 200 kHz with a 12 beamwidth for depth performance to 206 m (700)
• Perfect for center-console or trailered boats
• Low-profile bronze housing extends only 5 mm (3/16) outside the hull
• No effect on your boats running performance
• Bronze housing for fiberglass or wood hull
• Fixed 12 tilted version for 8 to 15 hull deadrise angles
• Cable-Length: 10 m (33)
• Hole Size: 60 mm (2-3/8)
• Usable Shaft Length: 68.5 mm (2.70)
• Connector: Simrad 9-Pin, Lowrance 9-Pin, Navico 9-Pin

The Airmar Navico B60 Thru Hull Transducer with 12° tilt and 9-pin Xsonic connector offers advanced depth and temperature measurement capabilities for a wide range of boat types. Designed with a 600-watt power rating and dual-frequency operation, this transducer ensures precise readings even in challenging conditions. Its innovative Tilted Element technology positions the ceramic element at a 12-degree angle within the housing, which, when installed nearly flush with the hull, compensates for deadrise angles ranging from 8 to 15 degrees. This feature maximizes echo returns and enhances the accuracy of depth readings, providing boaters with reliable navigation data. The transducer's low-profile bronze housing extends only about 5 mm outside the hull, minimizing drag and maintaining excellent performance without impacting your vessel’s handling or speed. Perfect for center-console and trailered boats, the B60
