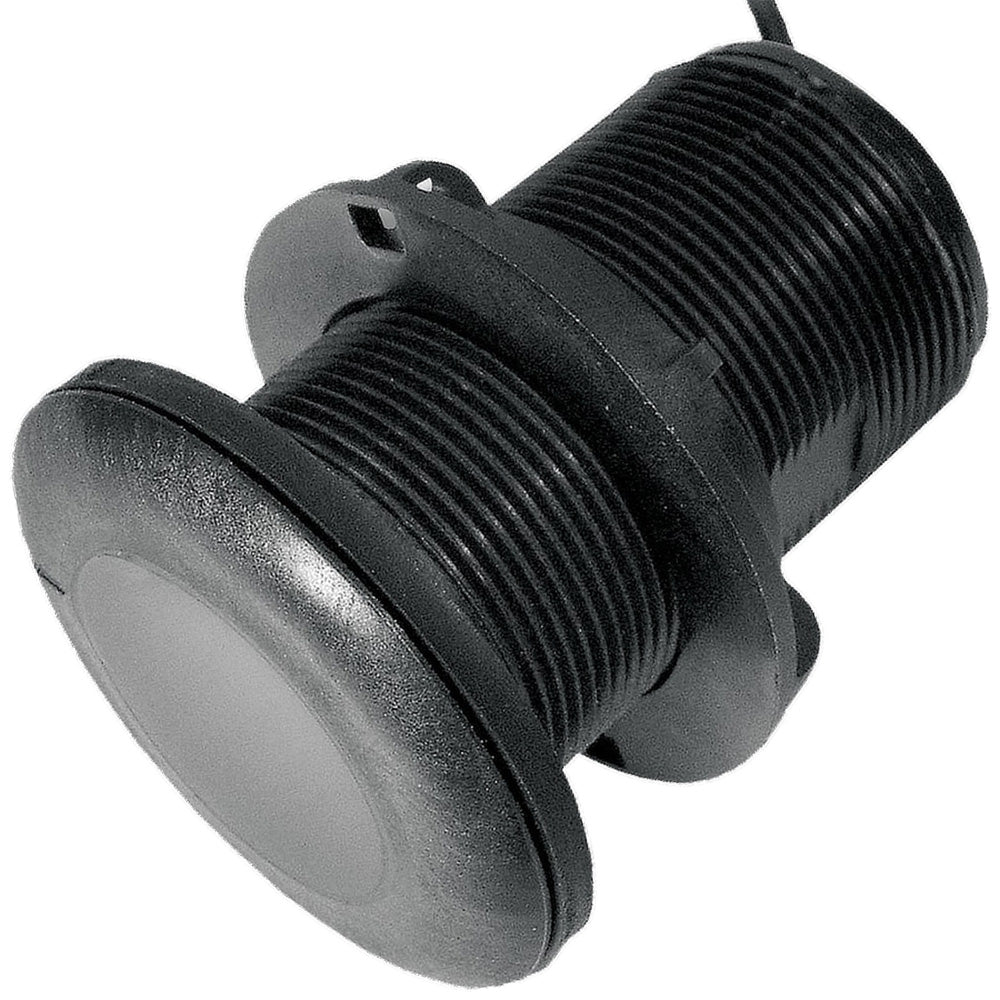

Airmar P319 Plastic Thru Hull Depth & Temperature Transducer - 600W, 50/200 kHz, Requires Mix & Match Cable

P319 Plastic Thru Hull Depth Temperature Transducer - 600W- 50/200kHz - Requires Mix Match Cable

Airmars entry-level P319 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile, plastic housing. The nearly flush design minimizes drag with only 5 mm (3/16) extending outside of the hull.

Features:

• Requires Mix Match Cable for the Fishfinder Unit
• Cable Length 2M
• Deadrise Range: Best performance through 7. Can accommodate up to 12.
• Hole Size: 51 mm (2)
• Usable Shaft Length: 63.5 mm (2.50)
• Depth only or depth and fast-response water-temperature sensing
• 600 W of power
• Dual-frequency element:
• 50 kHz with a wide 45 beamwidth for depth performance to 366 m (1200)
• 200 kHz with a 12 beamwidth for depth performance to 213 m (700)
• Right-angle cable exit saves space and protects the transducer if stepped on
• An included rubber washer allows tightening of the hull nut to irregular hull surfaces
• Low-profile housing has minimum drag
• Plastic housing is ABYC H-27 compliant

The Airmar P319 Plastic Thru Hull Depth & Temperature Transducer offers reliable performance with a sleek, low-profile design ideal for a variety of marine applications. Featuring a dual-frequency ceramic element operating at 50 and 200 kHz, this transducer provides detailed depth readings and fast-response water temperature sensing, making it a versatile choice for anglers and boaters seeking precision. The nearly flush mounting profile minimizes drag, extending only about 3/16 inch outside the hull, which helps maintain a smooth hull surface and optimal boat speed. Its durable plastic housing complies with ABYC H-27 standards, ensuring safety and durability in marine environments.

Designed for easy installation, the P319 accommodates hull deadrise angles up to 12 degrees, with optimal performance through 7 degrees. The transducer requires a 51 mm (2-inch) hole and includes a rubber washer to accommodate irregular hull surfaces, ensuring a tight seal. The right-angle cable exit not only saves space but also protects the cable if stepped on, reducing the risk of damage. The 2-meter Mix & Match cable connection allows flexibility in setup, making it suitable for various boat layouts. The transducer's power handling capacity of 600W ensures reliable signal transmission under demanding conditions, providing accurate depth and temperature data. The dual-frequency element features a broad 45-degree beamwidth at 50 kHz for deep-water performance up to 1200 feet and a narrower 12-degree beamwidth at 200 kHz for shallower depths up to 700 feet. This combination delivers comprehensive underwater imaging and temperature monitoring. Whether you're navigating deep waters or fishing in shallows, the Airmar P319 delivers precise, dependable data to enhance your marine experience.

Features:

• Requires Mix & Match Cable for the Fishfinder Unit

• Cable Length: 2 meters

• Optimal performance through 7° deadrise, accommodating up to 12°

• Hole Size: 51 mm (2 inches)

• Usable Shaft Length: 2.5 inches

• Provides depth measurement and fast-response water-temperature sensing

• 600 watts power capacity for reliable operation

• Dual-frequency ceramic element: 50 kHz with 45° beamwidth for deep water to 1200 feet, 200 kHz with 12° beamwidth for shallower depths to 700 feet

• Right-angle cable exit to save space and protect the cable

• Includes rubber washer for irregular hull surfaces

• Low-profile housing minimizes drag

• Plastic housing is ABYC H-27 compliant
