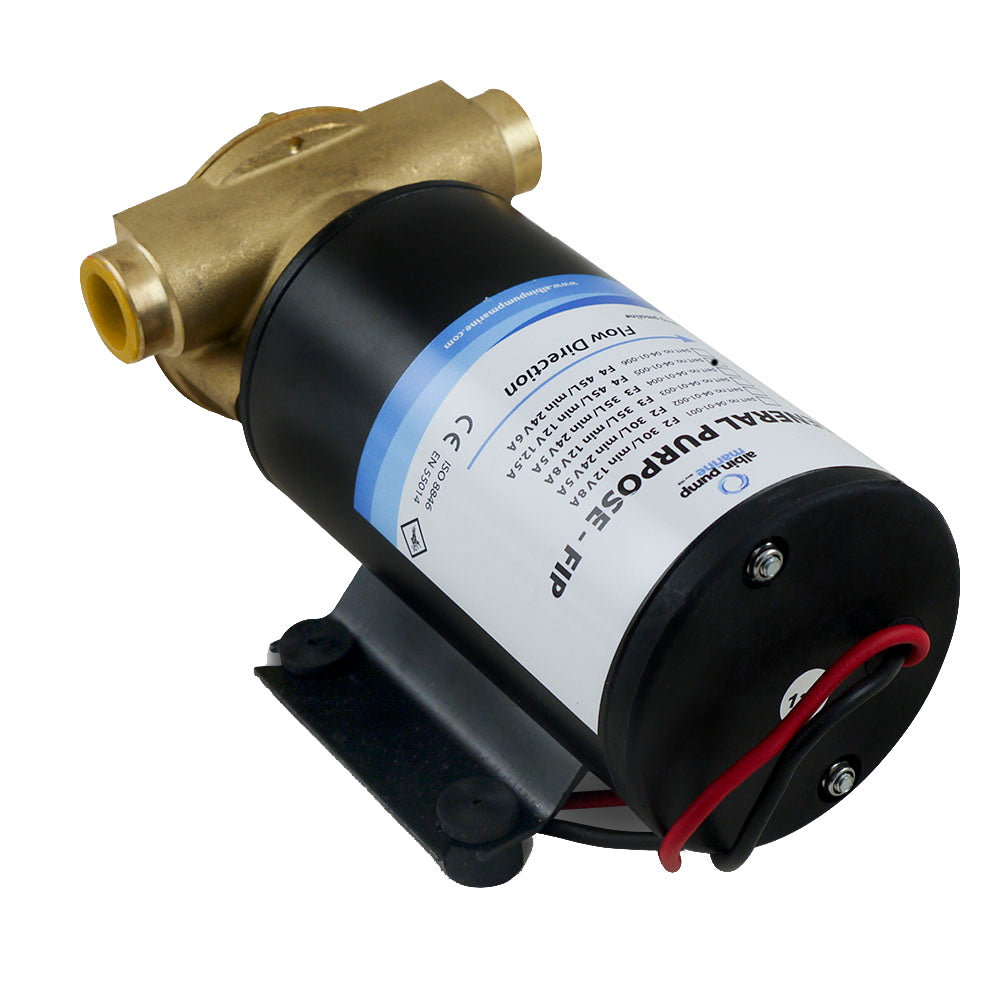

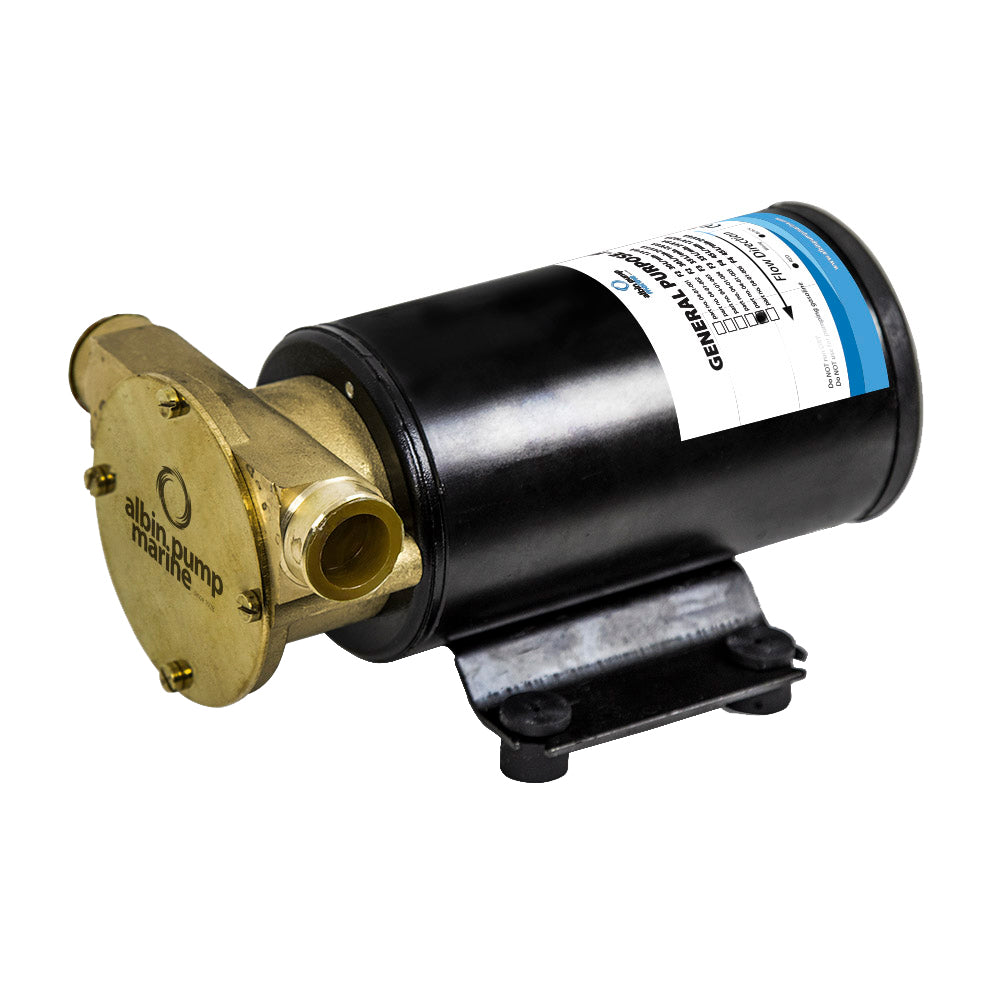

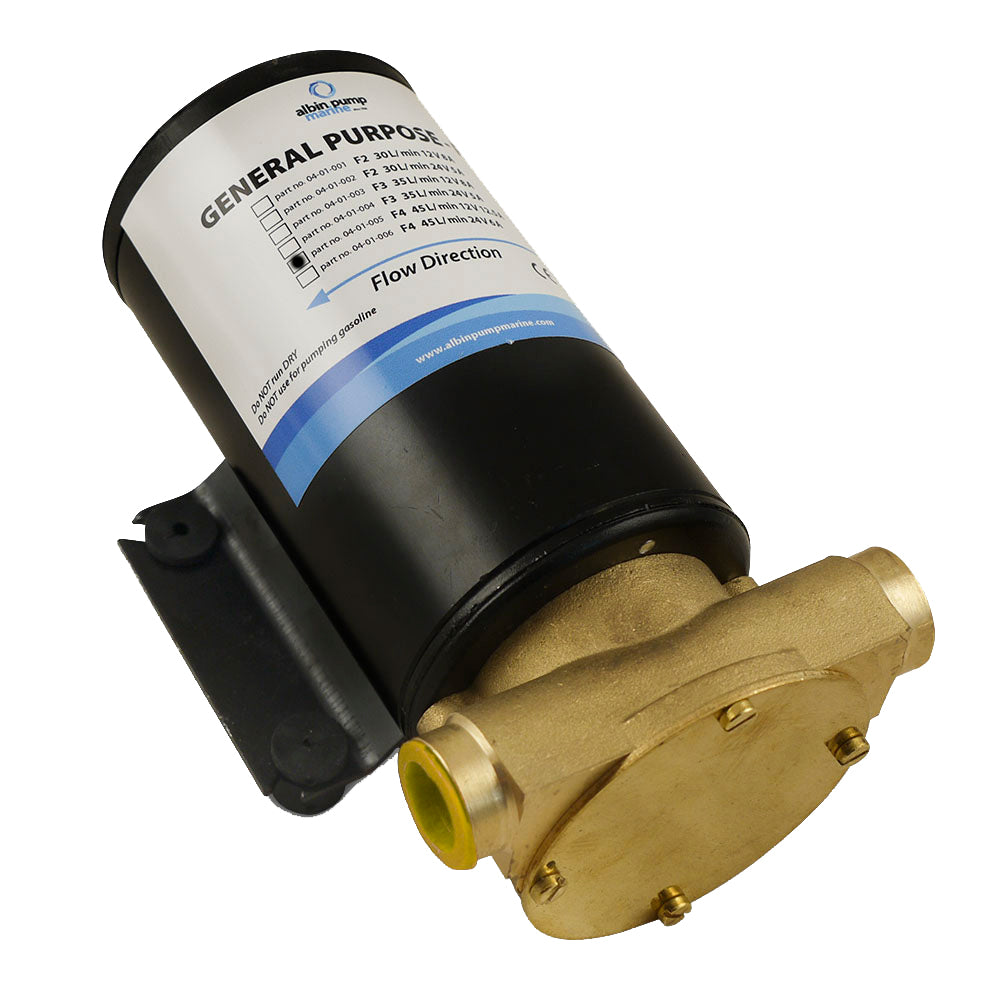

Albin Group Marine General Purpose Pump FIP F4 (12 GPM) - 12V for Water, Oil, and Chemical Transfer

General Purpose Pump FIP F4 (12 GPM) - 12V

DC 12V F4 size FIP pump with capacity 45 L/min (12 GMP). Used for pumping water, oils and chemicals.

Features:

• Pump body in brass, stainless steel shaft and high quality impeller
• Self priming up to 5m vertical lift
• Reversible flow direction by changing polarity
• Interchangeable with Johnson Pump 10-24689-01

Specifications:

• Weight: 1 lg/2 lbs
• Dimensions: 180/7L x 90/3.5H x 120/4.7W mm/in
• Port Connections: 19mm (1/2)
• Fuse: 12,5A

*CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance

The Albin Group Marine General Purpose Pump FIP F4 (12 GPM) is a versatile 12-volt DC pump designed for efficient fluid transfer in marine, industrial, and maintenance applications. With a flow capacity of 45 liters per minute (12 gallons per minute), this robust pump is ideal for pumping water, oils, and chemicals, making it a reliable choice for a variety of operational needs. Its compact design and durable construction ensure long-lasting performance in demanding environments.
Constructed with a brass pump body, stainless steel shaft, and high-quality impeller, the FIP F4 pump offers excellent corrosion resistance and durability. The pump features self-priming capabilities up to 16.4 feet (5 meters) of vertical lift, allowing for flexible installation even in challenging setups. Reversible flow direction by simply changing polarity enhances operational versatility, providing users with greater control over fluid management.
The Albin Group FIP F4 pump is interchangeable with Johnson Pump 10-24689-01, ensuring compatibility with existing systems. It is designed with a 19mm (1/2 inch) port connection for easy integration into various piping configurations. The pump’s lightweight design, at just over 2 pounds, and compact dimensions make it suitable for tight spaces onboard boats, in industrial settings, or for mobile applications. Certified under CE standards (94/25/ECC) and compliant with ISO8846 for small craft, it guarantees safety and electromagnetic compatibility in marine environments.
Whether used for water circulation, chemical dispensing, or oil transfer, the Albin Group FIP F4 pump provides reliable, efficient, and reversible fluid handling. Its rugged construction and versatile features make it an essential component for any operational setup requiring durable and dependable fluid transfer solutions in a compact form factor.

Features:

• Pump body in brass with stainless steel shaft and high-quality impeller for durability and corrosion resistance

• Self-priming capability up to 5 meters (16.4 feet) vertical lift for flexible installation

• Reversible flow direction by changing polarity for added operational versatility

• Interchangeable with Johnson Pump 10-24689-01 for compatibility with existing systems

• Compact and lightweight design for easy integration in tight spaces and mobile applications
