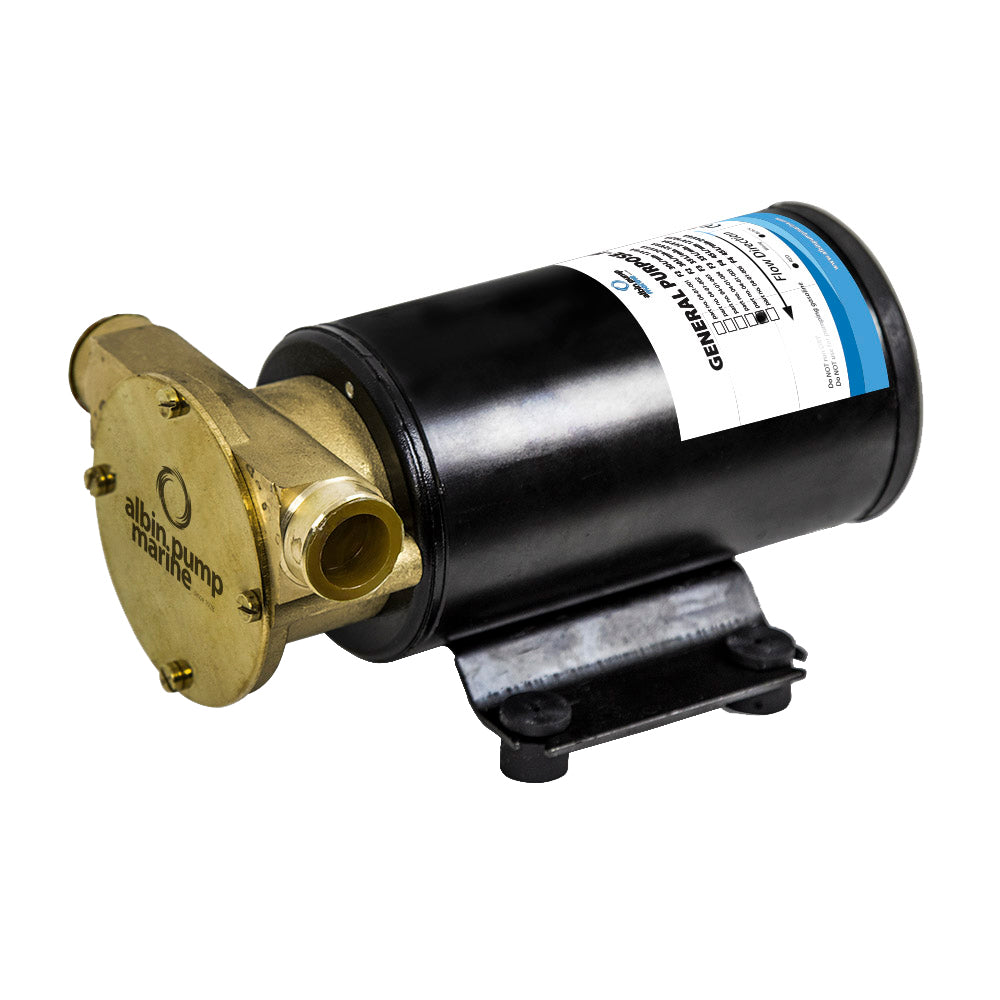

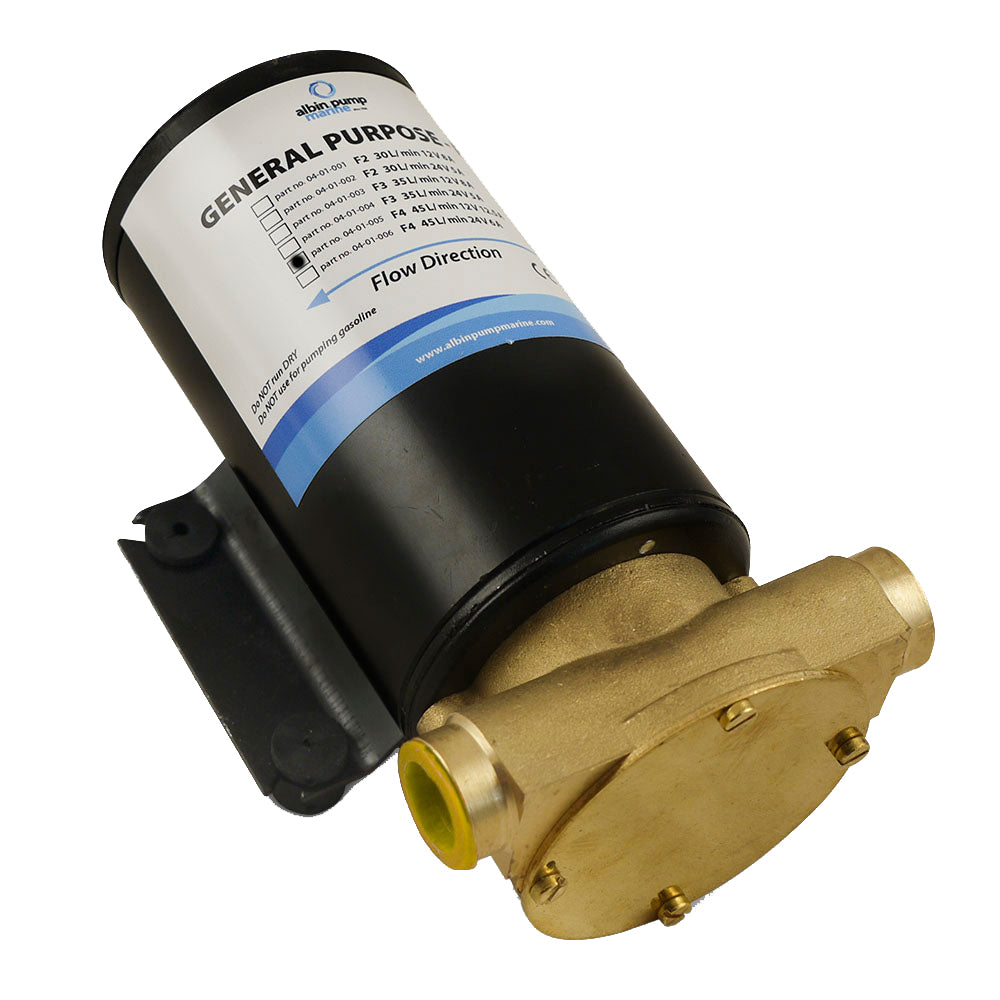

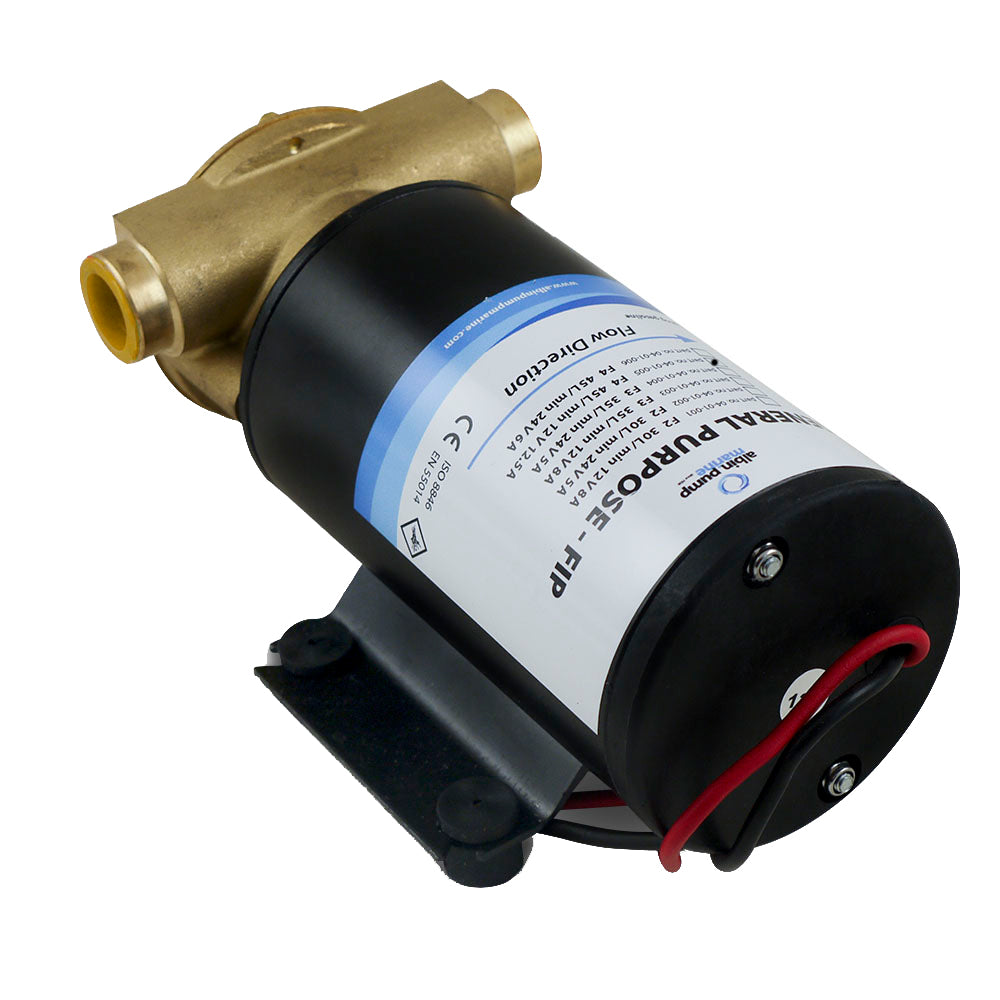

Albin Group Marine General Purpose Pump FIP F4 - 24V, 12 GPM Capacity for Water, Oil & Chemicals

General Purpose Pump FIP F4 - 24V - 12 GPM

DC 24V F4 size FIP pump with capacity 45 L/min (12 GMP). Used for pumping water, oils and chemicals.

Features:

• Pump body in brass, stainless steel shaft and high quality impeller
• Reversible flow direction
• Self priming up to 5m vertical lift
• Interchangeable with Johnson Pump 10-24689-02
• Specifications:
• Weight: 1 kg/2 lbs
• Dimensions: 180/7L x 90/3.5H x 120/4.7W mm/in
• Port Connections: 19mm (1/2)
  • Type: Reversible flow direction by changing polarity
• Fuse: 6A

*Certification: CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance

The Albin Group Marine General Purpose Pump FIP F4 (Part Number: 04-01-006) is a reliable and versatile solution designed for demanding marine applications. Operating on 24V DC, this pump delivers a flow rate of 12 gallons per minute (GPM), making it suitable for transferring water, oils, and chemicals with ease. Constructed with a durable brass pump body, stainless steel shaft, and high-quality impeller, the FIP F4 ensures longevity and resistance to harsh marine environments. Its reversible flow feature allows for flexible installation and operation by simply changing polarity, enhancing its adaptability for various system configurations. Self-priming capability up to 16.4 feet (5 meters) vertical lift means quick startup without the need for manual priming, saving time and effort in maintenance routines. The pump’s compact design, weighing approximately 2 pounds, makes it ideal for space-constrained environments aboard boats or industrial setups. Certified under CE 94/25/ECC, ISO8846 Small Craft, and EMC standards, the FIP F4 meets rigorous safety and electromagnetic compatibility requirements, ensuring reliable performance in marine conditions. Interchangeable with Johnson Pump part 10-24689-02, this pump offers versatility and compatibility for existing systems. The 19mm (1/2 inch) port connections facilitate straightforward integration, while the self-priming feature and reversible flow make it a highly adaptable choice for fluid transfer needs on the water or in industrial settings. Whether used for bilge pumping, oil transfer, or chemical handling, the Albin Group Marine General Purpose Pump FIP F4 is engineered to perform consistently under demanding conditions, providing dependable service and peace of mind for marine operators and technicians alike.

Features:

• Pump body in brass with stainless steel shaft and high-quality impeller for durability

• Reversible flow direction by changing polarity, offering flexible installation options

• Self-priming up to 5 meters (16.4 feet) vertical lift for quick startup

• Interchangeable with Johnson Pump part 10-24689-02 for system compatibility

• Compact design weighing approximately 2 pounds, suitable for space-constrained environments

• Certified under CE, ISO8846, and EMC standards for reliable marine performance

• Port connections of 19mm (1/2 inch) for easy integration into existing systems
