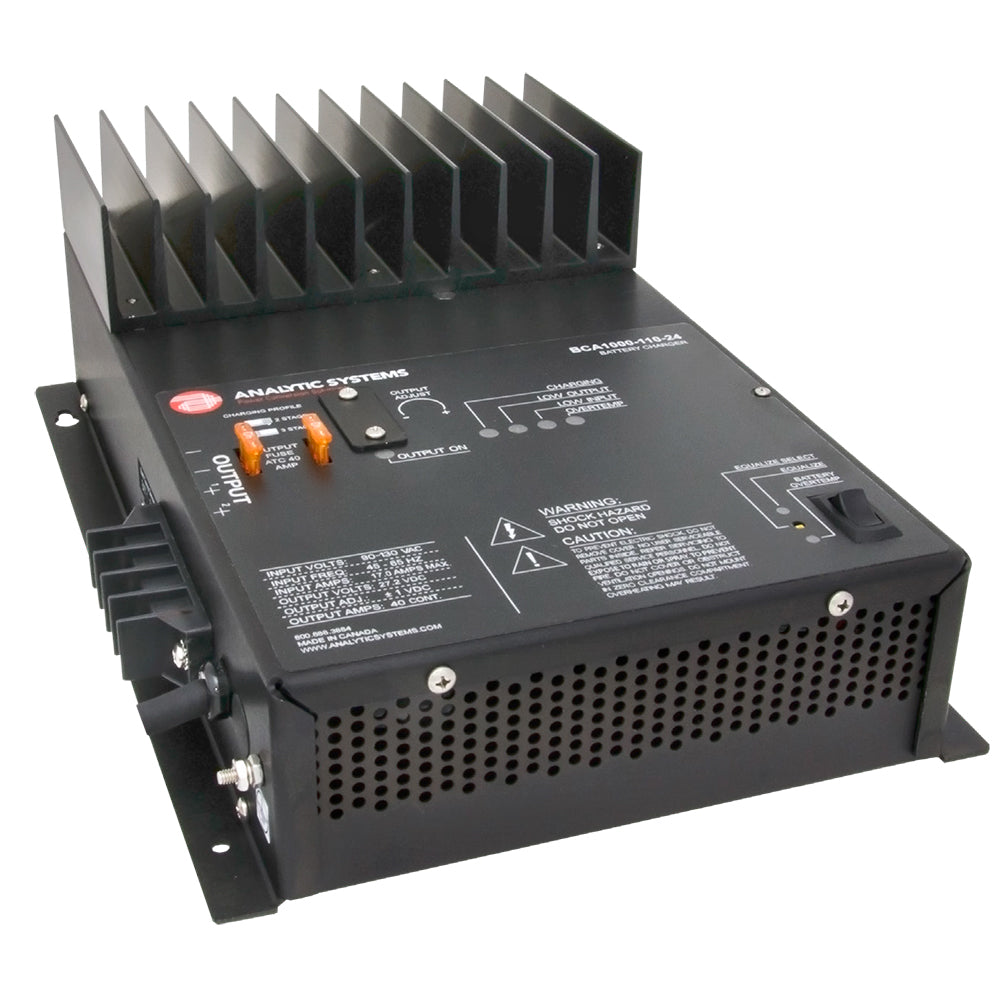

Analytic Systems BCA1000V-110-32 AC Battery Charger, 2-Bank, 30A 32V Output, 110V Input with Digital Volt/Amp Meter

AC Charger 2-Bank 30A 32V Out/110V In with Digital Volt/Amp Meter

The traditional BCA1000 series chargers feature 1000 watts of precision charging power for 1 or 2 banks of batteries at 12, 24, 32, 36, 48 or 72(rail) volts DC. Models are available to operate from 110 or 220 volts AC at 50, 60 or 400 Hz.

All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life.

Features:

• Two or three stage charging profiles
• Adjustable float voltage
• One or two bank charging (three bank optional)
• Temperature compensation
• Low EMI
• Manual equalization mode
• Three year warranty (parts labor)

Analytic Systems BCA1000V-110-32 AC battery charger delivers 1000 watts of precision charging power for one or two banks of 32-volt DC batteries. Designed for applications requiring reliable onboard battery charging, this charger accepts 110-volt AC input and provides 30-amp, 32-volt DC output with an integrated digital volt/amp meter for convenient charging-system monitoring.

The BCA1000 series supports user-selectable two-stage or three-stage charging profiles, allowing the charging approach to be matched to the application. Adjustable float voltage helps support ongoing battery maintenance, while temperature compensation and user-initiated equalization are included to promote effective charging and help maximize battery life. The charger is suitable for customers who need a configurable AC battery charger for one- or two-bank 32-volt systems.

Built for practical system integration, the BCA1000V-110-32 combines selectable charging modes, monitoring, and battery-management functions in one charger. Its low-EMI design helps limit electromagnetic interference, and the manual equalization mode provides a user-controlled option for battery maintenance. A three-bank charging option is available within the BCA1000 series, though this model is specified for two-bank charging.

Key Features

• Two- or three-stage charging: Select the charging profile suited to the battery system and application.
• 30-amp, 32-volt DC output: Provides 1000 watts of precision charging power for 32-volt battery systems.
• Two-bank charging: Charges one or two battery banks from a 110-volt AC input.
• Digital volt/amp meter: Provides convenient visibility into charging voltage and amperage.
• Battery maintenance controls: Includes adjustable float voltage, temperature compensation, and manual equalization mode.
• Low EMI: Designed to help limit electromagnetic interference in the charging environment.

Product Details

• Brand: Analytic Systems
• Part number: BCA1000V-110-32
• Product type: AC battery charger
• AC input: 110 volts
• DC output: 32 volts, 30 amps
• Charging capacity: One or two battery banks
• Power rating: 1000 watts
• Charging profiles: User-selectable two-stage or three-stage
• Metering: Digital volt/amp meter
• Warranty: Three years for parts and labor

Choose the Analytic Systems BCA1000V-110-32 for configurable, monitored charging of one- or two-bank 32-volt battery systems.

Product summary: Analytic Systems BCA1000V-110-32 AC battery charger delivers 30A at 32V with two-bank charging, selectable profiles, and digital volt/amp metering.
