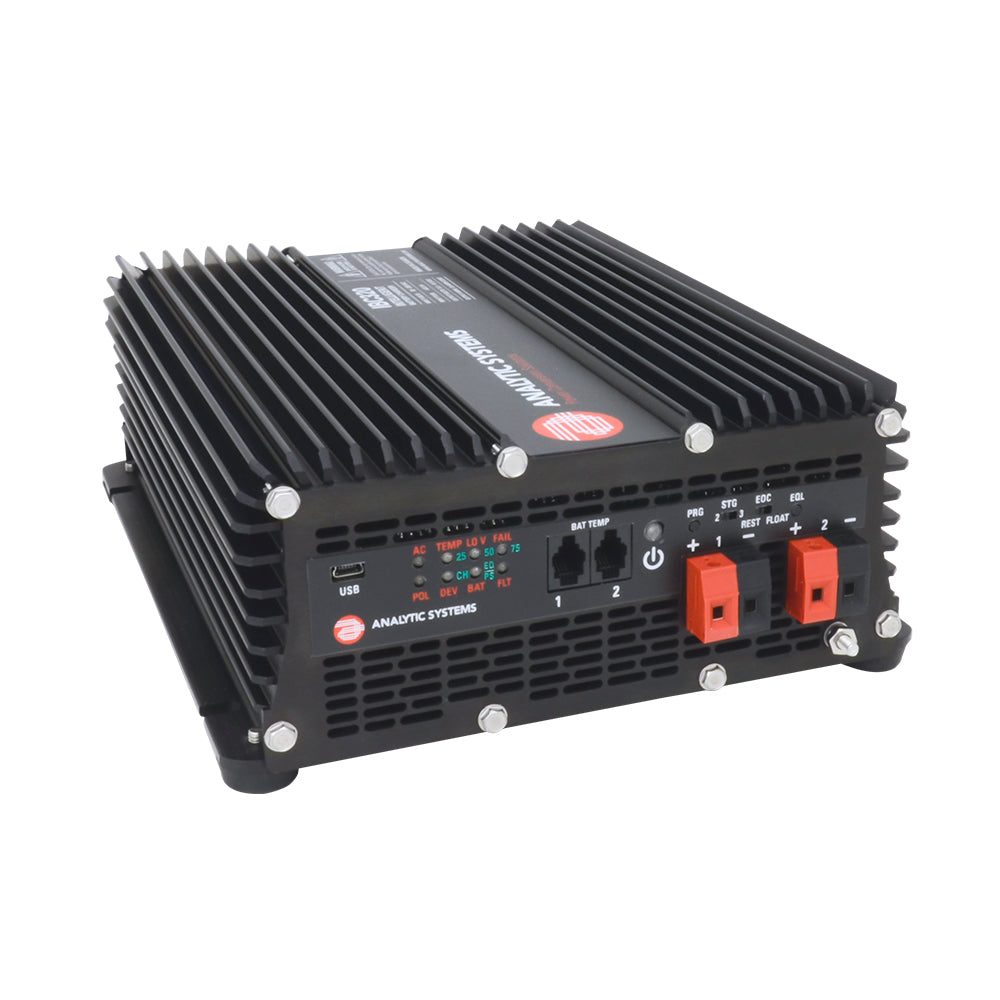

IBC320-12 Battery Charger
The IBC series chargers are fully Digital Signal Processor controlled and feature Universal Input Voltage from 85 to 265 VAC at 50 or 60 Hz with Active Power Factor Correction for the most efficient use of AC power.
Four charging profiles are available with easy front panel selectionto handle most types of batteries from traditional Lead Acid,Sealed Lead Acid and even Lithium Ion.
The free to download Power Wizard software allows full programming and selection of each of the four profiles from a laptop computer. 300 and 1000 Watt models for 1 or 2 banks of 12, 24, 28, 32, 36 or 48 Volt batteries.
Features:
- Digital Signal Processor controlled
- Computer programmable
- Temperature compensation
- Easy connection for one or two battery banks
- Universal worldwide AC input
- Simple front panel controls
- Digital Display of Voltage and Current(lengthens chassis)
- High Vibration Rugged Duty
- Dry Contact Output Fail Relay
- Carrying Handle
- Canbus / RS232 / Remote Control port
- Five year parts and labour warranty
Analytic Systems IBC320-12 Battery Charger delivers digitally controlled charging for 12-volt battery systems in demanding commercial, industrial, marine, and mobile applications. Designed for customers who need flexible battery management and efficient AC power use, this charger supports multiple battery chemistries and provides straightforward control through its front panel or computer-based programming.
The IBC series uses a Digital Signal Processor and accepts universal input voltage from 85 to 265 VAC at 50 or 60 Hz. Active Power Factor Correction helps promote efficient use of available AC power. Four selectable charging profiles accommodate traditional Lead Acid, Sealed Lead Acid, and Lithium Ion batteries, allowing the charger to be configured for the battery type being serviced. The free-to-download Power Wizard software enables programming and profile selection from a laptop computer.
The IBC320-12 is designed for one or two 12-volt battery banks and includes practical connection, monitoring, and control features for professional installations. A digital display shows voltage and current, while temperature compensation supports charging profile management. The rugged-duty housing, carrying handle, dry contact output fail relay, and CANbus, RS232, and remote control port provide useful functionality for equipment operators and installers. Please note that the digital display increases chassis length.
Key Features:
-
Digital Signal Processor control: Provides digitally managed battery charging operation.
-
Universal AC input: Accepts 85 to 265 VAC at 50 or 60 Hz for worldwide input compatibility.
-
Four charging profiles: Supports traditional Lead Acid, Sealed Lead Acid, and Lithium Ion battery types.
-
Computer programmable: Use Power Wizard software with a laptop to program and select charging profiles.
-
Flexible battery-bank connection: Supports one or two 12-volt battery banks.
-
Professional control and monitoring: Includes front panel controls, digital voltage and current display, temperature compensation, communication ports, and a dry contact output fail relay.
Product Details:
-
Brand: Analytic Systems
-
Model: IBC320-12
-
Product type: Digital battery charger
-
Battery voltage: 12 volts
-
Input voltage: 85 to 265 VAC
-
Input frequency: 50 or 60 Hz
-
Supported battery types: Lead Acid, Sealed Lead Acid, and Lithium Ion
-
Battery banks: One or two
-
Interfaces: CANbus, RS232, and remote control port
-
Included functions: Temperature compensation, carrying handle, and dry contact output fail relay
-
Warranty: Five-year parts and labor warranty
Choose the Analytic Systems IBC320-12 for configurable, digitally controlled charging across a wide range of 12-volt battery applications.
