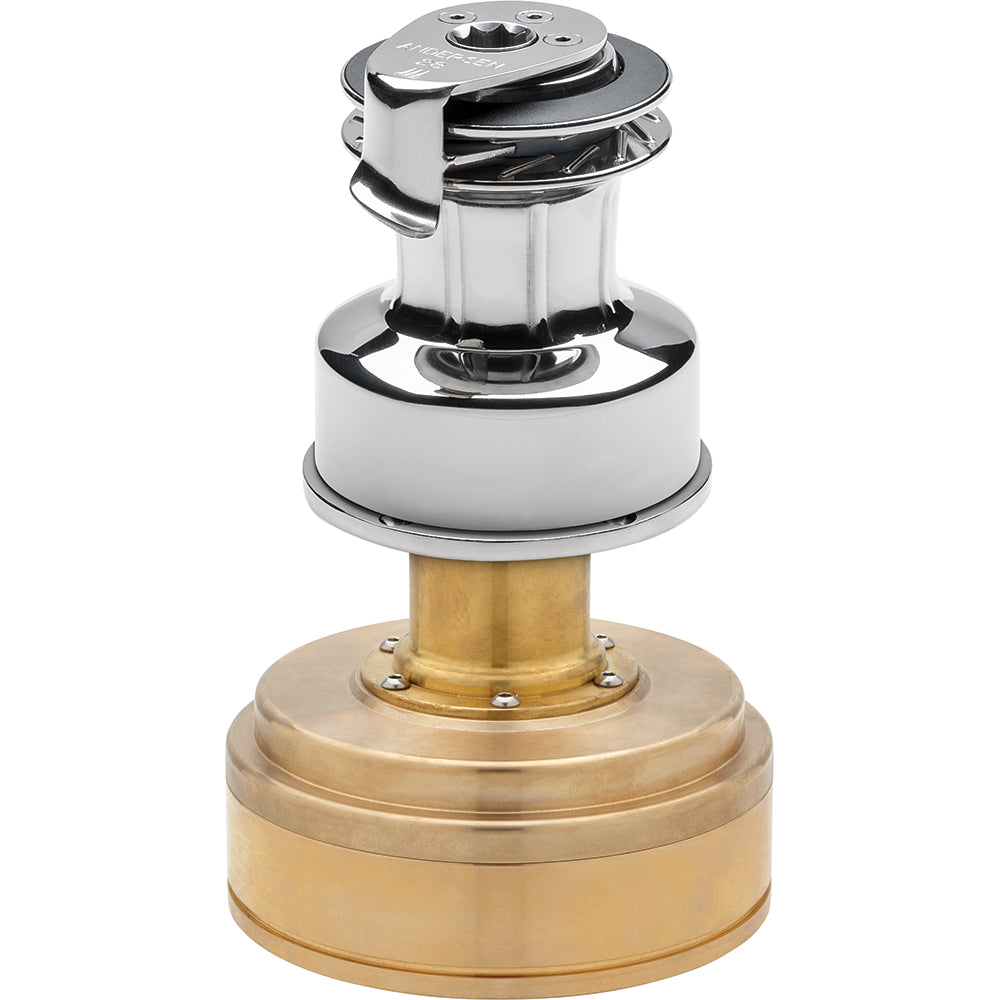

40ST Compact Below Deck Electric Full Stainless Winch Variable Speed - 12V
Andersen Compact Motor electric winches allow you to hoist and trim sails at the push of a button regardless of physical strength, so any crew member can easily and safely trim sails and control lines.
Ease of installation
The Andersen Compact Motor electric winch is available in two formats for either Above Deck or Below Deck motor placement. Motor gearbox and controller are integrated into one compact unit with no extra control box necessary. Simplified electrical installation requires just the connection of positive and negative power cables to the motor terminals and the connection of the push button using the included output cable.
Efficient, variable speed
The Andersen Compact Motor is a brushless DC motor carefully matched to a low profile planetary gearbox which requires less space for installation, and draws considerably less current than traditional motor/gearbox configurations. Available in 12 volt and 24 volt models, Compact Motor electric winches operate at variable speed in proportion to the pressure applied to the push button, for smooth and quiet operation.
Illuminated "intelligent" push button
Compact Motor winches are supplied with a push button with integrated LED which illuminates when power to the winch system is on. The push button incorporates a hinged safety cover to prevent inadvertent winch operation and is water resistant rated to IP67. The push button also acts with the controller to flash status codes that assist with trouble shooting in the event of overload or where other system protection intervention occurs. A cable for connection of the push button is included for convenient installation.
Built-in protection
- Integrated overload protection - The controller is pre-set to stop the winch if the maximum pull load is exceeded. Operation can resume within a few seconds when the load returns below the limit.
- Thermal overload protection - The motor is fitted with a thermal cutout that disables the motor in case of overheating; it automatically resets after the temperature returns to normal.
As with all ANDERSEN Winches, our Compact Motor Electric Winch features the exclusive stainless steel Power Rib drum for maximum power and extended line life. This model also uses our exclusive self-tailing device that automatically accommodates a wide range of different line sizes.
Specifications
- Drum: 2-15/16 in. (75 mm)
- Base: 6 in. (152 mm)
- Height: 7-1/16 in. (180 mm)
- Line Entry: 3-1/8 in. (79 mm)
- Line Size: 5/16-9/16 in. (8-14 mm)
- Weight: 40 lbs. (18 kg)
- Max Deck Thickness: 2-1/8 in. (54 mm)
- Motor Depth: 7-1/16 in. (180 mm)
- Motor: 7-11/16 in. (195 mm)
40ST Compact Below Deck Electric Full Stainless Winch Variable Speed - 12V
The ANDERSEN 40ST Compact Below Deck Electric Winch is designed to help sailors hoist and trim sails with the push of a button. Its 12-volt electric operation allows crew members to control lines and manage sail loads with less physical effort, making it a practical choice for cruising and sailing applications where convenient, controlled winch operation is important.
Compact installation and efficient operation
The below-deck motor configuration keeps the installation streamlined, while the integrated motor gearbox and controller eliminate the need for a separate control box. Installation requires connection of the positive and negative power cables to the motor terminals and connection of the push button with the included output cable. The brushless DC motor and low-profile planetary gearbox are designed to use less installation space and draw less current than traditional motor and gearbox configurations. Variable-speed operation responds proportionally to push-button pressure for smooth, quiet control.
Intelligent push-button control
The included push button features an integrated LED that illuminates when the winch system is powered. Its hinged safety cover helps prevent unintended operation, and the water-resistant push button is rated IP67. The button works with the controller to flash status codes that assist with troubleshooting when overload protection or other system protection is activated. Integrated overload protection stops the winch when the maximum pull load is exceeded, while thermal overload protection disables the motor if it overheats and automatically resets when normal temperature returns.
Stainless steel performance features
Like other ANDERSEN Winches, the 40ST includes a stainless steel Power Rib drum designed to provide strong line grip and support extended line life. The self-tailing device automatically accommodates a broad range of line sizes, helping simplify line handling during sail trimming and control-line operation.
Key Features
-
Feature: 12-volt below-deck electric winch for push-button sail and line control.
-
Feature: Variable-speed brushless DC motor provides smooth operation based on push-button pressure.
-
Feature: Integrated motor, gearbox, and controller simplify electrical installation without a separate control box.
-
Feature: Illuminated IP67 push button includes a hinged safety cover and diagnostic status-code function.
-
Feature: Integrated overload and thermal protection help protect the winch system during operation.
-
Feature: Stainless steel Power Rib drum and self-tailing device support convenient line handling.
Product Details
-
Brand: ANDERSEN
-
Part Number: RA2040014100
-
Model: 40ST Compact
-
Motor Placement: Below deck
-
Voltage: 12V
-
Line Size: 5/16-9/16 in.
-
Weight: 40 lb.
Choose the ANDERSEN 40ST Compact Below Deck Electric Winch for compact, variable-speed sail control with integrated protection and stainless steel construction.
SEO Meta Description: Shop the ANDERSEN 40ST 12V electric winch with below-deck installation, variable speed, stainless steel Power Rib drum, and integrated protection.
Features:
- 12-volt below-deck electric winch for push-button sail and line control.
- Variable-speed brushless DC motor provides smooth operation based on push-button pressure.
- Integrated motor, gearbox, and controller simplify electrical installation without a separate control box.
- Illuminated IP67 push button includes a hinged safety cover and diagnostic status-code function.
- Integrated overload and thermal protection help protect the winch system during operation.
- Stainless steel Power Rib drum and self-tailing device support convenient line handling.
|
