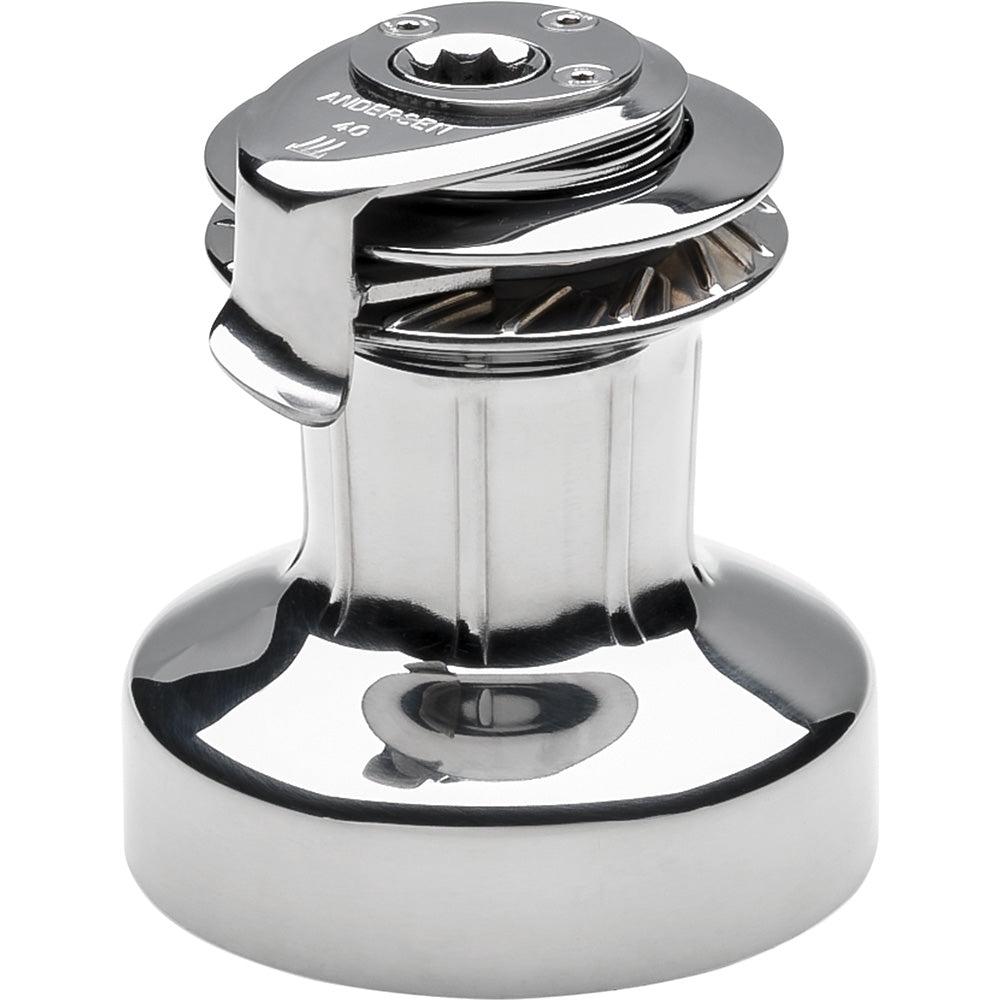

40 ST FS - 2-Speed Self-Tailing Manual Winch - Full Stainless Steel
If you take pride in having your yacht look its best, ANDERSEN's Full Stainless Self-Tailing Winch creates the dock-stopping appeal you desire. It combines all the convenience and power ofANDERSEN's self-tailing winchwith a stunning all stainless steel look.
From top to bottom the drive shaft stripper arm, self-tailing jaws, drum and upper lower trim rings are manufactured in highest quality and beautifully polished grade 316 stainless steel. The dramatic result is a highly reflective winch that becomes a highlight of the boat and a true reflection of your yachting pride. We like to say, Full Stainless Beyond Good Looks.
As with all ANDERSEN Winches, our Full Stainless Self-Tailing winch features the exclusive stainless steel Power Rib drum for maximum power and extended line life. This model also uses our exclusive self-tailing device that automatically accommodates a wide range of different line sizes.
Materials
Andersen winch drums are produced from grade 316L stainless steel, cold formed in stages during manufacture to further increase strength and hardness as it takes its final form. The resulting construction is lightweight, yet stiff and unyielding.
Drive shafts are in grade 329 duplex stainless steel. Pawls are cut from a cold pressed profile in grade 316 stainless steel and are virtually unbreakable.
The upper center stems are manufactured from aluminum bronze for ultimate durability. The combination of materials and design contribute to a lightweight, rigid final assembly that enhances. the mechanical efficiency of the winch. Andersen winces are of similar weight to winches with aluminum drums, but are far more durable.
Power Rib
ANDERSEN Winches feature the Power Rib. Unlike other winches with abrasive drum surfaces, ANDERSEN winch drums have vertical ribs running up the surface. This combined with the smooth polished stainless steel gives a maximum grip and minimum wear on ropes, reducing the replacements costs of sheets and halyards. What's more, the Power Rib principle simply makes sailing more pleasurable. Fewer turns on the winch make tacking easier. Sheets can be gently eased out without harsh snatching and the risks of overrides and jammed sheets are significantly reduced. The grip provided by the ribs will remain the same year after year, unlike many other winches with an abrasive or sandpaper-like surface. Such surfaces have a tendency to wear down both ropes and themselves.
Power Ratio
Power Ratio is the mechanical advantage of the winch and is calculated as follows:
length of handle x gear ratio
radius of drum
The pull of the winch is based on the Power Ratio and not just on the physical size of the winch or the diameter of the drum. The Power Ratio is used to determine the load the winch may handle as follows:pull of handle (kg x Power Ratio = pull of winch (kg).
This means that by applying a load of 10kg, using a 10" standard handle, on a Power Ratio 40:1 winch, the winch can pull 400kg, assuming that the winch is 100% efficient. This is not possible in practice as the efficiency is reduced by internal mechanical friction losses.
Features
Anderson winch drums incorporate the distinctive Power Rib which ensures a controlled grip on the line at all times, whether trimming or easing. The highly polished stainless steel surface minimizes vertical friction and allows the loaded rope turns to slide easily upward as the drum rotates, without the shuddering and excessive rope wear seen on winches that rely on a rough surface finish for grip.
Stainless steel roller bearings and ball bearings carry the highest drum loads to the center stem of the winch, minimizing efficiency losses due to friction.
The self tailing arm can be rotated through 360 degrees for optimum positioning (40ST and larger). Stainless steel self-tailing jaws adjust automatically to suit various rope sizes.
Andersen winches are designed for simple, straightforward installation and maintenance. Servicing is only required every two years or so, under normal use.
Specifications:
Drum :75mm(2-15/16")
Base :152mm(6")
Height:174mm(6-7/8")
Line Entry:71mm(2-13/16")
Line Size:8-14mm(1/8 - 11/16")
Weight;4.9kg(10.8lbs)
Gear ratio 1st speed1.3 : 1
Gear ratio 2nd speed:6.0 : 1
Power ratio 1st speed:8.9 : 1
Power ratio 2nd speed:40.0 : 1
40 ST FS 2-Speed Self-Tailing Manual Winch from ANDERSEN delivers dependable line handling with a polished full stainless steel finish designed for yacht owners who value both performance and appearance. The manual winch combines two-speed operation, automatic self-tailing, and the distinctive ANDERSEN Power Rib drum to provide controlled grip while trimming or easing sheets and halyards.
From the drive shaft stripper arm and self-tailing jaws to the drum and trim rings, the visible components are manufactured from beautifully polished grade 316 stainless steel. The highly reflective finish adds a refined look to the boat, while the Power Rib drum is designed to provide strong line grip with reduced rope wear compared with abrasive drum surfaces. The self-tailing device automatically accommodates a wide range of line sizes, helping simplify line handling during everyday sailing.
The winch is built with grade 316L stainless steel for the drum, grade 329 duplex stainless steel drive shafts, cold-pressed grade 316 stainless steel pawls, and an aluminum bronze upper center stem. Stainless steel roller bearings and ball bearings carry drum loads toward the center stem, helping minimize efficiency losses caused by friction. The self-tailing arm rotates through 360 degrees on 40 ST models and larger for flexible positioning. ANDERSEN also designs this winch for straightforward installation and maintenance, with servicing required approximately every two years under normal use.
Key Features:
-
Full stainless steel construction: Polished grade 316 stainless steel components create a distinctive finish suited to yacht applications.
-
Two-speed operation: Provides 1.3:1 and 6.0:1 gear ratios for versatile manual line handling.
-
Power Rib drum: Vertical ribs provide controlled grip while the smooth polished surface helps minimize rope wear.
-
Automatic self-tailing: Stainless steel jaws adjust automatically to accommodate various rope sizes.
-
Rotating self-tailing arm: The arm rotates through 360 degrees for positioning flexibility on 40 ST models and larger.
Product Details:
-
Brand: ANDERSEN
-
Part number: RA2040010000
-
Type: 2-speed self-tailing manual winch
-
Line size: 8–14 mm (1/8–11/16 inch)
-
Weight: 10.8 pounds
-
Power ratio: 8.9:1 in first speed; 40.0:1 in second speed
-
Primary materials: Grade 316L stainless steel, grade 329 duplex stainless steel, grade 316 stainless steel, and aluminum bronze
Choose the ANDERSEN 40 ST FS when you want polished full stainless steel styling, automatic self-tailing convenience, and proven Power Rib line control in a two-speed manual winch.
SEO Meta Description: Shop the ANDERSEN 40 ST FS 2-speed self-tailing manual winch with polished stainless steel construction, Power Rib grip, and automatic line adjustment.
Features:
- Full stainless steel construction with polished grade 316 stainless steel visible components
- Two-speed operation with 1.3:1 and 6.0:1 gear ratios
- Power Rib drum for controlled line grip and reduced rope wear
- Automatic self-tailing jaws that accommodate various rope sizes
- 360-degree rotating self-tailing arm for flexible positioning
- Power ratios of 8.9:1 in first speed and 40.0:1 in second speed
|
