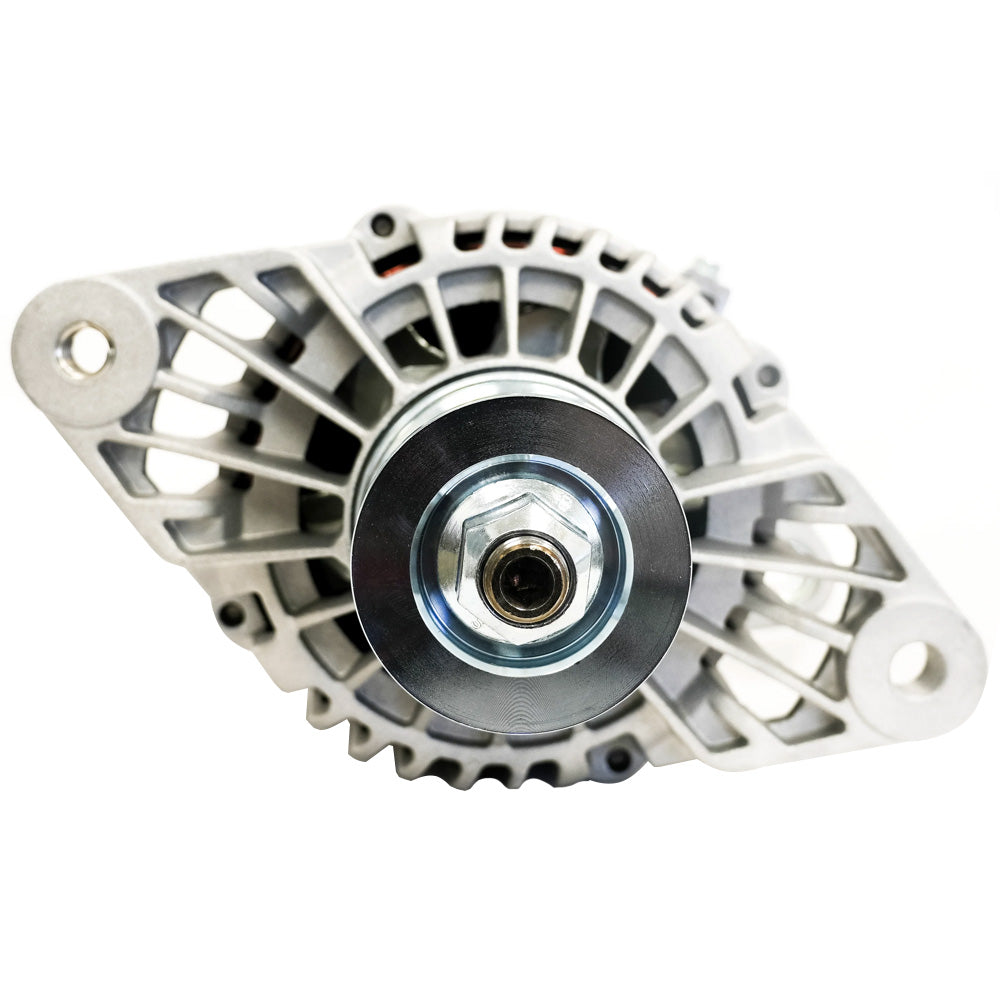

ARCO Marine Zeus A220/3000W 12V High Output Alternator - J180 Mount

Zeus A220/3000W 12V HD High Output Alternator - J180 Mount

ARCO Zeus Heavy Duty Alternatoris engineered for maximum output and extended-duty performance in demanding marine and diesel applications. Delivering the highest power output in its class, this high-amperage alternator is built to rapidly charge large battery banks and support high electrical loads with confidence.

Zeus Heavy Duty operates at exceptionally cool temperatures thanks to dual internal cooling fans, ensuring sustained performance, extended service life, and reliable power production over long run times. Its high-energy output reduces reliance on onboard generators by producing more usable power directly from your engine.

Features:

• Replace your noisy generator
• Designed for Extended Duty Operation
• Engineered for high energy production
• Rapidly charges large battery banks
• Coolest operating temperatures for increased performance, with dual internal fans
• Reduces the need for a generator by creating additional power with your engine
• External Regulation Required
• SAE J1171 Certified

Regulation:

• External Only (EX): These units will come with a terminal block and a P-Type harness. They will only work with an external regulator, such as an ARCO Zeus Bluetooth alternator regulator.

Specifications:

• Voltage: 12V
• Field Type: P
• Rotor Poles: 12
• Weight: 18.7 lb (8.5 kg)
• Regulation: External Only (EX)
• Cut-In RPM: 1,288
• Maximum Alt RPM: 10,000
• Rear Battery Post: M8 Thread
• Standard Pulley: K8 59 mm
• Shaft Diameter: 7/8 in (22.22 mm)
• Avalanche Diodes: 50 amps
• Max Output (Cold): 249 amps
• Sustained Cruising Output (Hot, 6,000 RPM): 228 Amps
• Sustained Idle Output (Hot, 3,000 RPM): 200 amps
• Max Continuous Operating Temperature: 125C

The ARCO Marine Zeus A220/3000W 12V High Output Alternator is engineered for demanding marine and diesel applications, delivering exceptional power to support large battery banks and high electrical loads. Designed with durability and efficiency in mind, this alternator provides reliable, high-amperage output to meet the rigorous demands of extended-duty operations. Its robust construction ensures consistent performance, making it an ideal choice for boaters and heavy-duty machinery operators seeking dependable power solutions.

Equipped with dual internal cooling fans, the Zeus A220/3000W maintains cool operating temperatures even under heavy loads, extending service life and ensuring sustained performance. This cooling feature minimizes overheating, allowing the alternator to operate at maximum capacity longer without compromising reliability. Its high-energy output reduces the dependence on onboard generators by producing more usable power directly from your engine, streamlining your power setup and improving efficiency.

Designed for external regulation, this alternator includes a terminal block and a P-Type harness compatible with ARCO Zeus Bluetooth regulators. Its specifications include a 12V voltage rating, a maximum output of 249 amps when cold, and a sustained hot cruising output of 228 amps at 6,000 RPM, making it suitable for high-demand applications. The unit features a standard K8 pulley, 12 rotor poles, and a rear M8 thread battery post, ensuring compatibility and ease of installation. Whether replacing an existing unit or upgrading your power system, the ARCO Marine Zeus A220/3000W alternator offers powerful, reliable performance in a compact design.

Built with quality materials and certified under SAE J1171 standards, this alternator is a trusted choice for marine and industrial use. Its rugged construction and high maximum operating temperature of 125°C ensure resilience in harsh environments. Achieve peak electrical performance with the ARCO Marine Zeus A220/3000W Alternator, designed to meet the high demands of modern power systems while providing efficient, long-lasting operation.

Features:

• Replace your noisy generator for quieter operation

• Designed for extended-duty operation in demanding environments

• Engineered for high energy production and reliability

• Rapidly charges large battery banks to ensure power readiness

• Dual internal cooling fans keep operating temperatures low for increased performance and longevity

• Reduces reliance on onboard generators by generating additional power from your engine

• External regulation required with included terminal block and P-Type harness

• SAE J1171 certified for high safety and performance standards
