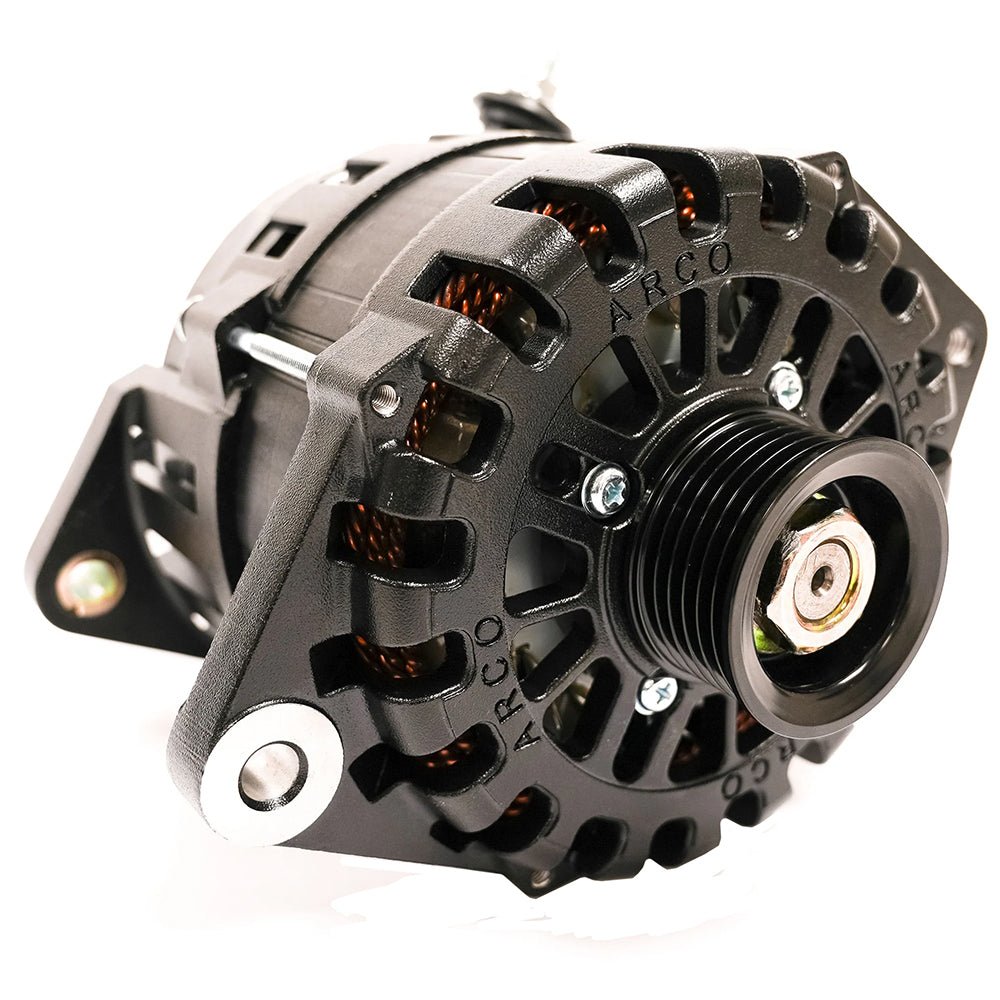

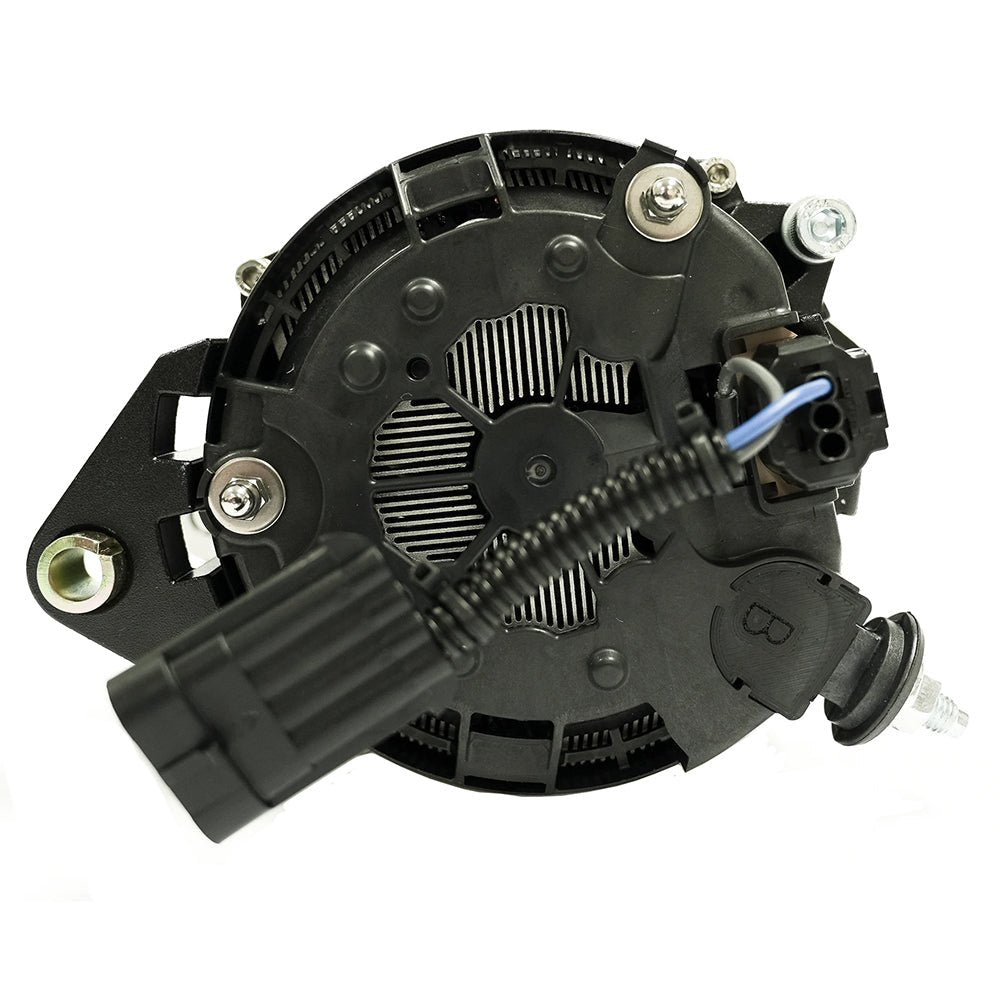

ARCO Marine Zeus A225S 3.15 Alternator w/Isolated Ground & Terminal Block

ARCO Marine Zeus A225S 3.15 Alternator w/Isolated Ground & Terminal Block

107516

$877.80 USD
$877.80 USD
Sale Sold out
Shipping

Low stock: 3 left
  • 30-Day Returns
  • Secure Checkout
  • Shipping Options at Checkout

Shipping & Delivery

Available shipping options, rates, and estimated delivery windows are shown at checkout. Tracking is emailed when available.

Returns & Refunds

Eligible items may be returned within 30 days of delivery. Items must be new, unused, uninstalled, and in original packaging. An RMA is required.

Installment options at checkout are provided by Shop Pay and its partners and are subject to eligibility. Options depend on your purchase amount and may require a credit check by the financing partner. Terms, rates, and eligibility are determined by the financing partner. For details, see the Shop Pay Installments terms during checkout.

Zeus A225S 3.15 Alternator with Isolated Ground & Terminal Block

The highest power output alternator in its size/class.

Features:

  • Engineered for high energy production.
  • Suitable for marine, RV, military, and commercial applications.
  • Rapidly charges large battery banks.
  • Coolest operating temperatures for increased performance, running 8-20% cooler than incumbent alternators due to:
  • Heat shedding coatings
  • Rectifier located on housing exterior
  • Dual cooling fans
  • OEM components
  • Optimized for performance at idle speeds.
  • Reduces the need for a generator by creating additional power with your engine.
  • Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A225S cooler for sustained amperage output.
  • Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
  • SAE J1171 Certified.
  • Models are available with an internal/external voltage regulator.
  • Proudly made in the U.S.A.

Technical Specifications:

  • Voltage - 12v
  • Field Type - P
  • Rotor Poles - 16
  • Stator Size - 130mm
  • Frame Size - Small
  • Weight - 12 lbs/5.4 kg
  • Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)
  • Output Voltage - 14.1v (Default)
  • Finish - (Black) Cerakote or E-coating
  • Cut-In RPM - 1,061 Alternator RPM
  • Maximum Alt RPM - 19,000
  • Battery Post - M8 Thread Post, Side Mount
  • Standard Pulley - 49K6 (6-groove, 49mm)
  • Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
  • Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
  • Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
  • Max Output (Cold, 9,000 RPM) - 254 Amps
  • Sustained Cruising Output (Hot, 6,000 RPM) - 187 Amps
  • Sustained Idle Output (Hot, 3,000 RPM) - 157 Amps
  • Max Continuous Operating Temperature - 110°C / 230°F

Mounting Application:

  • Replaces most small case styles using a 3.15" saddle style mount (e.g., Hitachi, Lucas, Mitsubishi). Most Yanmars. Requires Standard single "V" belt upgrading to a Serpentine System
