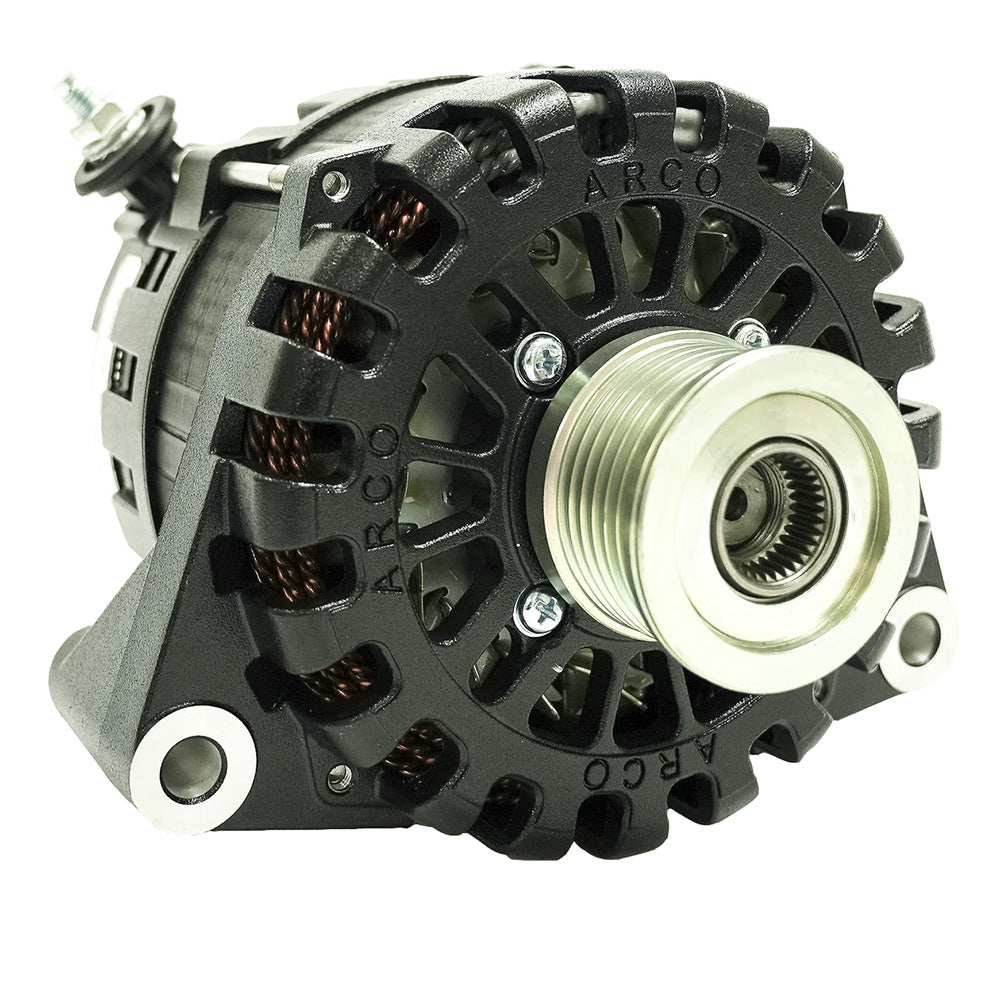

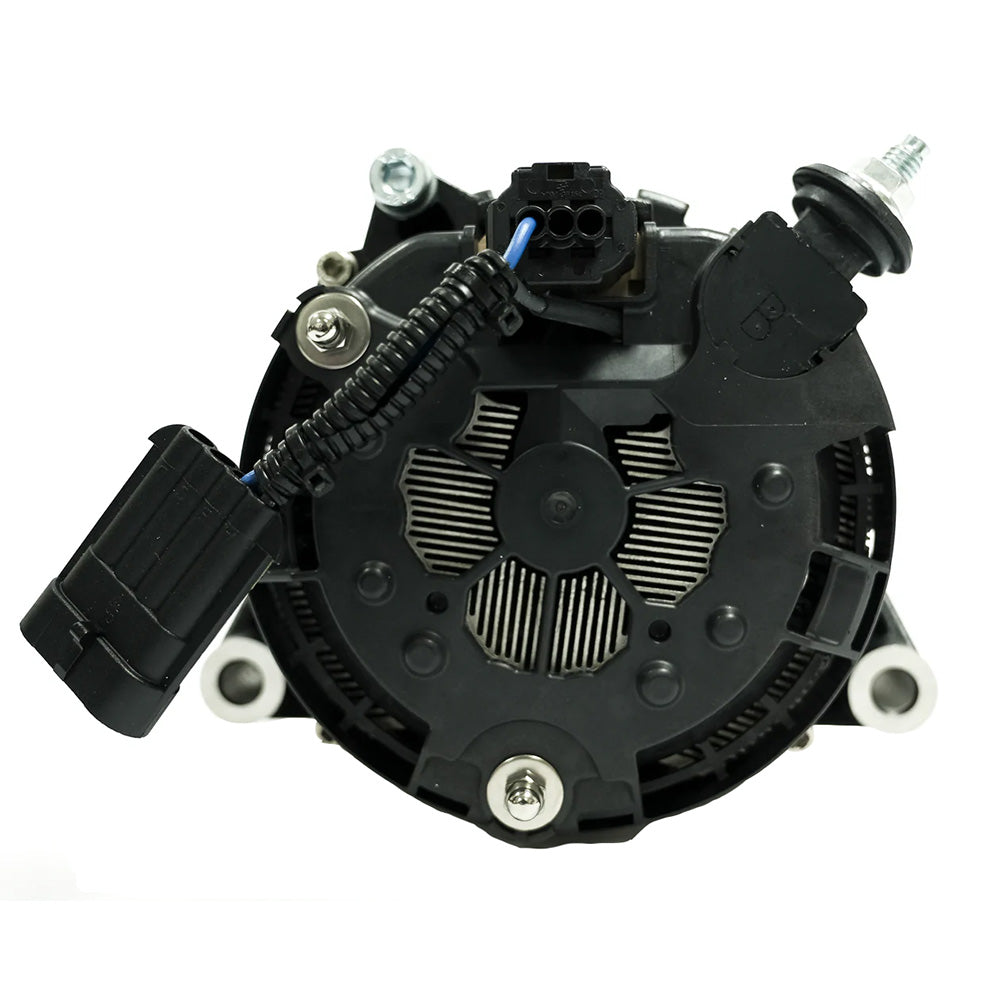

ARCO Marine Zeus A8000-48V 8kW Ford Transit Alternator with Isolated Ground and K6 Pulley

Zeus A8000-48V 8kW Ford Transit Alternator with Isolated Ground K6 Pulley

ARCO Zeus 48V Advantage. Better Technology = Better Performance. High Output/High Amperage Alternator: The Highest Power Output in Its Class.

A8000-48V Advantage

The ARCO Zeus A8000-48V alternator turns on at lower RPMs, runs cooler, and provides more power than other 48V alternators that are larger and heavier. This alternator continuously generates over 3kW (55 Amps) at 2,500 RPM and almost 6kW (111 Amps) at 4,000 RPM. Put in real-world terms, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio is generating just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 3kW (55 Amps)!

True 24V Alternators

Instead of using rotors designed for 48 volts, many competitors alternators simply use their 12V rotors, which are less efficient and limit output at all RPMs. In this scenario, your external smart regulator must drastically reduce the field by as much as 78%. If this is not done correctly, you run the risk of destroying the unit and damaging other components in your system. ARCO utilizes a native 48V rotor and field current. This results in our 48V alternator running cooler than competitors 48V alternators, having a direct impact on the alternators lifespan.

Features:

• Replace your noisy generator!
• Engineered for high energy production.
• Suitable for marine, RV, military, and commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance:
• Heat-shedding coatings
• Rectifier located on housing exterior
• Dual cooling fans
• OEM components
• Optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat, keeping the high amp alternator cooler for sustained amperage output.
• For maximum performance or lithium battery charging, use the ARCO Zeus Bluetooth Alternator Regulator.

Technical Specifications:

• Voltage - 48V
• Field Type - P
• Rotor Poles - 16
• Stator Size - 138mm
• Frame Size - Large
• Weight - 15.89lbs/7.2kg
• Regulation - External Only (EX)
• Finish - (Black) E-coating
• Cut-In RPM - 1,920 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 80A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) at 53.5v - 180 Amps - 9,360 Watts 14.8 kW PTO
• Sustained Cruising Output (Hot, 6,000 RPM) at 53.5v - 138 Amps - 7,383 Watts 10.5 kW PTO
• Sustained Idle Output (Hot, 2,500 RPM) at 53.5v - 78 Amps 4,173 Watts 6kW PTO
• Max Continuous Operating Temperature - 100C / 212F

The ARCO Marine Zeus A8000-48V alternator is a high-performance power solution designed specifically for Ford Transit vehicles and demanding marine, RV, military, and commercial applications. Built with advanced technology, this 8kW (approximately 55 Amps at 2,500 RPM) alternator delivers superior output and efficiency, even at lower engine speeds. Its ability to generate nearly 6kW (111 Amps at 4,000 RPM) ensures your electrical systems stay fully charged and operational, reducing the need for noisy and inefficient generators. Whether powering large battery banks or supporting critical systems, the Zeus A8000-48V provides reliable, sustained energy to meet your power demands. Its robust construction and heat-shedding coatings enable cooler operation, extending the lifespan of the unit while maintaining peak performance. The exterior-mounted rectifier, dual cooling fans, and OEM-grade components make this alternator durable and ideal for harsh environments. With a native 48V rotor and field current, it offers increased efficiency and reduces thermal stress, ensuring long-term reliability. Optimized for idle performance and equipped with the ARCO Bluetooth Alternator Regulator, the Zeus A8000-48V is adaptable for maximum output and lithium battery charging needs. Its rugged design features include a large frame size, 16 rotor poles, and a high-capacity diodes setup, supporting a maximum cold RPM of 9,000 and a peak operating temperature of 212°F. This alternator is a comprehensive power solution that replaces noisy generators, cuts operational costs, and provides a dependable power source for demanding applications.

Features:

• Replace your noisy generator

• Engineered for high energy production

• Suitable for marine, RV, military, and commercial applications

• Rapidly charges large battery banks

• Coolest operating temperatures for increased performance: Heat-shedding coatings, rectifier located on housing exterior, dual cooling fans, OEM components

• Optimized for performance at idle speeds

• Reduces the need for a generator by creating additional power with your engine

• Unleash peak performance with E-Coat, keeping the high amp alternator cooler for sustained amperage output

• For maximum performance or lithium battery charging, use the ARCO Zeus Bluetooth Alternator Regulator
