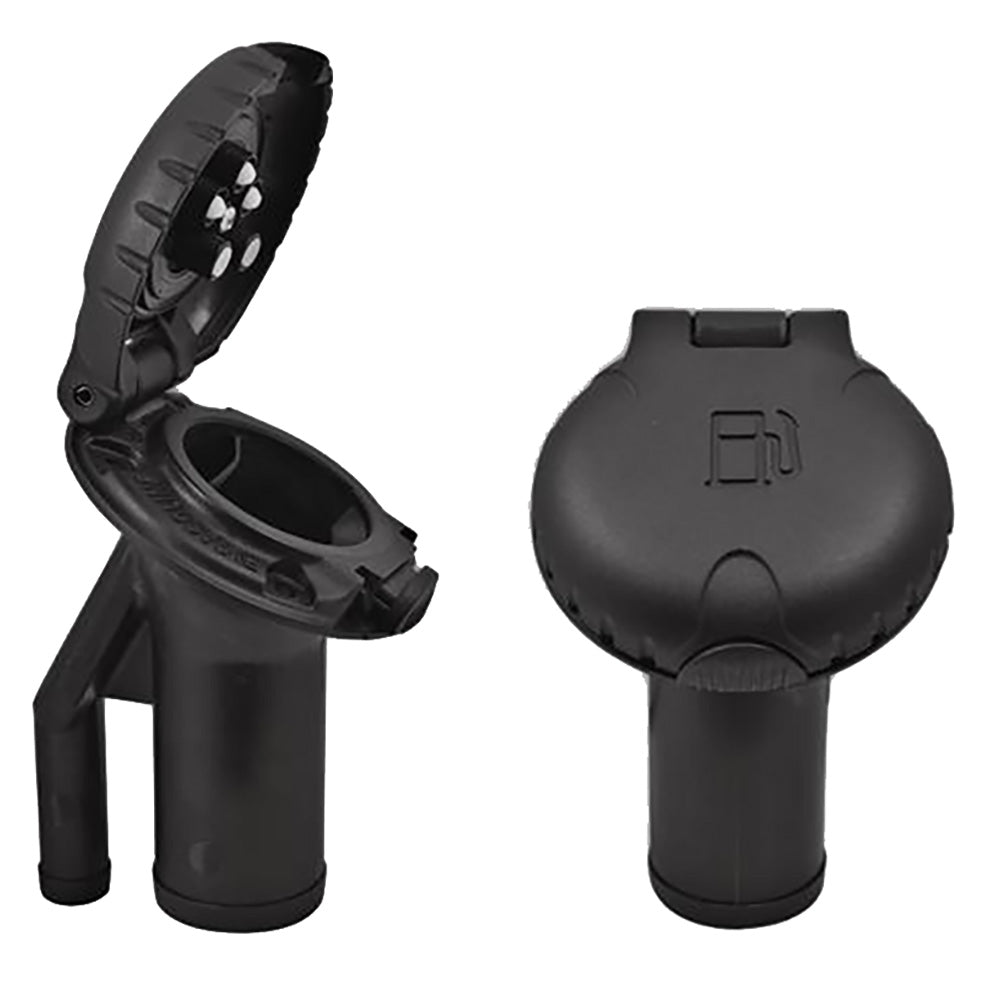

Attwood Marine Deck Fill for Pressure Relief Systems - Angled Body with Scalloped Black Plastic Cap

Deck Fill for Pressure Relief Systems - Angled Body Scalloped Black Plastic Cap

Pressure relief systems are designed with automatic diurnal emission control and overpressure relief safety valves built into the cap of the fill. The overpressure relief safety valves are engineered to release pressure above 1 psi. The high-flow vacuum valves allow fresh air to enter the fuel tank to replace the fuel being consumed by the engine. Other components of a pressure relief system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. All Attwood pressure relief systems are designed to ensure water does not enter the fuel tank and are compatible with Jerry Can and marine nozzle refueling.

Features:

• Fits 1-1/2 (inch) fill hose and 5/8 (inch) vent hose
• Triple high-flow vacuum valves ensure maximum make-up airflow (compatible with high HP applications)
• Dual 1 psi diurnal emission control and overpressure relief safety valves built into the cap
• Automatic nozzle shutoff 4-18 gpm
• Black Composite finish
• An essential component of VaporTec and SecureStop
• Designed and tested to prevent water from entering the fuel system
• EPA / CARB Certified
• Hinged audible click cap meets EPA requirements
• Meets CARB 13 CCR 2235 and ISO 13331 nozzle mating and retention standards

*Compatible with Ethanol blended fuels

The Attwood Marine Deck Fill (Part Number: 99DFPVAB1S) is a vital component designed for seamless integration with pressure relief systems on boats and marine fuel tanks. Crafted with a durable black composite finish, this fill cap features an angled body with a scalloped design, ensuring a secure fit and easy operation in tight spaces. It is engineered to accommodate 1-1/2 inch fill hoses and 5/8 inch vent hoses, making it compatible with a variety of marine fuel system configurations. The high-flow vacuum valves incorporated into the cap allow maximum airflow, supporting high horsepower applications and ensuring efficient fuel tank ventilation.

This deck fill is equipped with dual 1 psi diurnal emission control valves and overpressure relief safety valves, which automatically release pressure above 1 psi to prevent overpressure situations. The design includes an automatic nozzle shutoff capable of delivering 4-18 gallons per minute, providing safe and efficient refueling. The hinged audible click cap not only meets EPA requirements but also ensures a secure seal to prevent water intrusion, which is critical for maintaining the integrity of your fuel system. This product is certified by EPA and CARB, meeting stringent environmental standards, including CARB 13 CCR 2235 and ISO 13331 standards for nozzle mating and retention.

Ideal for use with ethanol-blended fuels, the Attwood Marine Deck Fill is compatible with VaporTec and SecureStop systems, enhancing safety and environmental compliance. Whether you're outfitting a new vessel or replacing an existing fill cap, this component guarantees reliable performance, safety, and durability in demanding marine environments, ensuring your fuel system remains sealed, ventilated, and compliant with regulations.

Features:

• Fits 1-1/2 inch fill hose and 5/8 inch vent hose

• Triple high-flow vacuum valves for maximum airflow (suitable for high horsepower applications)

• Dual 1 psi diurnal emission control and overpressure relief safety valves built into the cap

• Automatic nozzle shutoff with a flow rate of 4-18 gallons per minute

• Black composite finish for durability and corrosion resistance

• Essential component of VaporTec and SecureStop systems

• Designed and tested to prevent water entry into the fuel system

• EPA and CARB certified for environmental compliance

• Hinged audible click cap meets EPA requirements

• Meets CARB 13 CCR 2235 and ISO 13331 standards for nozzle mating and retention
