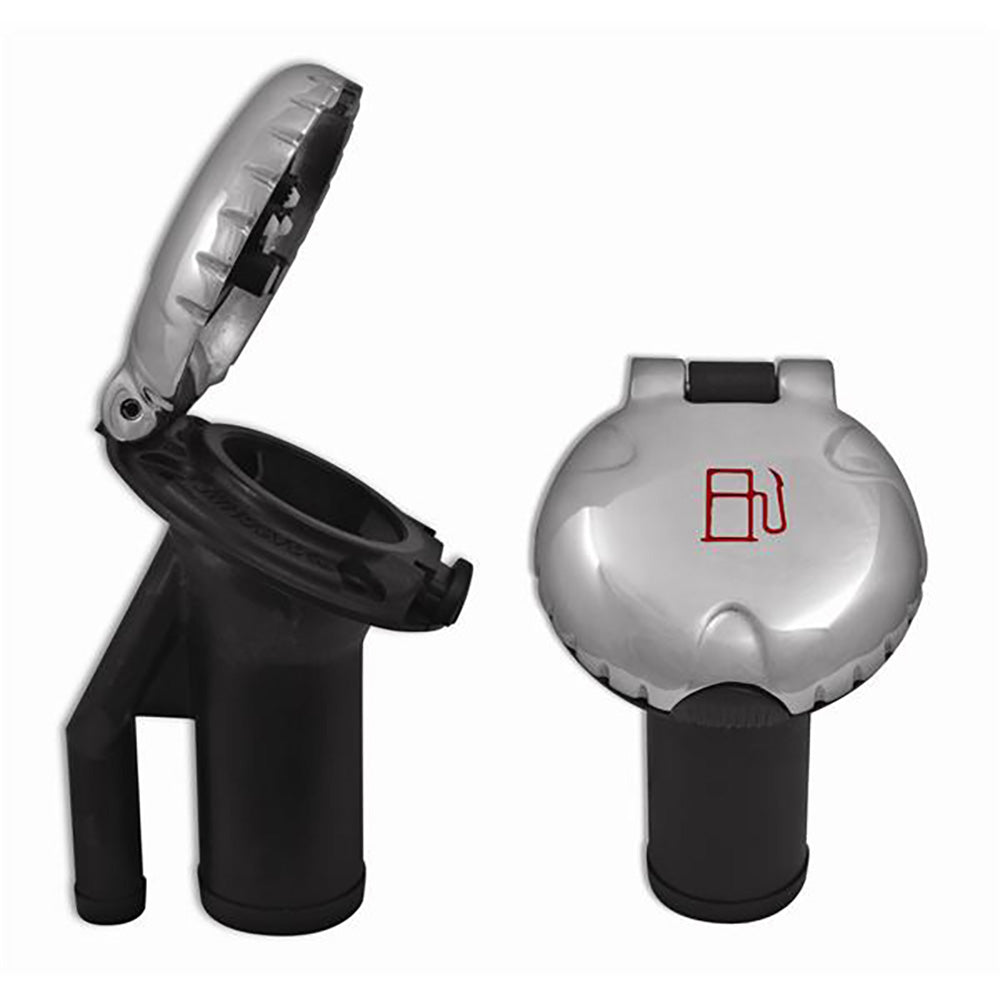

Attwood Marine Deck Fill for Pressure Relief Systems with Angled Body & Stainless Steel Cap – Part 99DFPVAS1S

Deck Fill for Pressure Relief Systems - Angled Body Scalloped Stainless Steel Cap

Pressure relief systems are designed with automatic diurnal emission control and overpressure relief safety valves built into the cap of the fill. The overpressure relief safety valves are engineered to release pressure above 1 psi. The high-flow vacuum valves allow fresh air to enter the fuel tank to replace the fuel being consumed by the engine. Other components of a pressure relief system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. All Attwood pressure relief systems are designed to ensure water does not enter the fuel tank and are compatible with Jerry Can and marine nozzle refueling.

Features:

• Fits 1-1/2 (inch) fill hose and 5/8 (inch) vent hose
• Triple high-flow vacuum valves ensure maximum make-up airflow (compatible with high HP applications)
• Dual 1 psi diurnal emission control and overpressure relief safety valves built into the cap
• Automatic nozzle shutoff 4-18 gpm
• Stainless Steel finish
• An essential component of VaporTec and SecureStop
• Designed and tested to prevent water from entering the fuel system
• EPA / CARB Certified
• Hinged audible click cap meets EPA requirements
• Meets CARB 13 CCR 2235 and ISO 13331 nozzle mating and retention standards

*Compatible with Ethanol blended fuels

The Attwood Marine Deck Fill for Pressure Relief Systems with Angled Body and Scalloped Stainless Steel Cap is an essential component for ensuring safe and efficient fuel tank venting in marine applications. Designed with precision, this deck fill features a durable stainless steel finish that resists corrosion and stands up to harsh marine environments. It is engineered to fit standard 1-1/2 inch fill hoses and 5/8 inch vent hoses, providing a secure connection for reliable fuel transfer and venting operations. This system incorporates triple high-flow vacuum valves that maximize make-up airflow, making it suitable for high horsepower applications where quick and efficient venting is critical. The dual 1 psi diurnal emission control and overpressure relief safety valves built into the cap ensure the tank maintains proper pressure, releasing excess pressure above 1 psi to prevent overfilling or tank damage. The automatic nozzle shutoff feature, operating at 4-18 gallons per minute, simplifies refueling by preventing spills and overflows. This deck fill adheres to EPA and CARB standards, including CARB 13 CCR 2235 and ISO 13331, guaranteeing compliance with strict environmental regulations. The hinged audible click cap meets EPA requirements, providing a clear indication when the system is properly sealed. Designed to prevent water ingress, this pressure relief system safeguards the fuel tank from contamination, preserving fuel integrity and system longevity. Compatible with ethanol-blended fuels, it is suitable for a wide range of marine fuel types. As a key component of VaporTec and SecureStop systems, this deck fill enhances safety and environmental compliance while delivering dependable performance in demanding marine environments.

Features:

• Fits 1-1/2 inch fill hose and 5/8 inch vent hose

• Triple high-flow vacuum valves ensure maximum make-up airflow (compatible with high horsepower applications)

• Dual 1 psi diurnal emission control and overpressure relief safety valves built into the cap

• Automatic nozzle shutoff at 4-18 gallons per minute

• Stainless steel finish offers corrosion resistance

• Part of VaporTec and SecureStop systems for enhanced safety

• Designed to prevent water from entering the fuel system

• EPA and CARB certified for environmental compliance

• Hinged audible click cap meets EPA requirements

• Meets ISO 13331 nozzle mating and retention standards

• Compatible with ethanol-blended fuels
