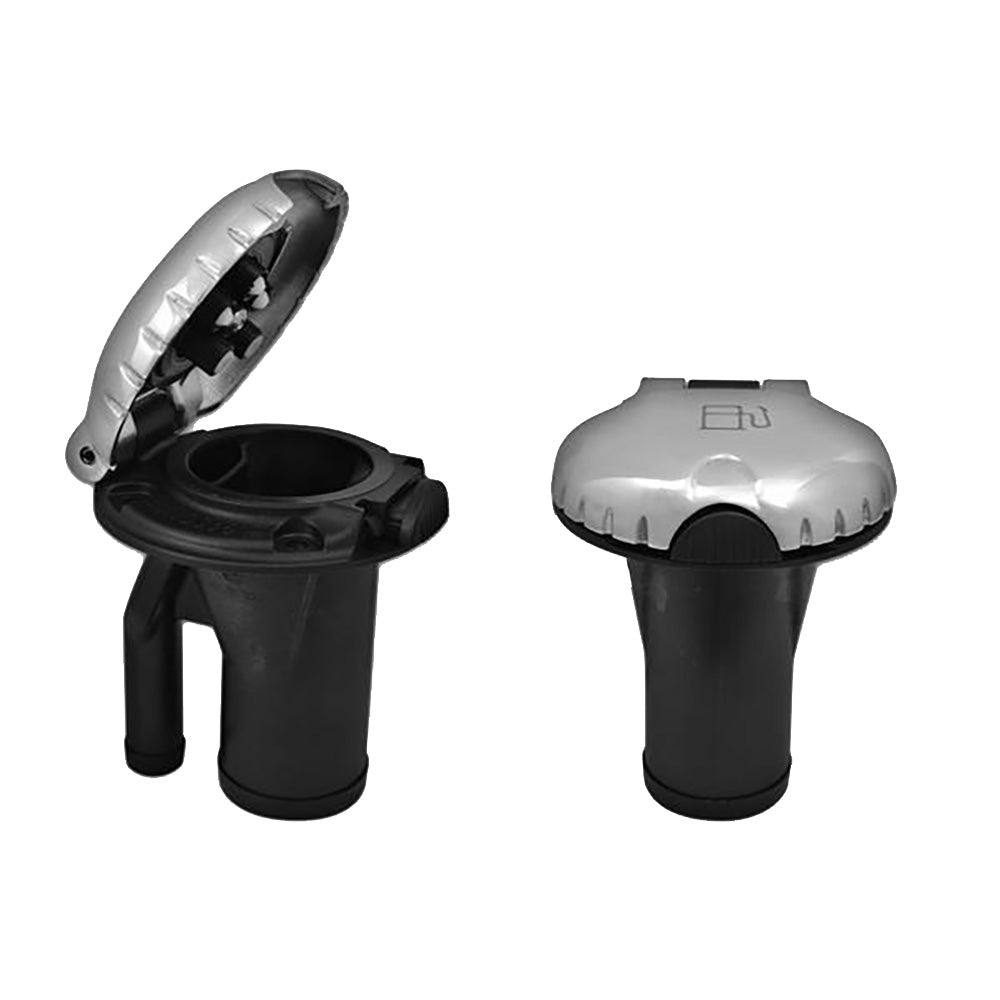

Attwood Marine Deck Fill for Pressure Relief Systems with Straight Body & Scalloped Stainless Steel Cap

Deck Fill for Pressure Relief Systems - Straight Body Scalloped Stainless Steel Cap

Pressure relief systems are designed with automatic diurnal emission control and overpressure relief safety valves built into the cap of the fill. The overpressure relief safety valves are engineered to release pressure above 1 psi. The high-flow vacuum valves allow fresh air to enter the fuel tank to replace the fuel being consumed by the engine. Other components of a pressure relief system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. All Attwood pressure relief systems are designed to ensure water does not enter the fuel tank and are compatible with Jerry Can and marine nozzle refueling.

Features:

• Fits 1-1/2 (inch) fill hose and 5/8 (inch) vent hose
• Triple high-flow vacuum valves ensure maximum make-up airflow (compatible with high HP applications)
• Automatic nozzle shutoff 4-18 gpm
• Stainless Steel finish
• An essential component of VaporTec and SecureStop
• Designed and tested to prevent water from entering the fuel system
• EPA / CARB Certified
• Hinged audible click cap meets EPA requirements
• Meets CARB 13 CCR 2235 and ISO 13331 nozzle mating and retention standards

*Compatible with Ethanol blended fuels

Designed for marine fuel systems, the Attwood Marine Deck Fill (Part Number 99DFPVSS1S) offers a reliable solution for safe and efficient fuel transfer. This deck fill is crafted with a durable stainless steel finish, ensuring resistance to corrosion and harsh marine environments. Its straight body design simplifies installation and maintenance, making it an essential component of vapor management systems like VaporTec and SecureStop. The deck fill features a scalloped stainless steel cap that complies with EPA and CARB standards, including Prop 65 regulations, providing peace of mind for environmentally conscious boat owners. Its compatibility with ethanol-blended fuels makes it versatile for various marine fuel applications, ensuring optimal performance regardless of fuel type. The system includes triple high-flow vacuum valves that maximize airflow, crucial for high horsepower engines requiring quick refueling and efficient vapor management. The automatic nozzle shutoff, rated between 4-18 gallons per minute, ensures safe and spill-free refueling, preventing overflows and spillage. The design also incorporates features to prevent water entry into the fuel tank, protecting the system from water contamination and corrosion, which are common concerns in marine environments. This deck fill is compatible with 1-1/2 inch fill hoses and 5/8 inch vent hoses, making it adaptable to most marine refueling setups. It meets ISO 13331 standards for nozzle mating and retention, ensuring secure connections during fueling. The hinged, audible click cap not only complies with EPA requirements but also provides a clear indication when the cap is properly closed, enhancing safety and reliability during refueling operations. Whether upgrading an existing system or installing a new one, the Attwood Marine Deck Fill with scalloped stainless steel cap is an excellent choice for ensuring safe, efficient, and environmentally compliant fuel handling on your vessel.

Features:

• Fits 1-1/2 inch fill hose and 5/8 inch vent hose

• Triple high-flow vacuum valves ensure maximum make-up airflow, suitable for high horsepower applications

• Automatic nozzle shutoff rated between 4-18 gallons per minute

• Constructed with a durable stainless steel finish for corrosion resistance

• Compatible with vapor management systems like VaporTec and SecureStop

• Designed to prevent water entry into the fuel system

• EPA and CARB certified, including Prop 65 compliance

• Hinged, audible click cap meets EPA requirements for secure closure

• Meets ISO 13331 standards for nozzle mating and retention

• Suitable for ethanol-blended fuels
