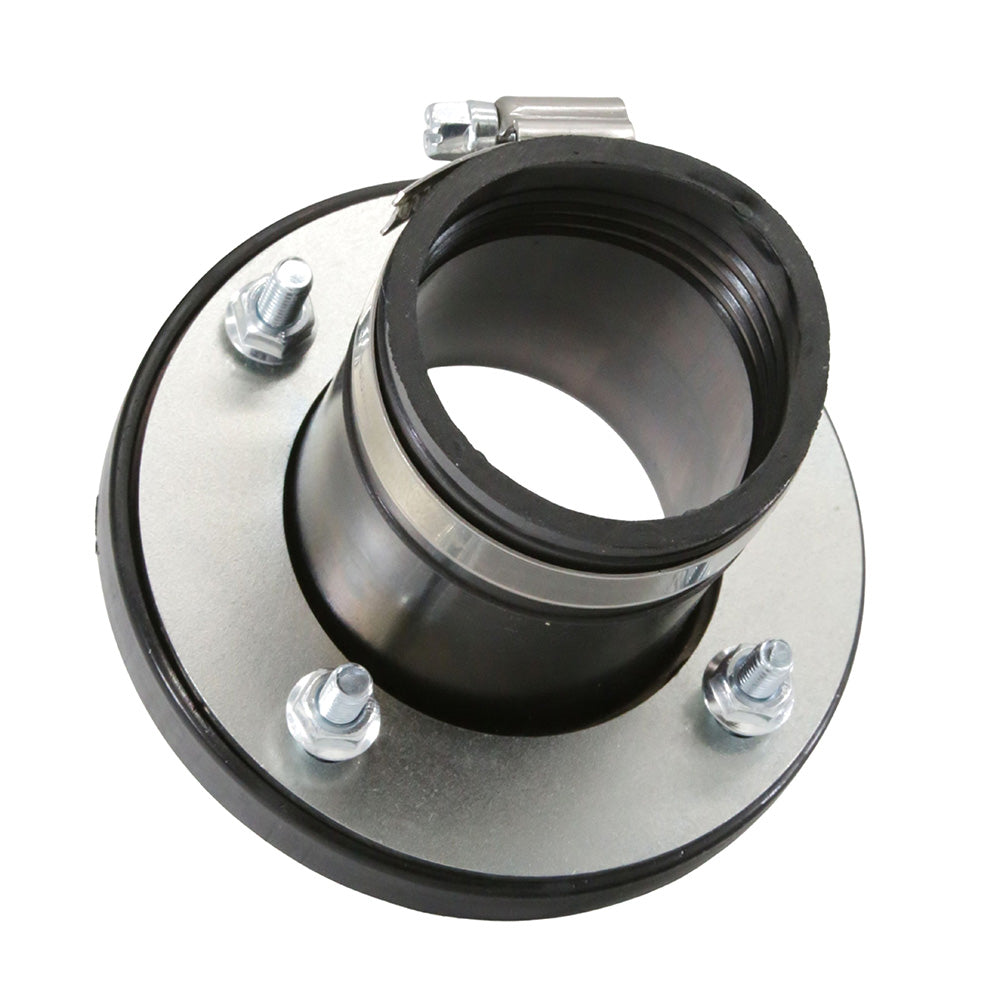

Barton Marine BPG-50 Bulkhead Pipe Gland for 50mm OD Pipes

BPG-50 Bulkhead Pipe Gland 50mm OD

The Barton Bulkhead Pipe Gland BPG-50 is for pipes with an outer diameter between 45-50mm (13/4 2). The required hole cutter is 60mm. It has 4 M6 fasteners supplied.

These glands give a water and vapor-proof seal between bulkheads. They are flexible and will accommodate curved surfaces and pipe entry at an angle. They are easy to fit and fully serviceable in situ.

Features:

• Vapor and watertight construction
• Seals the aperture for pipe and tube integration
• Compatible with angled pipes and curved surfaces
• Sealed but fully serviceable and adjustable
• Stainless Steel and Nitrile Rubber (BS2751)
• Suitable for bulkheads up to 35mm thick

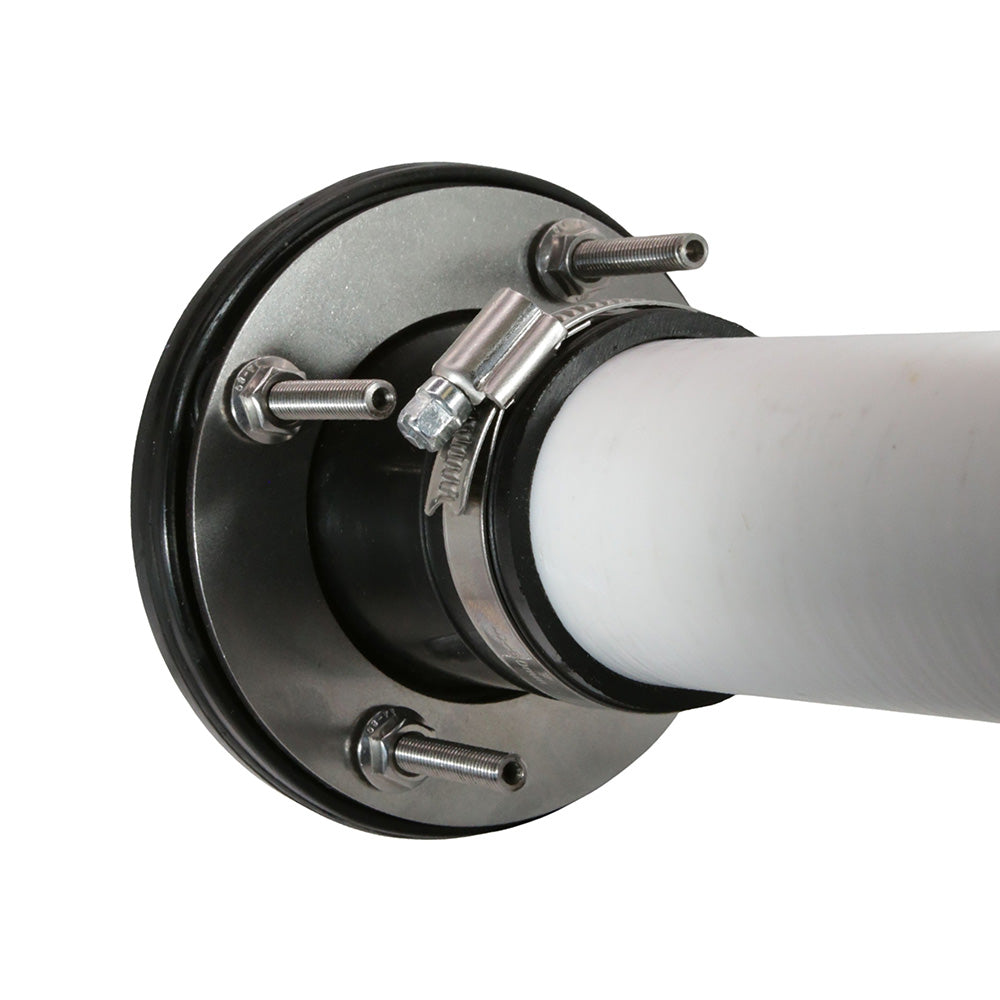

The Barton Marine BPG-50 Bulkhead Pipe Gland is designed to provide a reliable, watertight, and vapor-tight seal for pipes with an outer diameter of 45 to 50mm (1 3/4 to 2 inches). Crafted with durability in mind, this gland features a sturdy stainless steel body combined with nitrile rubber seals that meet BS2751 standards, ensuring long-lasting performance in marine and industrial applications. The gland is compatible with bulkhead thicknesses up to 1 3/8 inches, making it suitable for various vessel or enclosure designs. Its flexible construction allows it to accommodate curved surfaces and angled pipe entries, simplifying installation and maintenance. The gland comes with four M6 fasteners for secure mounting and can be fully serviced and adjusted without removing it from the bulkhead, providing ongoing reliability and ease of use. Whether sealing through bulkheads or other panels, the Barton BPG-50 offers an effective solution for ensuring a tight seal in demanding environments, preventing water ingress and vapor escape, while maintaining ease of installation and serviceability.

Features:

• Vapor and watertight construction to prevent leaks

• Seals the aperture for pipe and tube integration

• Compatible with angled pipes and curved surfaces

• Sealed but fully serviceable and adjustable

• Constructed from stainless steel and nitrile rubber (BS2751)

• Suitable for bulkheads up to 1 3/8 inches thick
