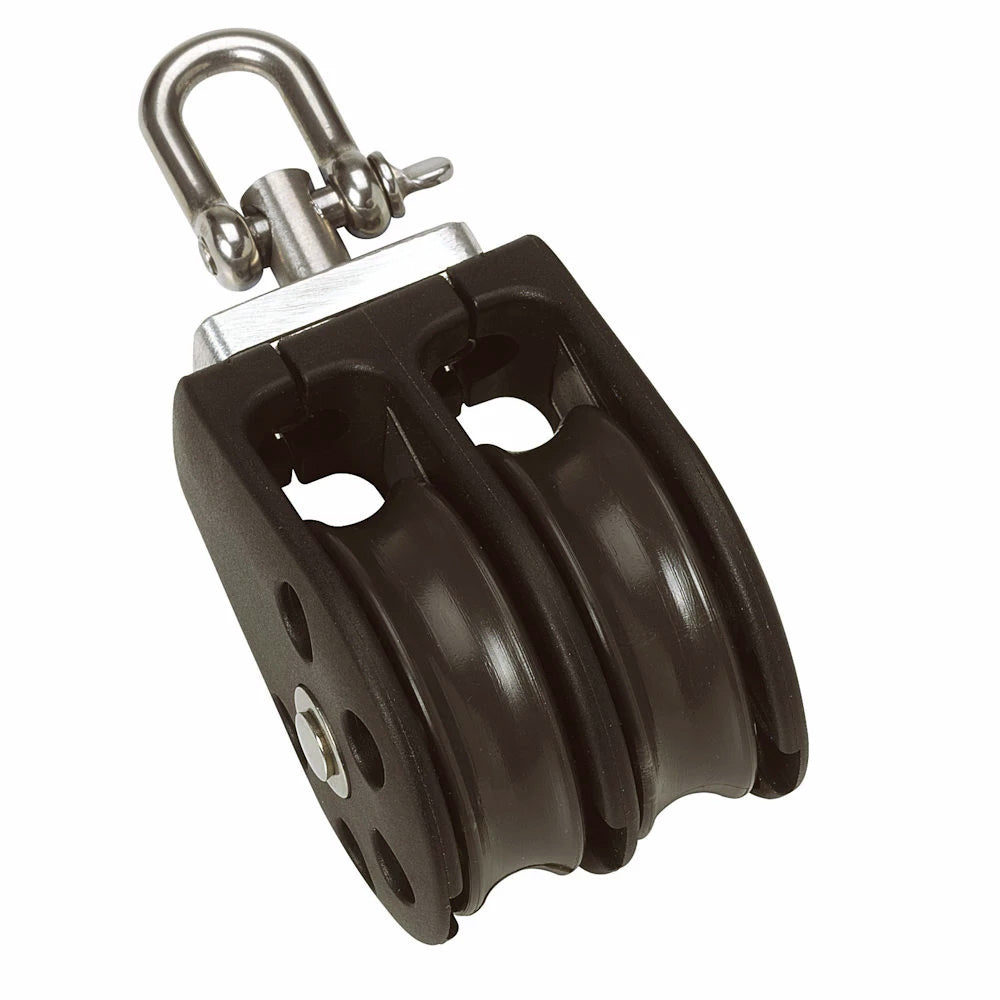

Barton Marine Size 2 35mm Double Plain Bearing Pulley Block with Swivel

Size 2 35mm Plain Bearing Pulley Block Double with Swivel

The Barton Size 2 Plain Bearing Block has a 35mm (1 3/8) sheave. This block range size provides high performance and load values in a variety of assemblies configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.

Suitable for up to 8mm (5/16) rope.

Specifications:

• Weight: 87g
• Dimensions: 83 39 38 mm
• Size: 2 (35MM)
• Block Type: Fixed Eye
• No. of Sheaves: Double
• Bearing Type: Plain
• Sheave Size: 35mm x 11mm (1 3/8 x 15/32)
• Max rope diameter: 8mm (5/16)
• SWL: 370kg (815lbs)
• Break load: 740kg (1630lbs)
• Max rolling load (ball bearing blocks): 260kg (573lbs)

The Barton Marine Size 2 Double Pulley Block with a 35mm sheave offers reliable performance for a variety of sailing applications. Crafted with an internal stainless steel frame and precision components, this pulley ensures durability and smooth operation even under high load conditions. Its lightweight design makes it an excellent choice for yachts and other marine vessels where weight savings are critical. Suitable for up to 8mm (5/16 inch) ropes, the pulley maintains strength and stability during demanding maneuvers. The double sheave configuration allows for efficient line management, reducing friction and wear, which is vital for maintaining rig integrity and performance over time. The plain bearing type ensures low maintenance and consistent operation, while the swivel feature allows for easy attachment and maneuverability in complex rigging setups. Whether you're upgrading your existing hardware or outfitting a new rig, this pulley offers a perfect balance of strength, weight, and ease of use.
