The Barton Size 2 Plain Bearing Block has a 35mm (1 3/8) sheave. This block range size provides high performance and load values in a variety of assemblies configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.
Suitable for up to 8mm (5/16) rope.
Specifications:
Weight: 99g
Dimensions: 100 39 38 mm
Size: 2 (35MM)
Block Type: Fixed Eye + Becket
No. of Sheaves: Double
Bearing Type: Plain
Sheave Size: 35mm x 11mm (1 3/8 x 15/32)
Max rope diameter: 8mm (5/16)
SWL: 370kg (815lbs)
Break load: 740kg (1630lbs)
Max rolling load (ball bearing blocks): 260kg (573lbs)

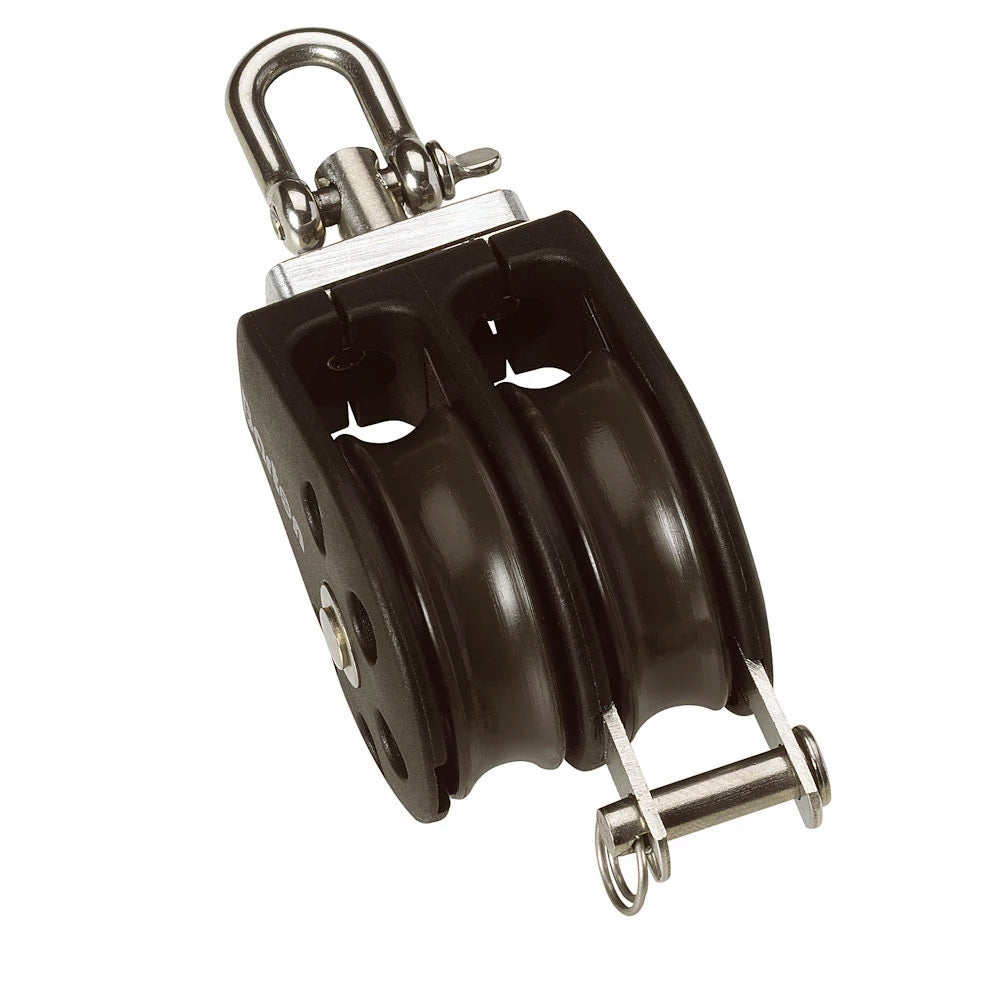

The Barton Marine Size 2 Plain Bearing Pulley Block with Double Swivel and Becket is engineered for high performance and reliability on any yacht or marine application. Featuring a 35mm (1 3/8 inch) sheave, this pulley provides efficient load handling for ropes up to 8mm (5/16 inch) in diameter. Its internal stainless steel frame ensures durability and corrosion resistance, making it suitable for the harsh marine environment. The precision components and lightweight design facilitate ease of use in a variety of assembly configurations, whether for halyards, control lines, or other rigging purposes. The double sheave configuration allows for smooth operation and increased load capacity, while the plain bearing type offers low friction and minimal maintenance. Whether you're upgrading existing hardware or outfitting a new rig, this pulley block is an excellent choice for sailors seeking dependable performance. Its compact dimensions and sturdy construction make it versatile for numerous applications onboard, providing both strength and ease of handling in a lightweight package. Trust Barton Marine’s expertise and quality to ensure your sailing experience is optimized with gear that performs reliably under demanding conditions.
Features:
Size 2 (35mm) sheave for versatile rigging applications
Double sheave configuration for efficient load distribution
Plain bearing type for smooth operation
Internal stainless steel frame for corrosion resistance
Suitable for ropes up to 8mm (5/16 inch) in diameter
Lightweight design for easy handling and installation
Maximum working load of 815 lbs and break load of 1630 lbs
