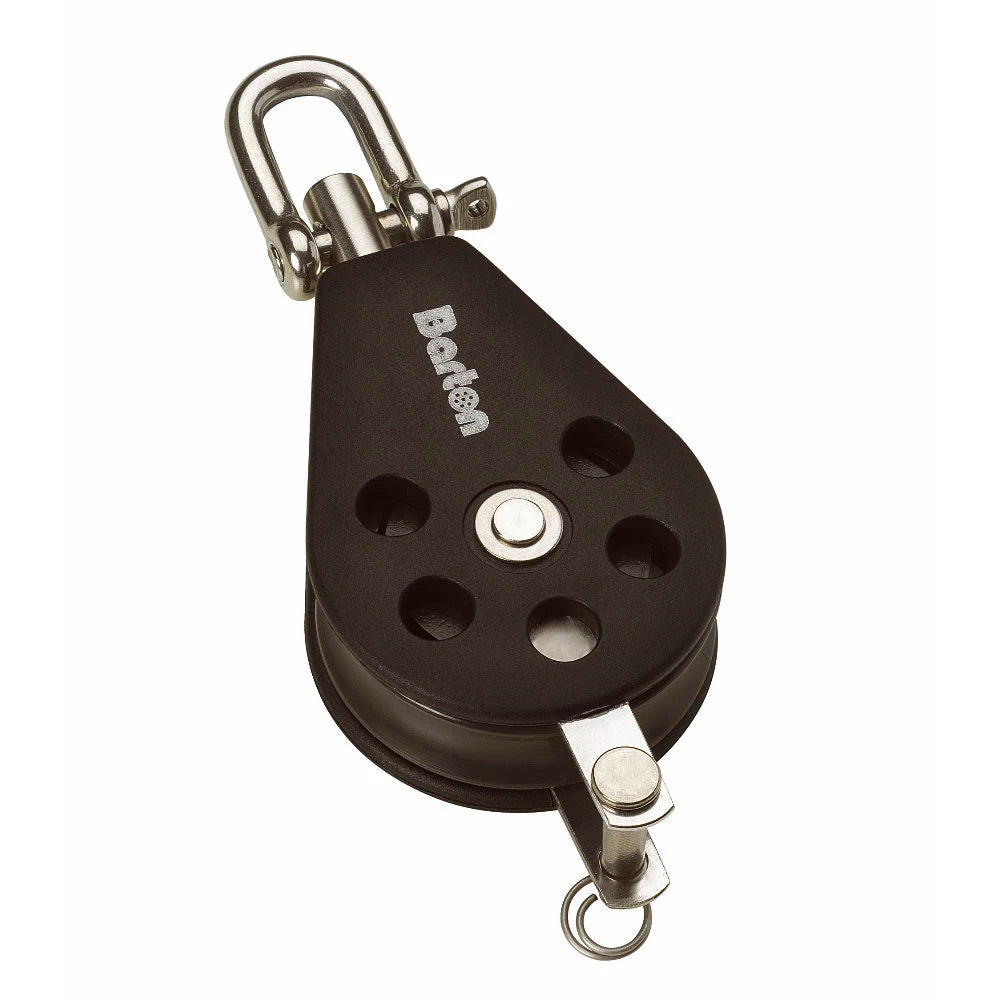

Barton Marine Size 2 35mm Plain Bearing Pulley Block with Swivel & Becket

Size 2 35mm Plain Bearing Pulley Block Single Swivel Becket

The Barton Size 2 Plain Bearing Block has a 35mm (1 3/8) sheave. This block range size provides high performance and load values in a variety of assemblies configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.

Suitable for up to 8mm (5/16) rope.

Specifications:

• Weight: 60 g
• Dimensions: 93 38 24 mm
• Size: 2 (35MM)
• Block Type: Swivel + Becket
• No. of Sheaves: Single
• Bearing Type: Plain
• Sheave Size: 35mm x 11mm (1 3/8 x 15/32)
• Max rope diameter: 8mm (5/16)
• SWL: 370kg (815lbs)
• Break load: 740kg (1630lbs)
• Max rolling load (ball bearing blocks): 260kg (573lbs)

The Barton Marine Size 2 plain bearing pulley block with swivel and becket is designed for demanding sailing applications where reliable performance and lightweight construction are essential. Featuring a 35mm (1 3/8 inch) sheave, this block is suitable for use with ropes up to 8mm (5/16 inch) in diameter. Its internal stainless steel frame and precision components ensure durability and smooth operation under load, making it an ideal choice for a variety of yacht rigging configurations. Whether for halyards, sheets, or other control lines, this pulley block provides high load capacities with an SWL of 370kg (815 lbs) and a break load of 740kg (1,630 lbs). Its single sheave design minimizes friction and maximizes efficiency, while the swivel feature allows for easy alignment and positioning during sailing maneuvers. The becket attachment enhances versatility, enabling quick attachment and detachment of lines or hardware. Weighing only 2.4 ounces, this lightweight block is perfect for sailors seeking performance without added weight on their vessel. The compact dimensions and robust construction make the Barton Size 2 pulley an essential component for performance-minded boaters who demand reliability and ease of use in their rigging systems.

Features:

• Size 2 (35mm) sheave for versatile applications

• Plain bearing for smooth and reliable operation

• Swivel with becket for easy line attachment and positioning

• Suitable for ropes up to 8mm (5/16 inch)

• Internal stainless steel frame enhances durability and corrosion resistance

• Lightweight design weighing only 60 grams (2.1 oz)

• High working load limit of 370kg (815 lbs) and break load of 740kg (1,630 lbs)

• Single sheave configuration reduces friction for efficient sailing performance

• Compact dimensions ideal for space-constrained rigging setups

• Perfect for yachts, sailboats, and other marine applications
