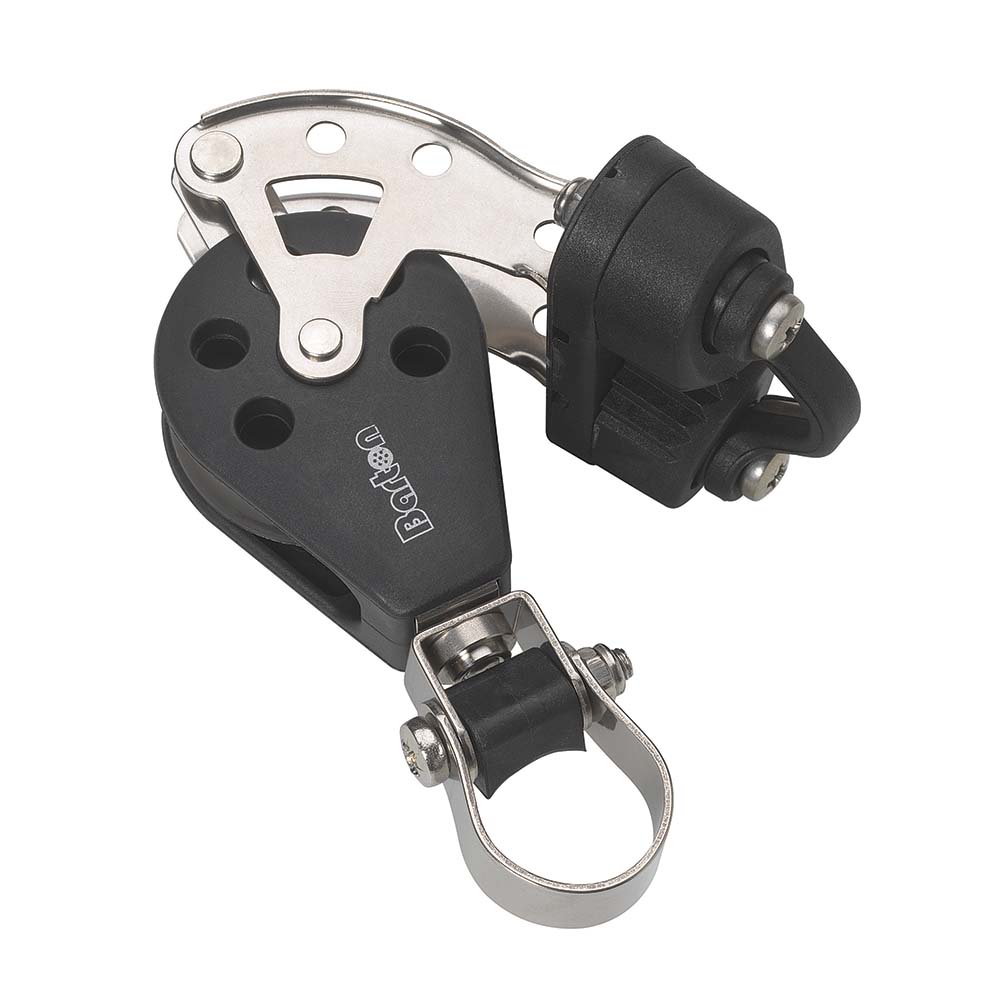

Barton Marine Size 3 Stanchion Lead Block with Becket & Cam Cleat - Model N03591

Size 3 Stanchion Lead Block - Single with Becket Cam Cleat

Barton Marine's stanchion lead blocks have proven to be popular with Cruising sailors all over the World. Mounted onto the stanchion base, the stanchion lead block enables the Genoa furling line to be led back to the cockpit for easy adjustment.

Ball bearing sheaves have a precision molded acetal sheave running on a significant diameter brass bearing, ensuring free running under the highest loads. The unit will fully rotate about the swivel head to match your pulling angle.

Cam cleat will secure the line into place.

Block attachment to stanchion is by means of screwing together the integral Stainless Steel strap.

Technical Specifications

• Sheave - Single
• Sheave Size - 1-3/4" (45mm)
• Maximum Rope Diameter - 3/8" (10mm)
• Safe Working Load - 881 lb (400 kg)
• Maximum Stanchion (Tube) Size - 1" (25mm)

*Sold as an Individual

The Barton Marine Size 3 Stanchion Lead Block with Becket and Cam Cleat is designed to enhance your sailing experience by providing reliable and efficient line management. Perfect for cruising sailors, this lead block mounts directly onto your stanchion base, allowing you to lead the Genoa furling line back to the cockpit for effortless adjustments and improved control during navigation. Crafted with high-quality materials, it ensures durability and smooth operation even under demanding conditions. The ball bearing sheaves feature a precision-molded acetal sheave riding on a robust brass bearing, enabling free movement under heavy loads and reducing line friction for smoother operation. The unit’s full rotation capability about the swivel head allows it to adapt seamlessly to your pulling angle, making sail handling more manageable and precise. The integrated cam cleat securely holds the line in place, providing a quick and reliable way to lock the line and maintain tension without additional equipment. Attaching the block to your stanchion is straightforward, thanks to the stainless steel strap that screws together, ensuring a secure fit for stanchion tubes up to 1 inch in diameter. This lead block is built to handle a maximum rope diameter of 3/8 inch and a safe working load of 881 pounds, making it suitable for a variety of line sizes and sailing conditions. Whether you're upgrading your existing sail equipment or outfitting a new vessel, the Barton Marine Size 3 Stanchion Lead Block offers a combination of robust construction, ease of use, and dependable performance that sailors worldwide trust for safe and efficient sail management.

Features:

• Sheave: Single 1-3/4 inch (45mm) diameter with brass bearing for smooth operation

• Maximum Rope Diameter: 3/8 inch (10mm) for versatile line compatibility

• Swivel Head: Fully rotatable to match pulling angles for ease of handling

• Mounting: Secure attachment to stanchion tubes up to 1 inch (25mm) diameter with stainless steel strap

• Load Capacity: Safe working load of 881 pounds (400 kg) ensures durability under heavy loads

• Cam Cleat: Integrated for quick and secure line locking

• Construction: High-quality materials designed for reliability and longevity in marine environments
