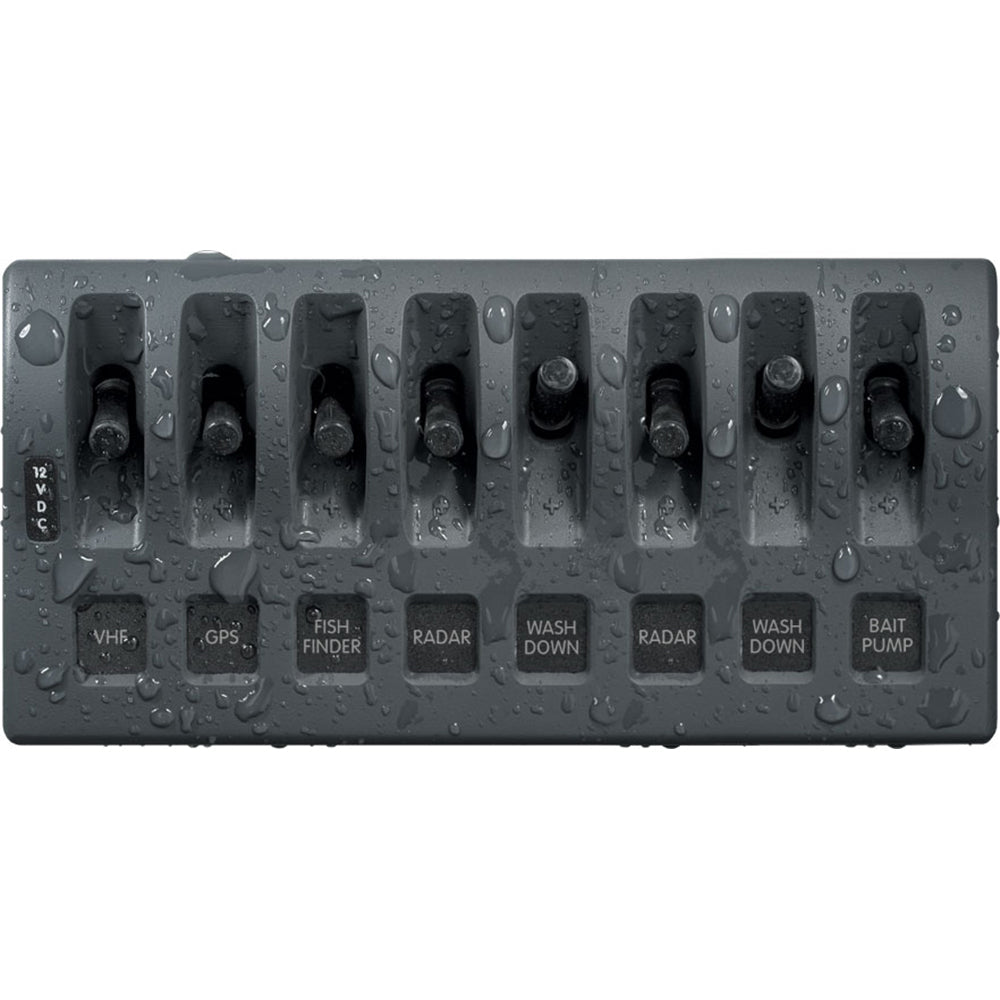

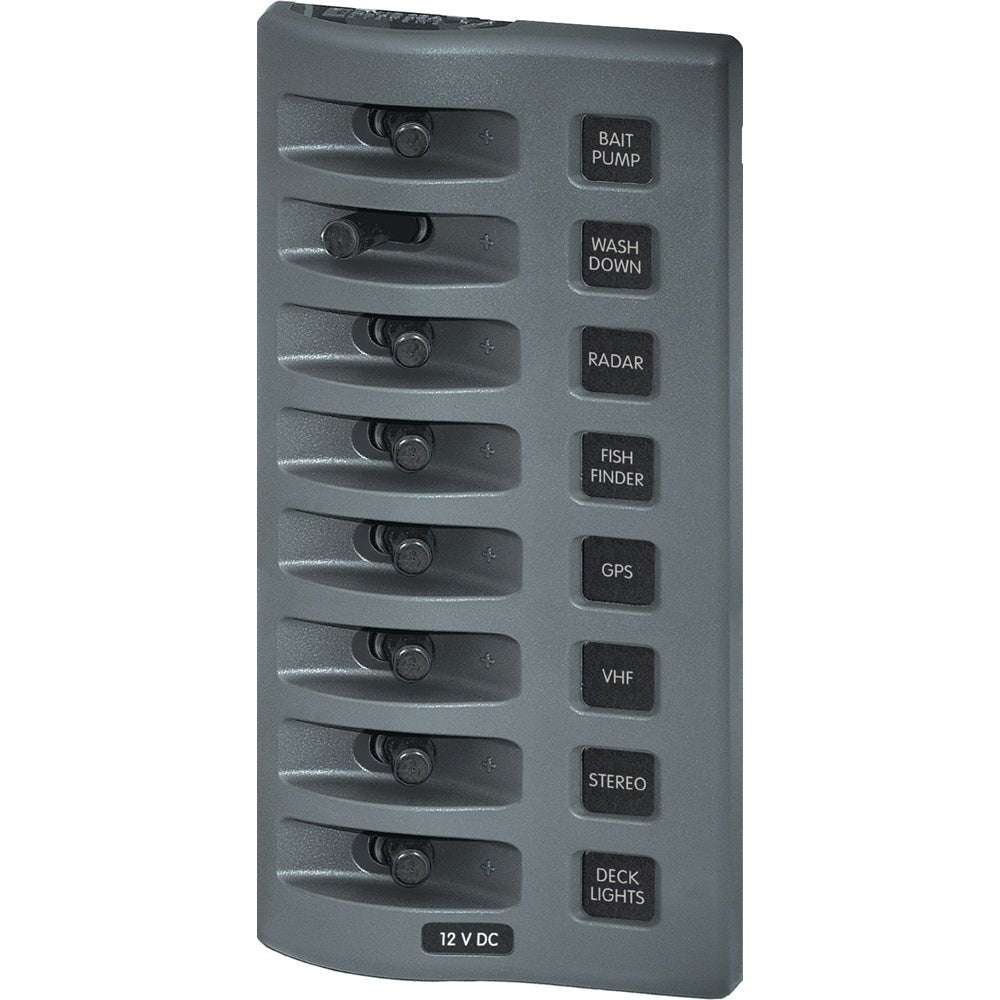

Blue Sea 4309 WeatherDeck® 12V DC Waterproof Switch Panel - 8 Position
Blue Sea 4309 WeatherDeck® 12V DC Waterproof Switch Panel - 8 Position
SKU:51816
Regular price
$119.97 USD
Regular price
Sale price
$119.97 USD
Unit price
per
13 in stock
Couldn't load pickup availability
- 30-Day Returns
- Secure Checkout
- Shipping Options at Checkout
Shipping & Delivery
Shipping & Delivery
Available shipping options, rates, and estimated delivery windows are shown at checkout. Tracking is emailed when available.
Returns & Refunds
Returns & Refunds
Eligible items may be returned within 30 days of delivery. Items must be new, unused, uninstalled, and in original packaging. An RMA is required.
Installment options at checkout are provided by Shop Pay and its partners and are subject to eligibility. Options depend on your purchase amount and may require a credit check by the financing partner. Terms, rates, and eligibility are determined by the financing partner. For details, see the Shop Pay Installments terms during checkout.
WeatherDeck® 12V DC Waterproof Switch Panel - 8 Position
Weatherproof: Waterproof
Positions: 8
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material: Reinforced Polycarbonate
Height: 7.70"(195.58 mm)
Width : 3.88"(98.55 mm)
Depth: 2.50"(63.5 mm)
Weight: 1.55lb (0.7 kg)
- Integrated switch guards reduce the risk of accidental switching
- Panels can be mounted in four different orientations
- Panel front rated IP67 when properly mounted with watertight mounting gasket
- UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws
Weatherproof: Waterproof
Positions: 8
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material: Reinforced Polycarbonate
Height: 7.70"(195.58 mm)
Width : 3.88"(98.55 mm)
Depth: 2.50"(63.5 mm)
Weight: 1.55lb (0.7 kg)
