Blue Sea Systems

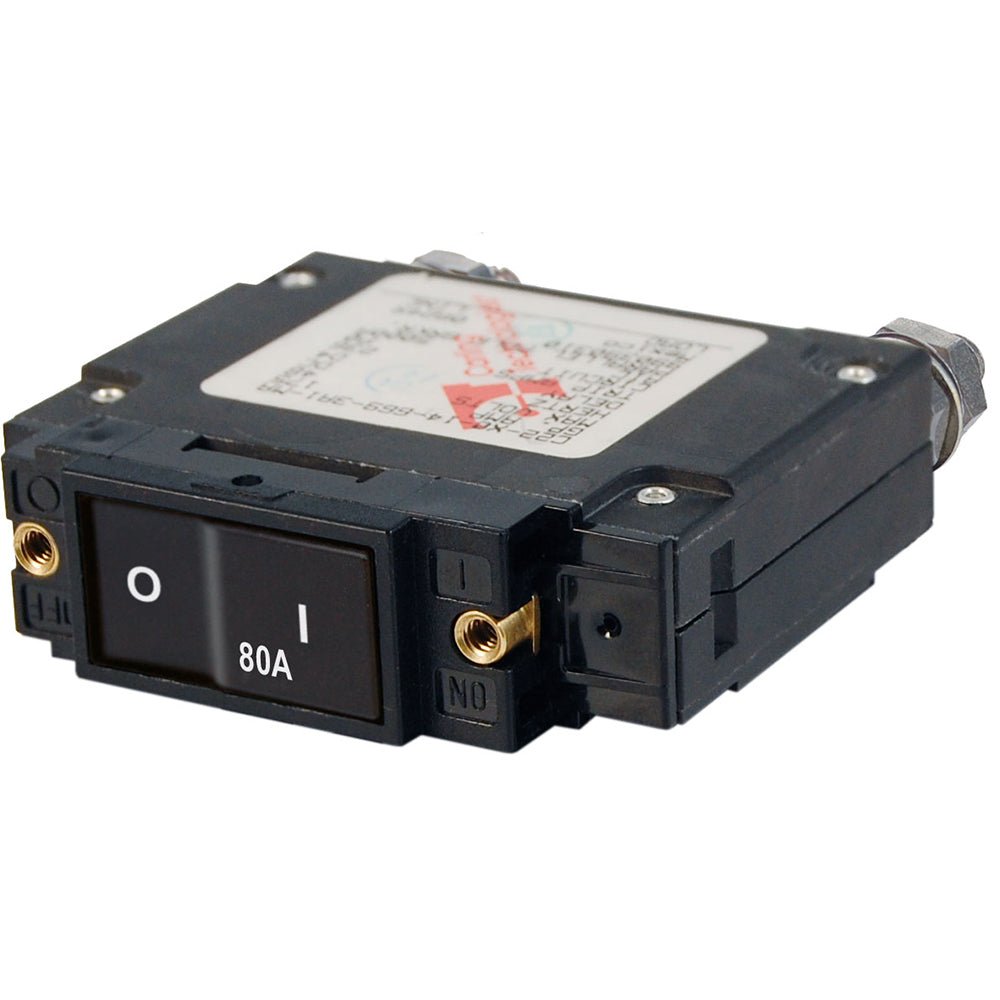

Blue Sea 7548 C-Series Flat Rocker Circuit Breaker - Single Pole - 80A
Blue Sea 7548 C-Series Flat Rocker Circuit Breaker - Single Pole - 80A
SKU:65288
Regular price
$61.97 USD
Regular price
Sale price
$61.97 USD
Unit price
per
Low stock: 4 left
Couldn't load pickup availability
- 30-Day Returns
- Secure Checkout
- Shipping Options at Checkout
Shipping & Delivery
Shipping & Delivery
Available shipping options, rates, and estimated delivery windows are shown at checkout. Tracking is emailed when available.
Returns & Refunds
Returns & Refunds
Eligible items may be returned within 30 days of delivery. Items must be new, unused, uninstalled, and in original packaging. An RMA is required.
Installment options at checkout are provided by Shop Pay and its partners and are subject to eligibility. Options depend on your purchase amount and may require a credit check by the financing partner. Terms, rates, and eligibility are determined by the financing partner. For details, see the Shop Pay Installments terms during checkout.
C-Series Flat Rocker Circuit Breaker - Single Pole - 80A
Features:
Specifications:
Features:
- Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
- Color actuator indicates "OFF" position
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- "Trip Free" - cannot be held closed after trip
- Ignition protectedsafe for installation aboard gasoline powered boats
Specifications:
- Amperage: 80A AC / 80A DC
- Actuator Style: Flat Rocker
- Poles: 1
- Maximum Voltage: 240V AC / 48V DC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Terminal Stud Torque: 35 in-lb (3.95 Nm)
- Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Switching Cycles: 10000
- Terminal Stud: 1/4-20 Tin-Plated Brass
- Weight: 0.38lb (0.17 kg)
