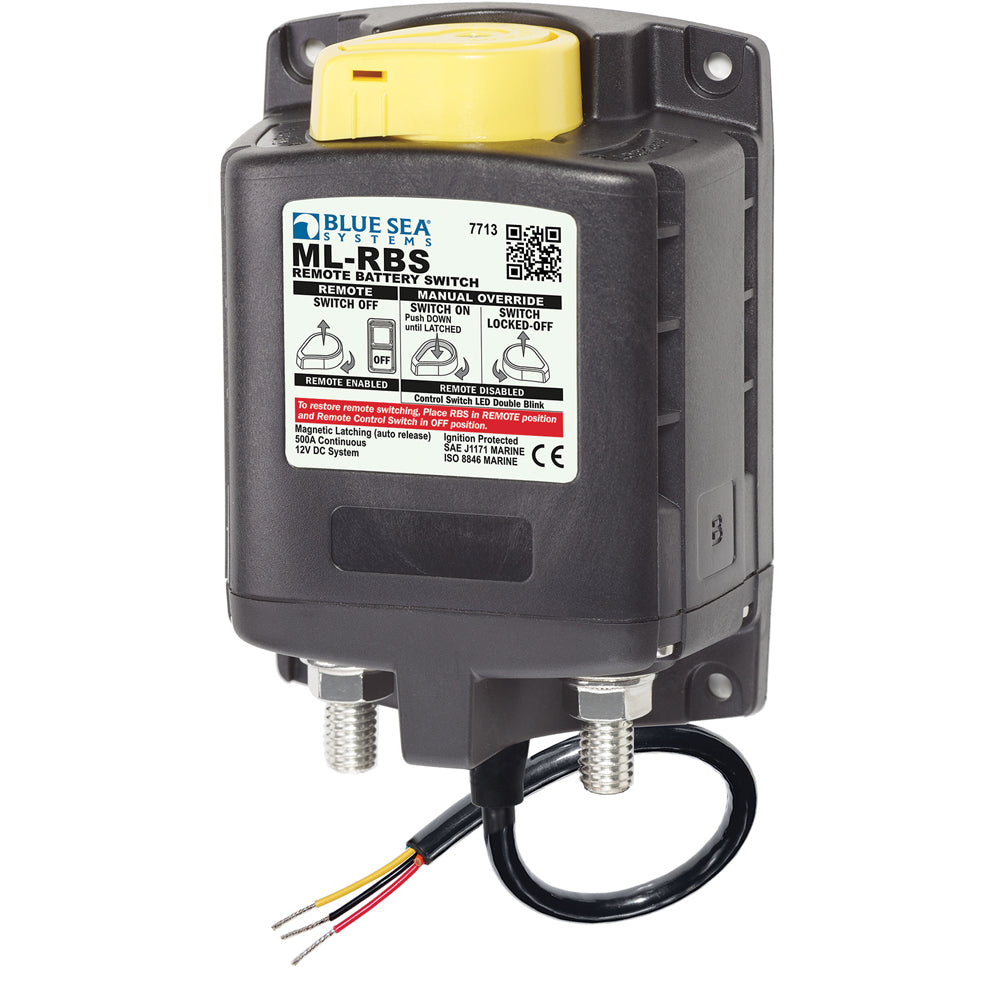

ML-RBS Remote Battery Switch with Manual Control Auto-Release - 12V

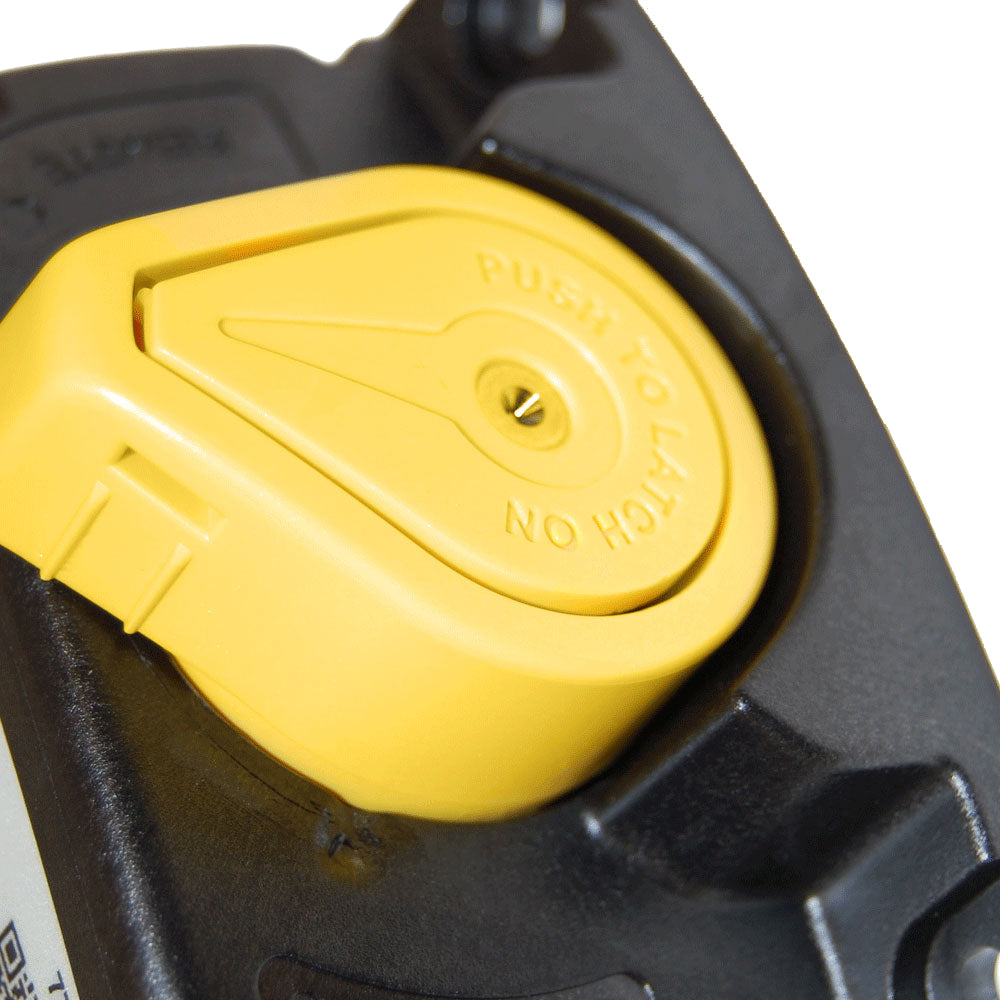

- Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
- LED output to remotely indicate switch state - requires optional LED
- 3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/ 8" (22mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Silver alloy contacts provide high reliability for switching live loads
Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired
SpecificationsControl Circuit Connection:Tinned Wire
Nominal Voltage:12V DC
Coil Function: Auto releasing
Mounting: #10
Amperage Operating Current:8mA when OFF/13mA when ON
Amperage Operating Current when changing state: <7A (40 ms)
Control Circuit Voltage: 10.1 to 16.5V DC
Continuous Rating: 500A
Intermittent Rating: 700A (5 min)
Cranking Rating: 10 sec 2500A
Cranking Rating: 1 min 1100A
Minimum Operating Temperature: -10 C
Maximum Operating Temperature: 50 C
Cable Size to Meet Ratings: 2x (4/0)
Live Current Switching: 300A @ 12V DC 10,000 Cycles
Master Control Switch Capability: Yes
Mechanical Endurance: 100,000 Cycles
Switching Cycles: 100,000
Terminal Ring Diameter Clearance: 1.18" (29.97mm)
Terminal Stud Length: 0.875" (22.23mm)
Terminal Stud Size: 3/8-16 (M10)
Terminal Stud Torque: 140 in-lb (15.82 Nm)
Weight: 1.75lb (0.79 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Designed for high-current 12-volt DC battery management, the Blue Sea Systems 7713 ML-RBS Remote Battery Switch combines remote SPST or SPDT control with a manual override knob for dependable system control. It is suited for marine, automotive, and other electrical installations where operators need to disconnect battery power remotely while retaining local manual control and a locked-off position for servicing.
The auto-releasing ML-Series battery switch provides a 500-amp continuous rating and supports high-current switching applications. Silver alloy contacts are designed for reliable live-load switching, while tin-plated copper studs help support conductivity and corrosion resistance. The manual override can operate with or without power, and the optional LED output can be used to remotely indicate switch status. Recessed labeling areas support clear circuit identification during installation and maintenance.
With a 12V DC control circuit, tinned-wire connection, and #10 mounting specification, the Blue Sea Systems 7713 is built for installations requiring remote battery isolation and high-capacity switching. Its 3/8-16 terminal studs accept multiple cable terminals, and its operating ratings support continuous, intermittent, and cranking applications when properly installed with appropriately sized cables.
Key Features
-
Manual override control: Operate the switch with or without power and use the locked-off position for servicing.
-
High-current switching: Provides a 500A continuous rating, 700A intermittent rating for 5 minutes, and cranking ratings up to 2,500A for 10 seconds.
-
Remote status capability: LED output supports remote indication of switch state when used with an optional LED.
-
Durable electrical connections: Tin-plated copper 3/8-16 studs and silver alloy contacts support conductivity, corrosion resistance, and live-load switching.
-
Remote control compatibility: Can be controlled with an SPST or SPDT switch where a normally open relay is desired.
Product Details
-
Brand: Blue Sea Systems
-
Part number: 7713
-
Product type: ML-RBS remote battery switch with manual control and auto-release
-
Nominal voltage: 12V DC
-
Control circuit voltage: 10.1 to 16.5V DC
-
Control circuit connection: Tinned wire
-
Continuous rating: 500A
-
Intermittent rating: 700A for 5 minutes
-
Cranking rating: 2,500A for 10 seconds; 1,100A for 1 minute
-
Terminal studs: 3/8-16, M10; 0.875 inches long
-
Terminal stud torque: 140 in-lb
-
Mounting: #10
-
Operating temperature: -10°C to 50°C
-
Weight: 1.75 lb
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Choose the Blue Sea Systems 7713 for remote 12V battery switching with manual control, high-current capacity, and practical service isolation.
