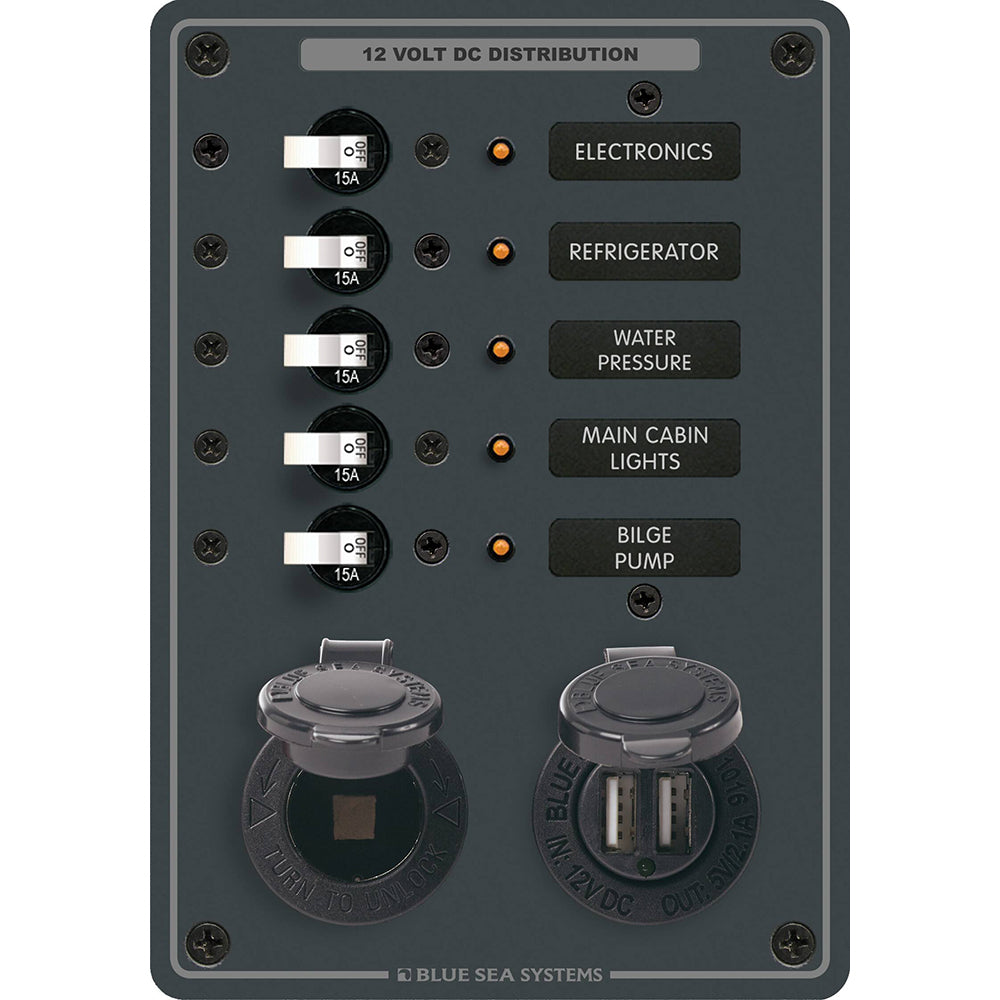

Blue Sea Systems 8120 5-Position 12V DC Battery Management Panel with Dual USB and 12V Socket

8120 - 5 Position 12V Panel w/Dual USB 12V Socket

Part of the Blue Sea Systems Battery Management Panels. Distribute current from a high amperage source to lower amperage circuits.

Features:

• ON-indicating LEDs
  • Backlit label positions
• All positive, negative, and grounding buses installed, fully pre-wired

Specifications:

• Positions - Five (5)
• Nominal Voltage - 12V DC
• Maximum Amperage - 50A
• Circuit Breaker Type - Magnetic Hydraulic - Trip Free
• USB Output - 12/24V Dual USB
• Socket Output - 12V Dash socket
• Dimensions (H x W x D) - 7.5" x 5.25" x 2.5" (191 x 133 x 64mm)

In the Box:

• 8120 Panel
• Instruction Manual

*Sold as an Individual

The Blue Sea Systems 8120 5-Position 12V DC Battery Management Panel distributes current from a high-amperage power source to lower-amperage circuits. Designed for marine electrical systems and other 12V applications, this pre-wired panel combines circuit protection, illuminated controls, dual USB charging, and a 12V dash socket in one organized solution.

With five circuit positions and a maximum amperage rating of 50A, the 8120 panel helps simplify power distribution while keeping connected circuits clearly controlled. ON-indicating LEDs provide visible status information, while backlit label positions make the panel easier to read in low-light conditions. Positive, negative, and grounding buses are installed and fully pre-wired to help streamline installation.

Key Features:

• Five circuit positions: Distribute 12V DC power from a high-amperage source to multiple lower-amperage circuits.
• Pre-wired bus system: Positive, negative, and grounding buses are installed for a more organized electrical installation.
• Illuminated controls: ON-indicating LEDs and backlit label positions improve visibility during operation.
• Integrated USB charging: Dual USB output supports charging from 12V or 24V sources.
• 12V accessory power: Built-in 12V dash socket provides a convenient connection for compatible accessories.
• Circuit protection: Magnetic hydraulic, trip-free circuit breakers provide protection for connected circuits.

Product Details:

• Brand: Blue Sea Systems
• Part number: 8120
• Product type: Battery management panel
• Positions: Five
• Nominal voltage: 12V DC
• Maximum amperage: 50A
• Circuit breaker type: Magnetic hydraulic, trip-free
• USB output: 12/24V dual USB
• Socket output: 12V dash socket
• Included: 8120 panel and instruction manual
• Quantity: Sold individually

Choose the Blue Sea Systems 8120 for a streamlined 12V power distribution panel with integrated circuit protection, charging connections, and accessory power in a single pre-wired assembly.
