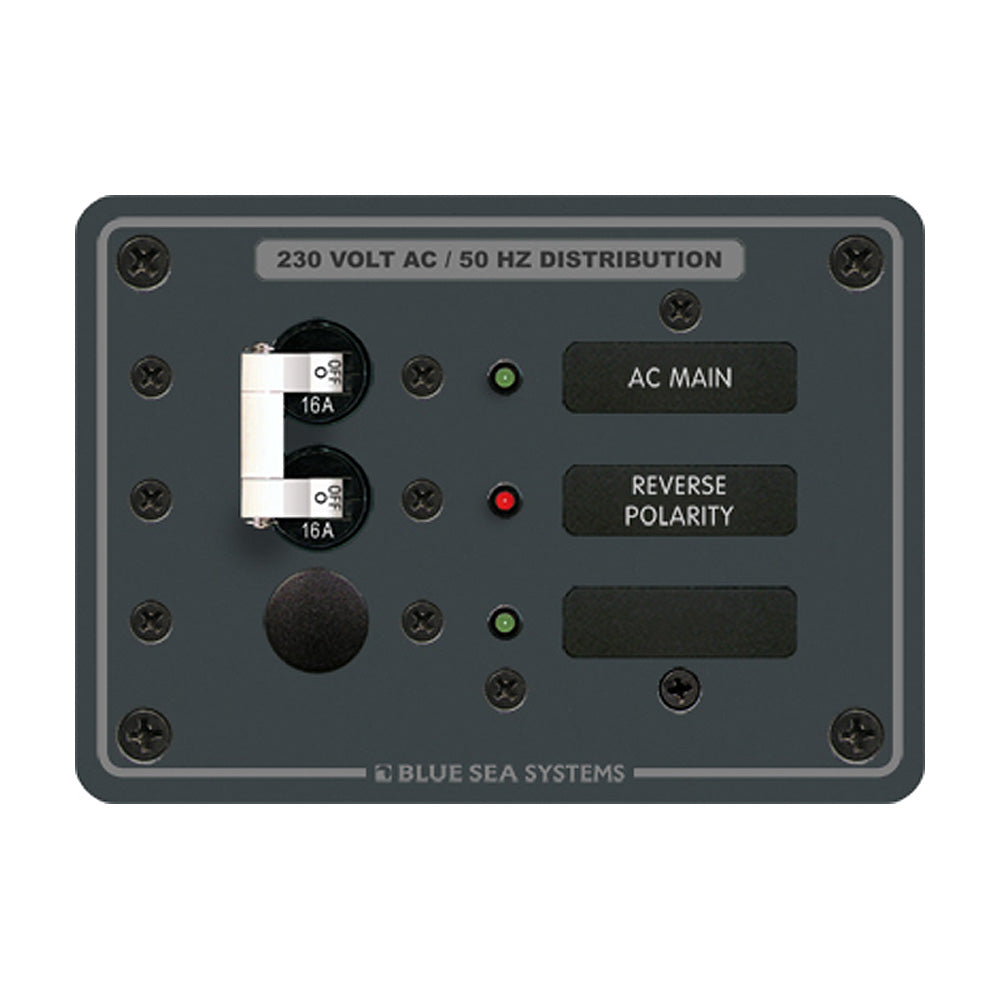

Blue Sea Systems 8129 230V AC Main + Branch A-Series Toggle Circuit Breaker Panel with 16A Double Pole Breaker

• 230V

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual Labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8129 AC Main + Branch A-Series Toggle Circuit Breaker Panel provides a pre-wired 230V AC power distribution solution for marine and other electrical installations requiring a main and branch circuit arrangement. This white-switch panel includes one installed 16A double-pole circuit breaker, illuminated circuit positions, and integrated hot, neutral, and safety ground buses to simplify installation and circuit management.

Built with heavy 1/8-inch 5052 aluminum alloy, the panel features MIL-C-5541C or equivalent immersion undercoating for corrosion resistance and a two-part polyurethane slate gray finish. Red reverse-polarity indication helps identify wiring conditions, while “ON” indicator LEDs provide circuit status visibility. Backlit circuit label positions are included on standard panels, and the countersunk mounting holes provide a clean, finished installation. The panel is rated for a maximum panel amperage of 50 amperes.

The Blue Sea Systems 8129 is suited for installations that need clearly identified 230V AC main and branch circuit control in an industry-standard panel footprint. Detailed installation instructions, a cutout template, and a set of 30 common Large Format Labels are included. Additional labels are available separately, with more than 500 individual label options offered for customized circuit identification.

Key Features

• 230V AC distribution: Provides main and branch circuit control for compatible 230V electrical installations.
• Installed circuit breaker: Includes one 16A double-pole circuit breaker.
• Pre-wired bus system: Hot, neutral, and safety ground buses are installed and fully pre-wired.
• Visible circuit status: Red reverse-polarity LED and “ON” indicator LEDs support quick circuit identification.
• Corrosion-resistant construction: Heavy 1/8-inch 5052 aluminum alloy includes MIL-C-5541C or equivalent immersion undercoating and a two-part polyurethane slate gray finish.
• Installation accessories: Includes installation instructions, cutout template, and 30 common Large Format Labels.

Product Details

• Brand: Blue Sea Systems
• Part number: 8129
• Product type: AC Main + Branch A-Series Toggle Circuit Breaker Panel
• Voltage: 230V AC
• Installed breaker: One 16A double-pole circuit breaker
• Maximum panel amperage: 50 amperes
• Switch color: White
• Panel material: 1/8-inch 5052 aluminum alloy
• Panel footprint: Approximately 8 inches long by 8 inches wide by 4 inches high
• Included labeling: Set of 30 common Large Format Labels

California Proposition 65 Warning

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Choose the Blue Sea Systems 8129 for organized, clearly labeled 230V AC main and branch circuit control in a pre-wired panel format.
