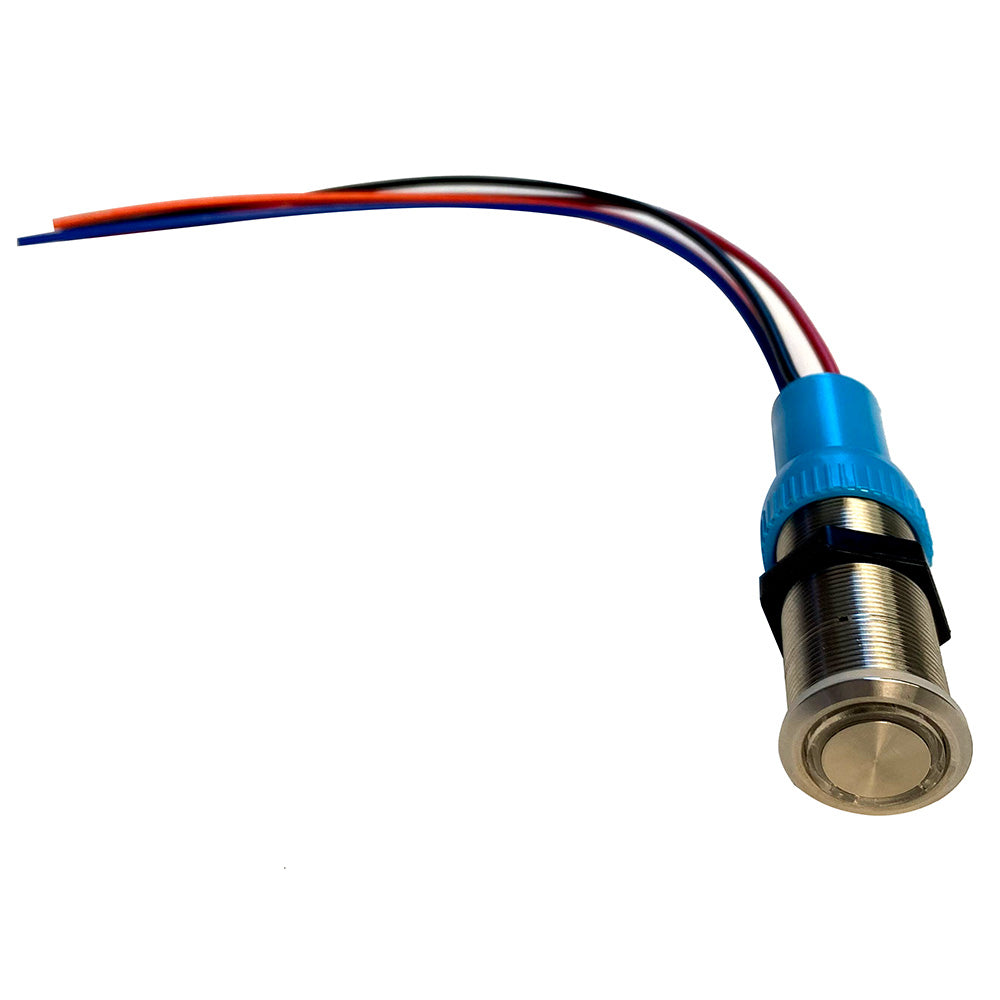

Bluewater 22mm Push Button Switch, Momentary Off-(On), Blue/Red LED, 1 ft Lead, 9059-2113-1

22mm Push Button Switch - Off/(On) Momentary Contact - Blue/Red LED - 1 Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off/(On) momentary contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 1 ft. lead

Specifications:

• Function: Off-(On) (momentary contact)
• Off/On: Blue/red
• Rear Mark Page: Green dot
• Switch Rating: 20A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

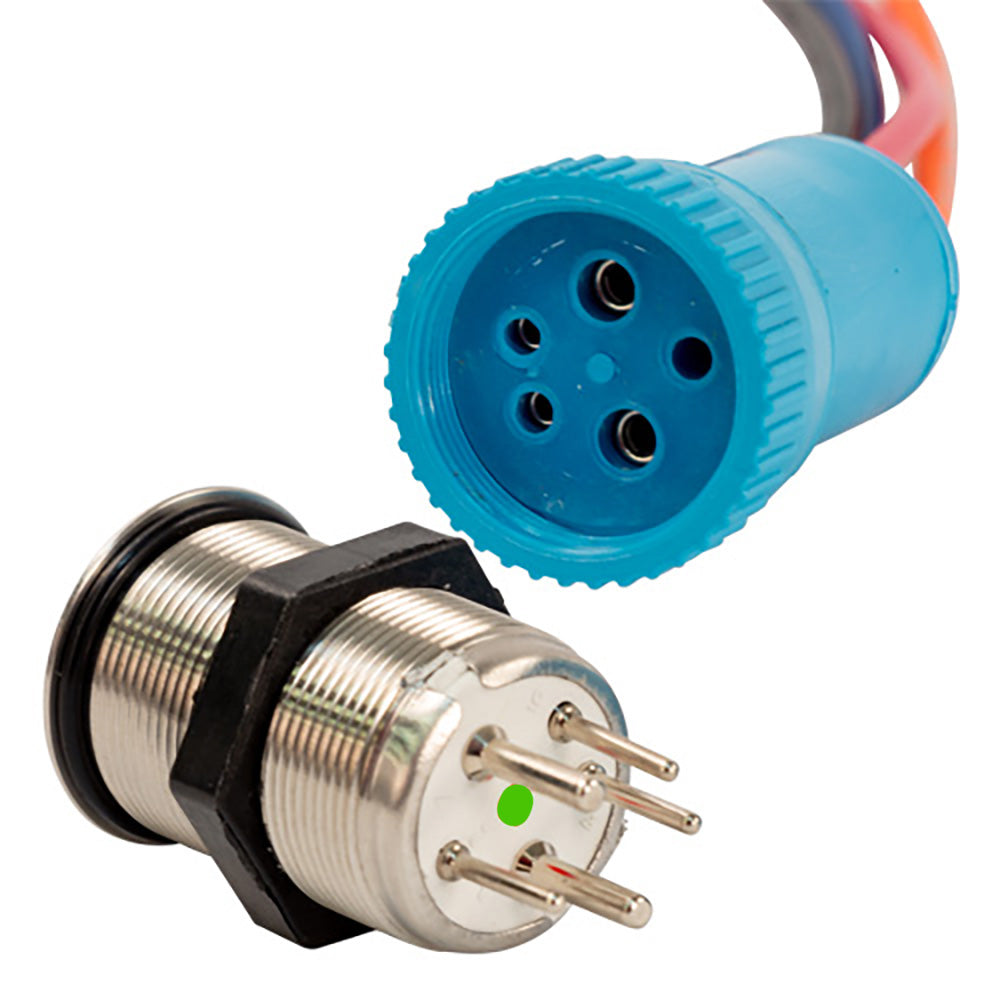

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Bluewater 22mm Push Button Switch 9059-2113-1 adds a clean, modern control solution to dashboards, panels, and other applications requiring a momentary switch. Designed with an Off-(On) momentary contact and a stainless steel construction, this illuminated push button provides clear visual feedback while supporting dependable everyday operation.

The switch features blue LED backlighting when the function is off and changes to red when the function is on, making the control easy to identify in low-light conditions. Its stainless steel body and included gasket provide an IP69K waterproof rating. The included 1-foot lead simplifies wiring, while the color-coded contacts help support a straightforward installation.

To install, drill a 22mm hole through material up to 6mm thick. Connect the three color-coded button contacts, then connect the two LED contacts. This Bluewater push button switch is suited for dashboard and panel installations where momentary operation, illuminated status indication, and a durable stainless steel design are required.

Key Features:

• Momentary operation: Off-(On) function provides momentary contact control.
• Blue/red LED indication: Blue illumination indicates off status, while red illumination indicates the function is on.
• Stainless steel construction: Metal body delivers a durable, modern finish for dashboard and panel applications.
• IP69K waterproof rating: The body design and included gasket provide protection for suitable installations.
• Convenient wiring: Includes a 1-foot lead and color-coded contacts for the button and LED.

Product Details:

• Brand: Bluewater
• Part number: 9059-2113-1
• Switch type: Off-(On) momentary contact
• LED colors: Blue/red
• Rear mark: Green dot
• Switch rating: 20A at 12–24V DC
• Material: Stainless steel
• Mechanical life: 50,000 cycles
• Electrical life: 10,000 cycles
• Installation hole: 22mm; for material up to 6mm thick
• Lead length: 1 foot

Choose the Bluewater 9059-2113-1 for a durable, illuminated momentary push button with clear blue/red status indication and practical panel installation features.
