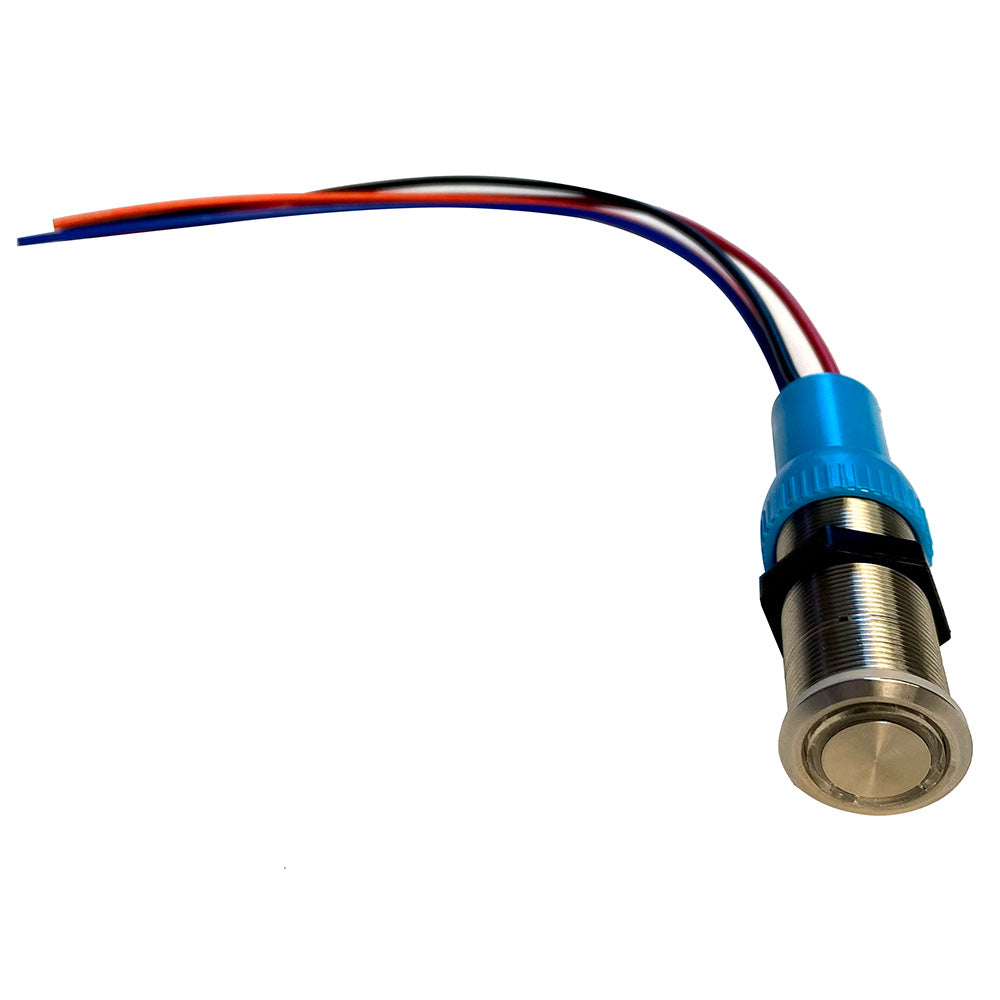

Bluewater 22mm Push Button Switch, Nav/Anc Contact, Blue/Green/Red LED, 1-Foot Lead, Part 9059-3114-1

22mm Push Button Switch - Nav/Anc Contact - Blue/Green/Red LED - 1 Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has a Nav/Anc contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 1 ft. lead

Specifications:

• Function: Nav/Anc
• Off/1st On: Blue/Green
• 2nd On: Red
• Rear Mark Page: White dot
• Switch Rating: 20A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

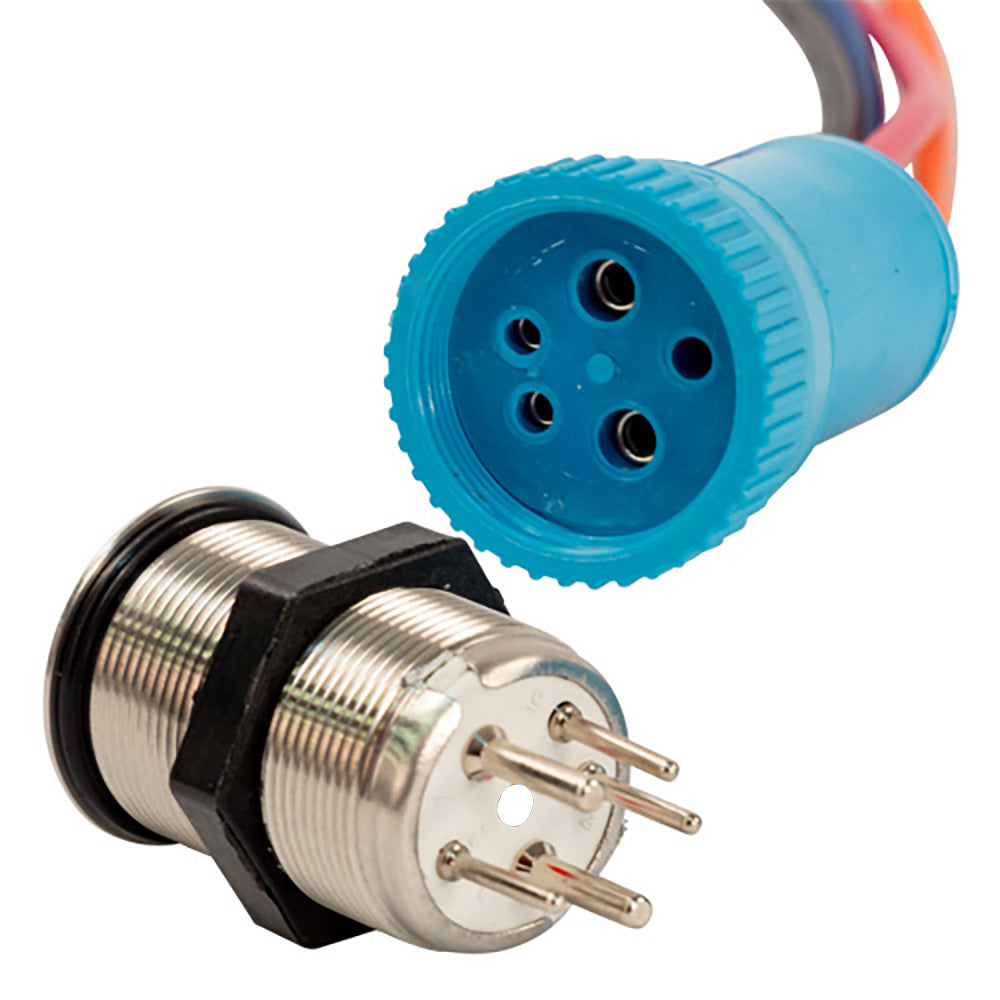

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Bluewater 22mm Push Button Switch adds a clean, modern control to marine dashboards and other 12- or 24-volt DC applications requiring a Nav/Anc function. Designed with a stainless steel-plated metal button, this switch provides tactile operation, clear LED status indication, and a 1-foot lead for convenient wiring.

The included gasket and body design provide an IP69K waterproof rating, helping the switch withstand demanding installation environments. Its LED changes from blue or green in the off/first-on position to red in the second-on position, making the selected function easy to identify, including in low-light conditions. The switch supports a 20-amp rating at 12 or 24 volts DC and is built for repeated operation.

Installation requires drilling a 22mm hole into material up to 6mm thick. Connect the three color-coded button contacts, then connect the two LED contacts. This Bluewater switch is suited for marine dashboards, navigation and anchor light controls, and custom switch panels where a compact metal push button with illuminated status feedback is needed.

Key Features:

• Feature: Nav/Anc contact supports navigation and anchor light control.
• Feature: Blue, green, and red LED illumination provides visible operating status.
• Feature: IP69K waterproof rating supports use in demanding environments.
• Feature: Stainless steel construction delivers a durable metal switch surface.
• Feature: Included 1-foot lead and color-coded contacts simplify installation.
• Feature: Rated for 20 amps at 12 or 24 volts DC.

Product Details:

• Brand: Bluewater
• Part Number: 9059-3114-1
• Switch Type: 22mm push button, OFF/ON/ON
• Function: Nav/Anc
• LED Indication: Blue/green off or first-on position; red second-on position
• Rear Mark: White dot
• Switch Rating: 20A at 12 or 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles
• Installation: Requires a 22mm mounting hole in material up to 6mm thick
• Lead Length: 1 foot

Choose the Bluewater 22mm Push Button Switch for a durable, clearly illuminated Nav/Anc control with a clean marine-dashboard appearance.
