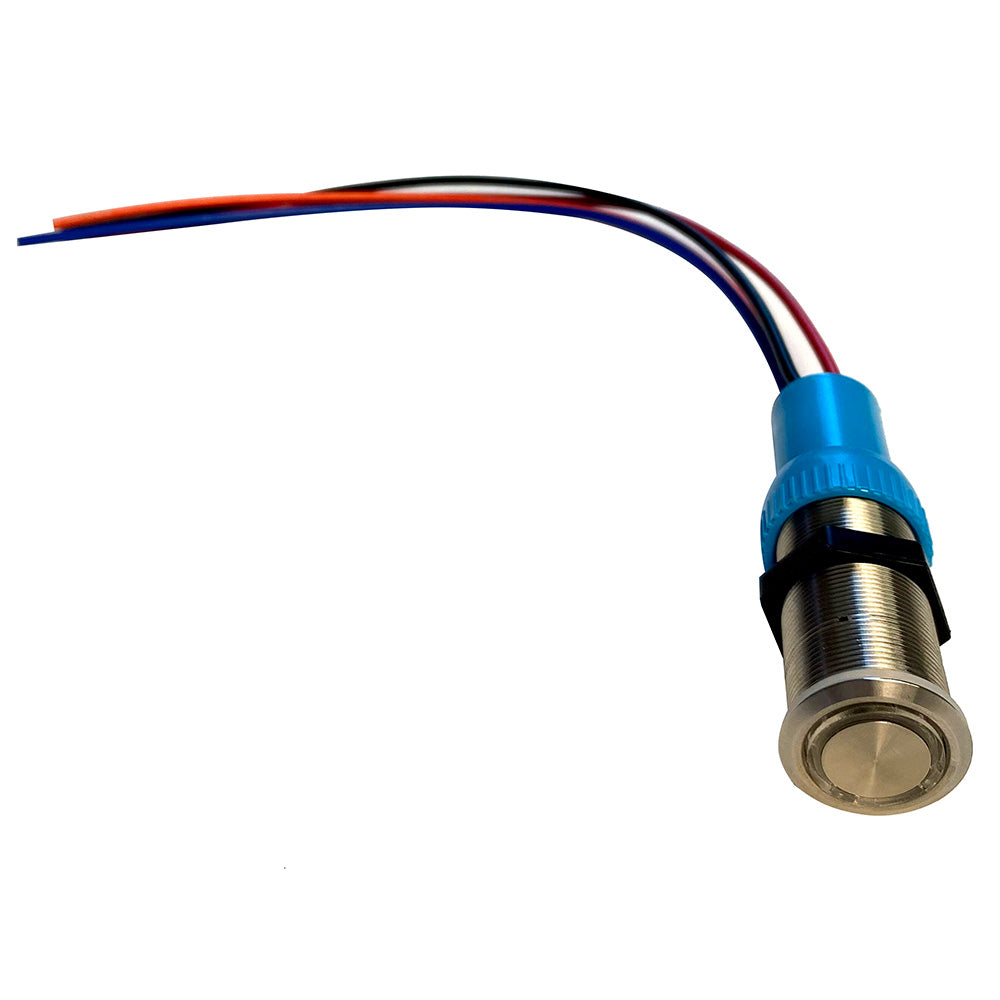

Bluewater 22mm Push Button Switch, Off/On Contact, Blue/Red LED, 1-Foot Lead, Part 9059-1113-1

22mm Push Button Switch - Off/On Contact - Blue/Red LED - 1 Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has a standard Off/On contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 1 ft. lead
• 4-wire harness
• Rear Mark Page: Red dot

Specifications:

• Function: Off-On (standard contact)
• Off/On: Blue/red
• Switch Rating: 20A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

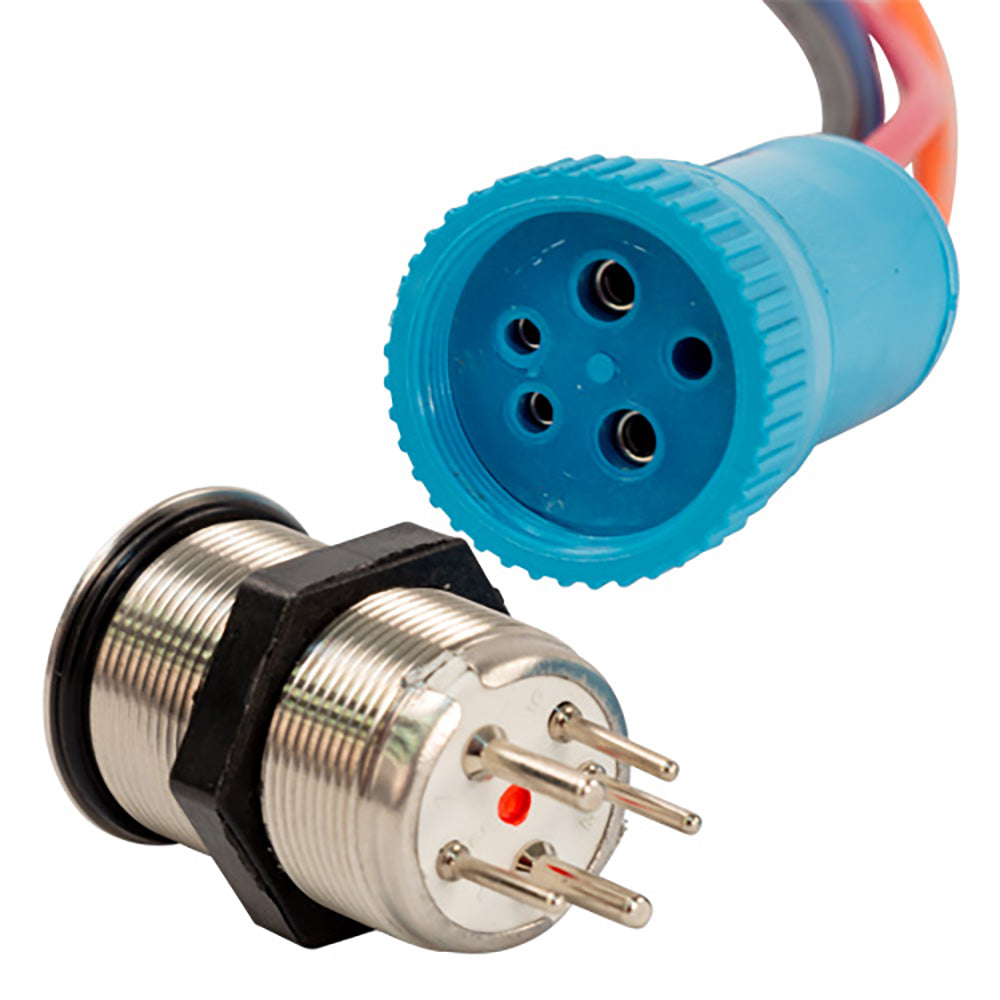

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Bluewater 22mm Push Button Switch adds a clean, modern control to dashboards, panels, and other applications requiring a standard off/on contact. Designed with a stainless-steel plated metal button, this switch combines a durable appearance with clear visual status indication through dual-color LED illumination.

The switch features blue LED backlighting when the function is off and changes to red when the function is on, helping users identify operating status at a glance, including in low-light conditions. Its body design and included gasket provide an IP69K waterproof rating, making it suitable for installations where protection from water and cleaning exposure is important. The included 1-foot lead and 4-wire harness support a straightforward installation process.

Installation requires drilling a 22mm hole into material up to 6mm thick. Connect the three color-coded button contacts, then connect the two LED contacts. The rear mark page is identified by a red dot for installation reference. With a 20A/12–24VDC switch rating and specified mechanical and electrical life cycles, the Bluewater 9059-1113-1 is a practical choice for dashboard controls, vehicle panels, equipment, and other 12- or 24-volt applications requiring illuminated off/on switching.

Key Features:

• Dual-color LED indication: Blue illumination shows the switch is off, while red illumination identifies the on position.
• IP69K waterproof rating: The stainless-steel switch body and included gasket help protect the installation from water exposure.
• Standard off/on contact: Provides straightforward switching for compatible 12- or 24-volt DC applications.
• Ready-to-install lead: Includes a 1-foot lead and 4-wire harness for convenient wiring.
• Durable switching design: Rated for 50,000 mechanical cycles and 10,000 electrical cycles.

Product Details:

• Brand: Bluewater
• Part number: 9059-1113-1
• Switch type: Push button
• Function: Off-on, standard contact
• LED colors: Blue/red
• Switch rating: 20A, 12–24VDC
• Material: Stainless steel
• Lead length: 1 foot
• Harness: 4-wire
• Installation hole: 22mm
• Maximum material thickness: 6mm
• Mechanical life: 50,000 cycles
• Electrical life: 10,000 cycles
• Rear mark: Red dot

Choose the Bluewater 9059-1113-1 for clear illuminated status, practical 12- or 24-volt switching, and a professional dashboard or panel installation.
